High Performance 3051S Pressure Temperature Transmitter Simplified Installation

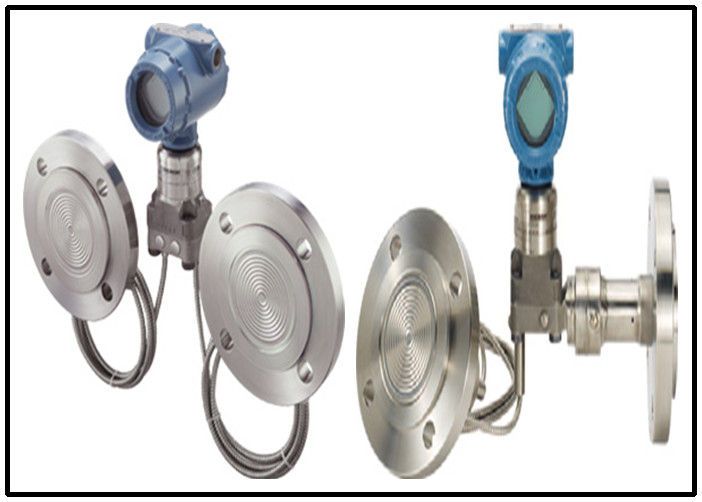

Large Image :  High Performance 3051S Pressure Temperature Transmitter Simplified Installation

Product Details:

Place of Origin: Singapore
Brand Name: Emerson-Rosemount
Certification: CO
Model Number: Rosemount 3051SAL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 600 USD
Packaging Details: New Original Box
Delivery Time: 1-2 week
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Category: Rosemount 3051SAL Level Transmitter Type: Pressure Transmitter
Installation: Simplified Maintenance: Reduced
Highlight:

high temperature differential pressure transmitter

,

absolute pressure transmitter

High-Performance 3051S Pressure Transmitter Rosemount 3051SAL Level Transmitter




All of Rosemount orders will be ordered acorring to your requirements!




Rosemount 3051S Electronic Remote Sensor (ERS) System


The 3051S ERS System is a flexible, 2-wire 4-20 mA HART architecture that calculates differential pressure (DP) electronically using two pressure sensors that are linked together with a non-proprietary electrical wire.



Ideal applications for the 3051S ERS System include tall vessels and distillation columns that have traditionally required long lengths of capillary or impulse piping.



When used in these types of applications, the 3051S ERS System can deliver:


 More accurate and repeatable DP measurements
 Faster time response
 Simplified installations
 Reduced maintenance




How to order


1. Choose two 3051S ERS transmitter models. These may be any combination of 3051SAM and 3051SAL models.


2. Decide which model will be the ERS Primary (4-20 mA loop termination and optional LCD display) and which will be the ERS Secondary. This will be specified by the “Configuration Type” code in each model number.


3. Specify two full model numbers per the desired configuration.





Rosemount 3051SAL Scalable Level Transmitter​ Ordering Information(A part of them)


  The Standard offering represents the most common options. The starred options should be selected for best delivery.
  The Expanded offering is subject to additional delivery lead time.






Continue specifying a completed model number by choosing a remote seal type below:(A part)





If you need more order information , we can send you the complete datasheet.



Diaphragm seals for 3051SAL


Flush Flanged (FF) Seal
 Most common seal
 Good for use in general applications
 Easy installation on flanged connections ranging from 2-in. (DN 50) to 4-in. (DN 100)



Remote Flanged (RF) Seal
 Designed to improve performance on smaller process connections
 Easy installation on flanged connections ranging from 1-in. to 1.5-in. (DN 25– DN 40)
 Lower housing/flushing ring required.



RC Ring Type Joint (RTJ) Flanged Seal



Remote Threaded (RT) Seal
 For use with threaded process connections ( 1 / 4 -18 to 1-11.5 NPT)
 Rated for use in high-pressure applications (up to 2500 PSI)
 Optional flushing connections available



If you need other informations, pls contact us.




Certifications:

1. Certificate of Origin

2. Calibration Certificate

3. Material Traceability Certification





 Good Service in WTL:


> We offer high quality, fast delivery, competitive price for Rosemount.


> Please send your RFQ to get the latest price.


> Normally, we will ship the items in 1-2 weeks after receive the payment.


> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.


> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.



 Liability:


WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
