Product Details:
Payment & Shipping Terms:
|
| Category: | Transmitter | Type: | Pressure Transmitter |
|---|---|---|---|
| Rangedown: | 50:1 | Measurement Range: | Up To 4,000 Psig (275,8 Bar) |
| Communication Protocol: | 4-20 MA HART | Diagnostics: | Basic |
| High Light: | high temperature differential pressure transmitter,absolute pressure transmitter |
||

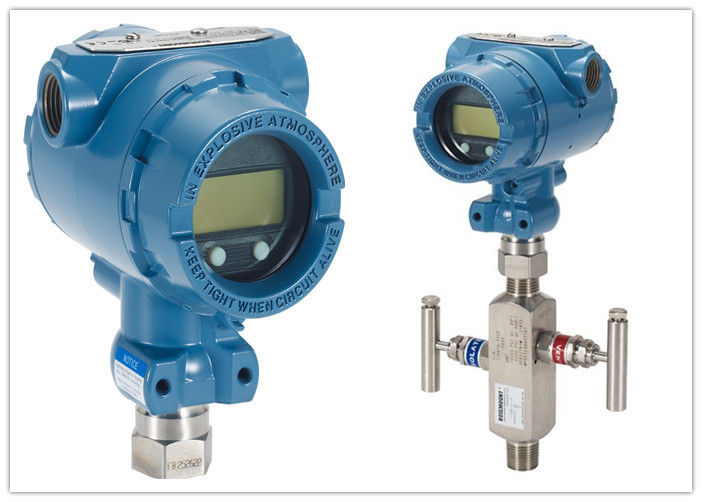

Emerson Transmitter Rosemount 2088 Gage and Absolute Pressure Transmitter
All of Rosemount orders will be ordered acorring to your requirements!
Quick Details:
Performance of 0.065% with High Accuracy option
Lightweight, compact design for cost-effective installation
Protocols available include 4-20 mA HART ® and 1-5 Vdc HART Low Power
Absolute and gage pressure ranges up to 4,000 psi (276 bar)
Rangeability of 50:1
| Warranty | Up to 5-year limited warranty |
| Rangedown | 50:1 |
| Measurement Range |
Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute |
| Output | Differential pressure, scaled variable |
| Communication Protocol | 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NSF, NACE®, hazardous location, see full specs for complete list of certifications |
With the Rosemount 2088 Gage and Absolute Pressure Transmitter, you can keep on schedule with a quick and easy-to-install solution. This transmitter features a Local Operator Interface (LOI) that has easy-to-use menus and built-in configuration buttons, so you can commission the device on the spot without complicated tools. This pressure transmitter is also available with manifolds and remote seals.
Proven reliability for gage and absolute applications
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power
Fully configurable LCD display to display process variable, percent of range, and diagnostic messages
Lightweight, compact design enables easy installation
Choice of Stainless Steel or Alloy C-276 wetted materials
Unlock the value of devices with the Smart Wireless THUM ™ Adapter
Gain access to field intelligence and improve quality, safety, availability, operations, and maintenance costs
Remotely manage devices and monitor health
Enable new wireless measurement points
Utilize existing loop power
Proven, reliable, and innovative DP Level technologies
Connect to virtually any process with a comprehensive offering of process connections, fill fluids, direct mount or capillary connections and materials
Quantify and optimize total system performance with QZ option Instrument manifolds – quality, convenient, and easy
Designed and engineered for optimal performance with Rosemount transmitters
Save installation time and money with factory assembly
Offers a variety of styles, materials, and configurations
Rosemount 2088 Pressure Transmitter Ordering Information ( A part )
Dimensional Drawings ( A part )
If you need more order information , we can send you the complete datasheet.
Certifications:
1. Certificate of Origin
2. Calibration Certificate
3. Material Traceability Certification
