Category: | Transmitter | Type: | Tempreture Transmitter |
---|---|---|---|
Input: | Dual And Single Sensor | Output Signal: | 4-20 MA /HART Protocol |
Housing: | Dual-compartment Field Mount | Display/Interface: | Large LCD Display With Percent Range Graph And Buttons/switches |
High Light: | differential pressure flow transmitter,high temperature differential pressure transmitter |
Rosemount 644 Temperature Transmitter Hart protocol Transmitter Sensor
All of Rosemount orders will be ordered according to your requirements!
1. Functional specifications
Input | Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms) |
Output Signal | 4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol |
Housing | Dual-compartment field mount |
Display/Interface | Large LCD display with percent range graph and buttons/switches |
Diagnostics | Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking |
Calibration Options | Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications |
1. Industry-leading temperature transmitter delivers unmatched field reliability and innovative process measurement solutions
Superior accuracy and stability
Dual and single sensor capability with universal sensor inputs (RTD, T/C,mV, ohms)
Comprehensive sensor and process diagnostics offering
SIL3 Capable: IEC 61508 certified by an accredited 3rd party agency for use in safety instrumented systems up to SIL 3 [Minimum requirement of single use (1oo1) for SIL 2 and redundant use (1oo2) for SIL 3]
Dual-compartment housing
Large LCD display
4-20 mA /HART ® with Selectable Revisions (5 and 7)
F OUNDATION ™ fieldbus, compliant to ITK 6.0 and NE107 standards
2. Improve efficiency with best-in-class product specifications and capabilities
Reduce maintenance and improve performance with industry leading accuracy and stability
Improve measurement accuracy by 75% with Transmitter-Sensor Matching
Ensure process health with system alerts and easy to use Device Dashboards
Easily check device status and values on local LCD display with large percent range graph
Achieve high reliability and installation ease with the industry's most rugged dual compartment design
3. Optimize measurement reliability with diagnostics designed for any protocol on any host system
Thermocouple Degradation Diagnostic monitors the health of a thermocouple loop, enabling preventative maintenance
Minimum and Maximum Temperature Tracking tracks and records temperature extremes of the process sensors and the ambient environment
Sensor Drift Alert detects sensor drift and alerts the user
The Hot Backup ™ feature provides temperature measurement redundancy
4. Explore the benefits of a complete point solution from Rosemount Temperature
An “Assemble To Sensor” option enables Emerson to provide a complete point temperature solution, delivering an installation-ready transmitter and sensor assembly
Emerson offers a selection of RTDs, thermocouples, and thermowells that bring superior durability and Rosemount reliability to temperature sensing, complementing the Rosemount Transmitter portfolio
5. Experience global consistency and local support from numerous worldwide Rosemount Temperature manufacturing sites
World-class manufacturing provides globally consistent product from every factory and the capacity to fulfill the needs of any project, large or small
Experienced Instrumentation Consultants help select the right product for any temperature application and advise on best installation practices
An extensive global network of Emerson service and support personnel can be on-site when and where they are needed
Description:

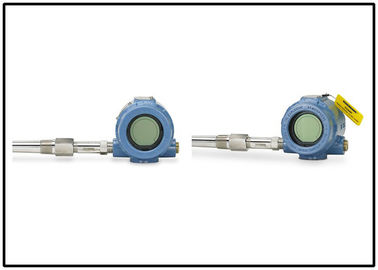

Rosemount™ 3144P Temperature Transmitter

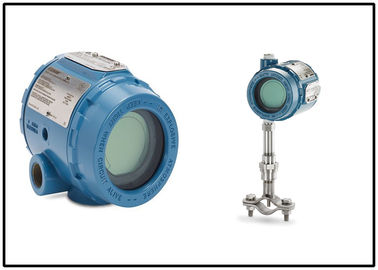

The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.
Rosemount 3144P Temperature Transmitter Ordering Information (A Part)
Dimensional drawings ( A part )
If you need more order information , we can send you the complete datasheet.
Certifications:
1.Certificate of Origin
2.Calibration Certificate
3.Material Traceability Certification
Rosemount Temperature Transmitter Application:
Rosemount items we sold before:
Good Service in WTL:
>We offer high quality, fast delivery, competitive price for Rosemount.
>Please send your RFQ to get the latest price.
>Normally, we will ship the items in 1-2 weeks after receive the payment.
>We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
>We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
