Head Mount Rosemount 248 Temperature Transmitter With 5 Point Calibration Sensor

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

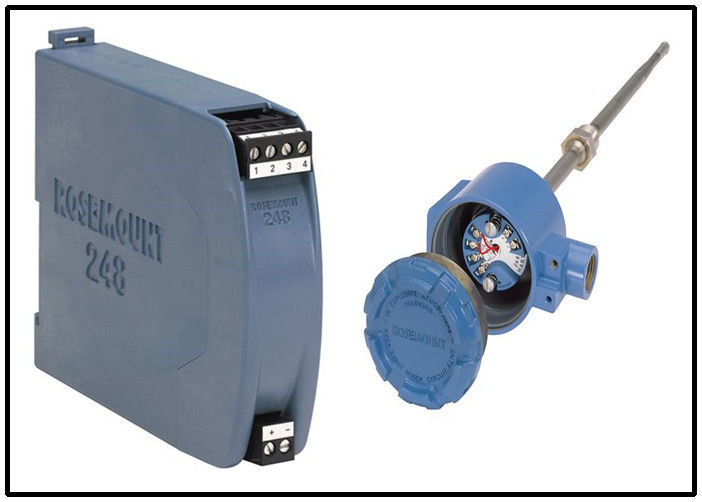

Head Mount Rosemount 248 Temperature Transmitter With 5 Point Calibration Sensor

Large Image :  Head Mount Rosemount 248 Temperature Transmitter With 5 Point Calibration Sensor

Product Details:

Place of Origin: Singapore
Brand Name: Emerson-Rosemount
Certification: CE
Model Number: 248

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 600 USD
Packaging Details: New Original Box
Delivery Time: 1-2 week
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Category: Transmitter Type: Temperature Transmitter
Input: Single Sensor Capability Output Signal: 4-20 MA /HART Protocol
Housing: DIN B Head Mount Or Rail Mount Calibration Options: 5-point Calibration
High Light:

high temperature differential pressure transmitter

,

absolute pressure transmitter


Rosemount 248 Head Mount Temperature Transmitter 5-point calibration Sensor


All of Rosemount orders will be ordered according to your requirements!



Specifications:




InputSingle sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
Output Signal4-20 mA /HART® protocol
HousingDIN B head mount or rail mount
DiagnosticsBasic diagnostics including open/short sensor diagnostics
Calibration Options5-point calibration
Certifications/ApprovalsHazardous location, marine type, see full specs for complete list of certifications




Description:



1. Rosemount™ 248 Temperature Transmitter



An industry-standard solution, the Rosemount 248 Temperature Transmitter delivers consistent and reliable performance for process environments. Engineered to meet requirements for common single point temperature measurement applications, its durable design withstands a wide range of process environments. For application flexibility, this temperature transmitter is available in a rail or head mount configuration as well as a variety of housing options.



2. Rosemount™ 248 Wireless Temperature Transmitter



The Rosemount 248 Wireless Temperature Transmitter is a cost-effective and reliable wireless solution for process monitoring. Coupled with the self-organizing network of WirelessHART® technology, this transmitter delivers single point temperature measurement data, even in remote locations. The internal antenna of this wireless transmitter is compact and lightweight and the engineered polymer housing provides superior resistance to process environments.




Features:

  • Standard transmitter meets common single point temperature measurement application requirements

  • Housing construction provides superior resistance to many process environments

  • Available in rail or head mount configuration for application flexibility

  • One-year stability rating reduces maintenance costs

  • Open/short sensor diagnostics help detect issues in the sensor loop to ensure reliable performance

  • Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting


Two Types of Rosemount 248:


Rosemount 248 Head Mount Temperature Transmitter
The Rosemount 248 Temperature Transmitter has a standard transmitter design that provides flexible and reliable performance in process environments.
Transmitter features include:
 HART/4-20 mA Communication Protocol
 DIN B style head mount and rail mount transmitter types
 Variety of DIN B enclosure options
 Sanitary Connection Heads available (Option Code F and S)
 3-Point Calibration Certificate (Option Code Q4)
 Assemble to Sensor options (Option Code XA)'


Rosemount 248R Rail Mount Transmitter
The Rosemount 248 Temperature Transmitter has a standard transmitter design that provides flexible and reliable performance in process environments.
Transmitter features include:
 HART/4-20 mA communication protocol
 Rail mount transmitter type
 3-Point Calibration Certificate (Option Code Q4)
 Custom Configuration of Software Parameters (Option Code C1)

Rosemount 248 Head Mount Temperature Transmitter​ Ordering Information (A Part)

Rosemount 248R Rail Mount Transmitter Ordering Information (A Part)



Dimensional drawings​ ( A part )




If you need more order information , we can send you the complete datasheet.

Certifications:

1.Certificate of Origin

2.Calibration Certificate

3.Material Traceability Certification


Rosemount Temperature Transmitter Application:




Rosemount items we sold before:



 Good Service in WTL:
>We offer high quality, fast delivery, competitive price for Rosemount Transmitter and Flow Meter.
>Please send your RFQ to get the latest price.
>Normally, we will ship the items in 1-2 weeks after receive the payment.
>We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
>We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
