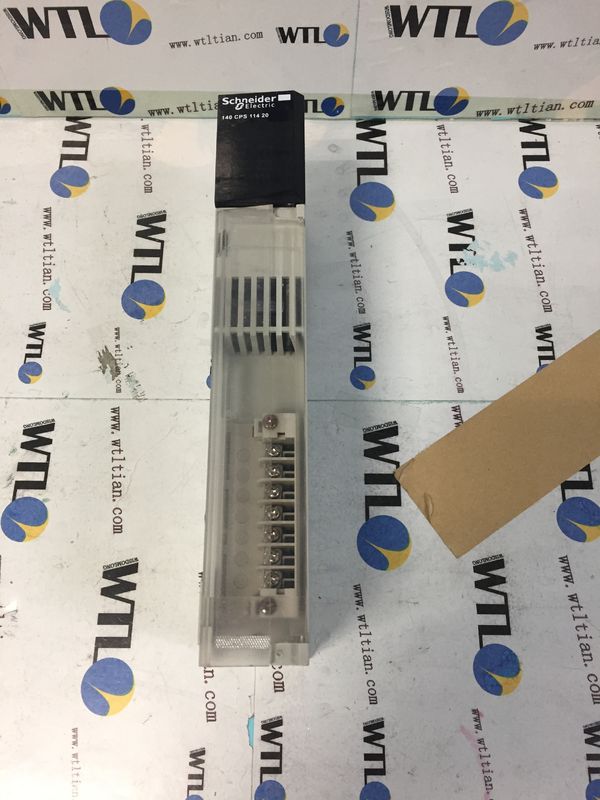

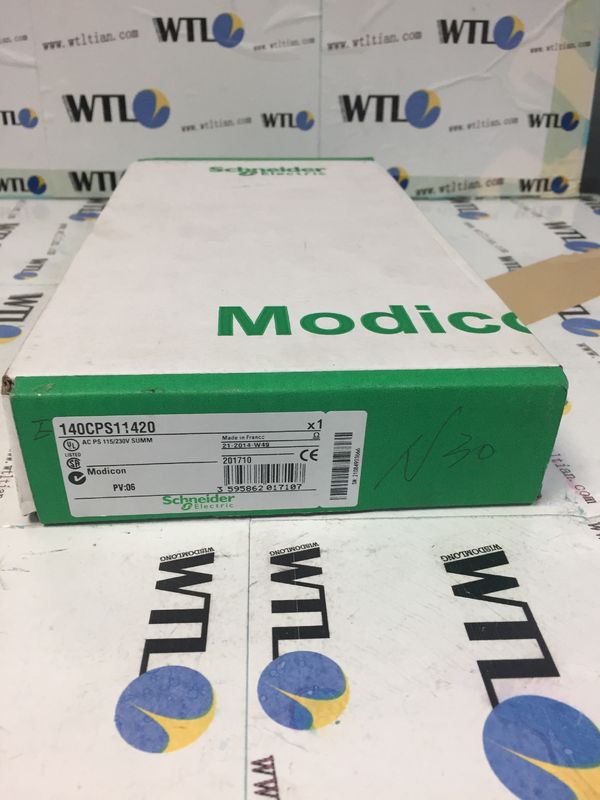

Schneider 140CPS11420 Quantum power supply 115 230 VAC can be added 11Amp
Quick details:
- SCHNEIDER ELECTRIC
- MODICON
- 140-CPS-114-20
- 140CPS11420
- PWR SUP MOD 2AMP 115-230V 50/60HZOBSOLETE 12-01-18
- AVAILABLE
- New one with one year warranty and used one with six months warranty
- Weight: 1.61 lbs
More Info on the 140CPS11420:
Power Supply Module Modicon Quantum - 115 V/230 V AC - Summable Or Standalone
Quantum | 140CPS11420 | Modicon | 140 CPS 114 20 | AC 115/230VAC SUMM
Specifications:
| Manufacturer: |
Modicon Quantum |
| Series: |
Power Supplies |
| Weight: |
2 lb |
| Power supply type: |
Summable or standalone |
| Input voltage: |
230 V AC 170...276 V |
| |
115 V AC 93...132 V 47...63 Hz |
| Input current: |
750 mA 230 V |
| |
1300 mA 115 V |
| Inrush current: |
38 A 115 V |
| |
19 A 230 V |
| Rated power in VA: |
130 VA |
| Associated fuse rating: |
2 A slow-blow |
| Harmonic distortion: |
<= 10 % of fundamental rms value |
| Output voltage: |
5.1 V DC |
| Power supply output current: |
20 A 60 °C summable |
| |
11 A 60 °C standalone |
| Output overvoltage protection: |
Internal |
| Output overload protection: |
Internal |
| Power dissipation: |
6 + (1.5 x Iout) where Iout is in A |
| Alarm output: |
1 NC 6 A 220 V power supply fault |
| Local signalling: |
1 LED green power (PWR OK) |
| Marking: |
CE |
| Module format: |
Standard |
