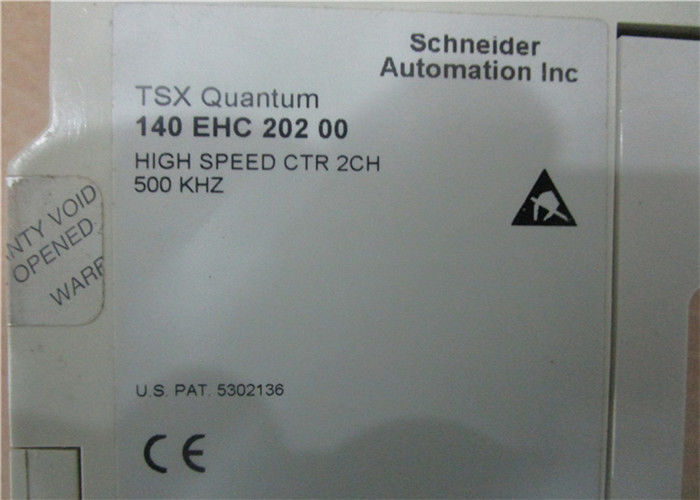

140EHC20200 Schneider High Speed Counting Module 24 VDC 500KHz 2 Channels
Main
| range of product |
Modicon Quantum automation platform
|
|
| product or component type |
High-speed counter module
|
|
| number of channels |
2
|
|
Complementary
| addressing requirement |
6 output words
6 input words
|
|
| data format |
2147483647 dec 32 bits
65535 dec 16 bits
|
|
| counting input type |
Incremental or quadrature
|
|
| counting frequency |
500000 Hz
|
|
| discrete input voltage |
< 30 V
|
|
| operating mode |
Incremental or quadrature discrete input
|
|
| input resistance |
10 kOhm discrete input
|
|
| operating threshold |
0...11 V single ended mode 24 V DC at state off
0...2 V single ended mode 5 V DC at state on
0 V single ended mode 12 V DC at state on
13...24 V single ended mode 24 V DC at state on
2...7 V single ended mode 12 V DC at state off
>= 1.8 V differential mode
3.5...5 V single ended mode 5 V DC at state off
|
|
| discrete output number |
4
|
|
| discrete output type |
Field Effect Transistor (FET)
|
|
| discrete output voltage |
0 V switch off DC
0.4 V switch on DC
|
|
| load current |
0.5 A
|
|
| maximum leakage current |
0.4 mA state off
|
|
| maximum voltage drop |
<0.4 V state on
|
|
| protection type |
36 V transorb for discrete output
|
|
| isolation between channels and bus |
1780 Vrms for 60 s
|
|
| fault type |
Loss of output field power
|
|
| output short-circuit protection |
Blown fuse 2.5 A
|
|
| power dissipation |
4 + (0.4 x total module load current)
|
|
| bus current requirement |
650 mA
|
|
| external power requirement |
19.2...30 V
|
|
| rack type |
Local
Remote
Distributed
|
|
| local signalling |
2 LEDschannel status:
|
|
| marking |
CE
|
|
| current consumption |
<= 1050 mA at 24 V DC external power supply
|
|
| module format |
Standard
|
|
Environment
| resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
|
|
| resistance to electromagnetic fields |
10 V/m 80…1000 MHz conforming to IEC 801-3
|
|
| ambient air temperature for operation |
0…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
95 % without condensation
|
|
| operating altitude |
<= 5000 m
|
|
| standards |
UL 508
|
|
| product certifications |
C-Tick.1
CSA No 142
FM Class 1 Division 2
UL
|
|
Offer Sustainability
| Sustainable offer status |
Green Premium product
|
|
| REACh Regulation |
REACh Declaration
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
|
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| Circularity Profile |
End of Life Information
|
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
