Integral Mount Pressure Temperature Transmitter micro motion transmitter 1700 2700

Large Image :  Integral Mount Pressure Temperature Transmitter micro motion transmitter 1700 2700

Product Details:

Place of Origin: Singapore
Brand Name: Emerson-Rosemount
Certification: CE
Model Number: 1700 / 2700

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 4500 USD
Packaging Details: New Original Box
Delivery Time: 1-2 week
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Category: Transmitter Type: Field And Integral Mount Transmitter
Housing: Polyurethane-painted Weight: 3-4 Kg
High Light:

differential pressure flow transmitter

,

absolute pressure transmitter



Rosemount Micro Motion 1700 and 2700 Field and Integral Mount Transmitter


All of Rosemount orders will be ordered according to your requirements!




Functional Specifications:

Housing Polyurethane-painted cast aluminum or CF3M stainless steel; NEMA 4X (IP66)

Weight

Painted aluminum, 4-wire remote:

  • with display: 8 lb (4 kg)
  • without display: 7 lb (3kg)
Mounting Integral or remote mounting options (stainless steel versions are always remote mounted)
May be remotely connected to any 4-wire or 9-wire Micro Motion sensor
View product data sheet for full details.
Available Outputs 1700: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
2700:
Analog: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
View product data sheet for full details.





Physical specifications:



Model 1700 and Model 2700





Description:

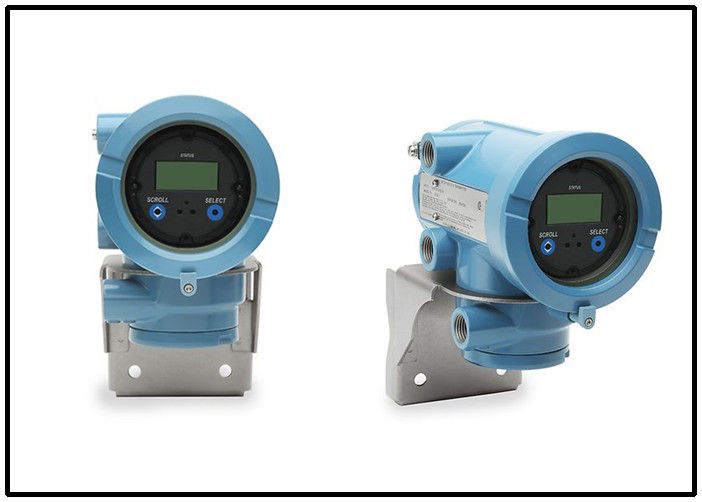

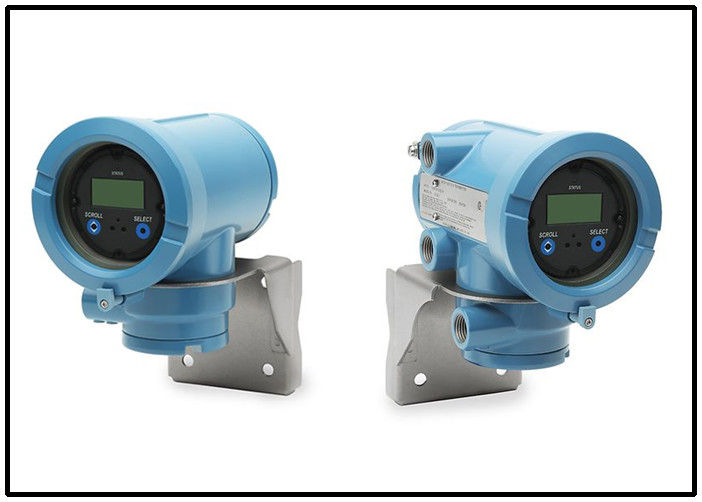

Micro Motion 1700 and 2700 Field and Integral Mount Transmitter

Powered by MVD Technology, these versatile field-mount transmitters are built with an advanced architecture and provide a wide variety of I / O and application flexibilities, making them the top choice for compact integral mounting.


Features:

1. Maximize flexibility with integral or remote mounting

2. Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing

3. Lower wiring costs and install easily and quickly

4. Eliminate the need for additional instruments with concentration and net-flow measurement

5. Rely on custody-transfer approval and certification for SIL2 and SIL3

6. Verify sensor health in-line, with the process running and without secondary references with true in-situ verification

7. Gain access to additional diagnostics and process information without added wiring costs with WirelessHART

8. Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface




Ordering Information



Product Code Structure for Model 1700/2700





Model 1700





Model 2700





Dimensional drawings​ ( A part )







If you need more order information , we can send you the complete datasheet.



Certifications:

1.Certificate of Origin

2.Calibration Certificate

3.Material Traceability Certification
