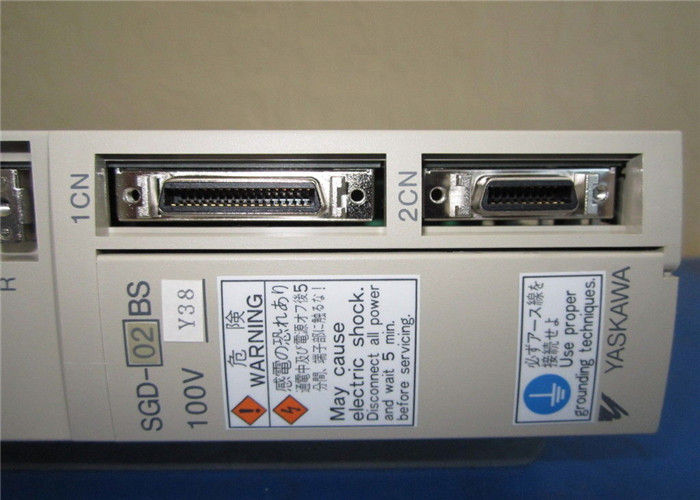

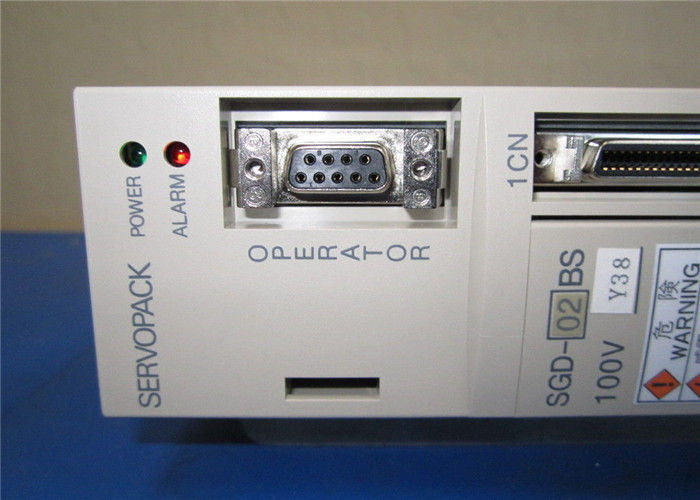

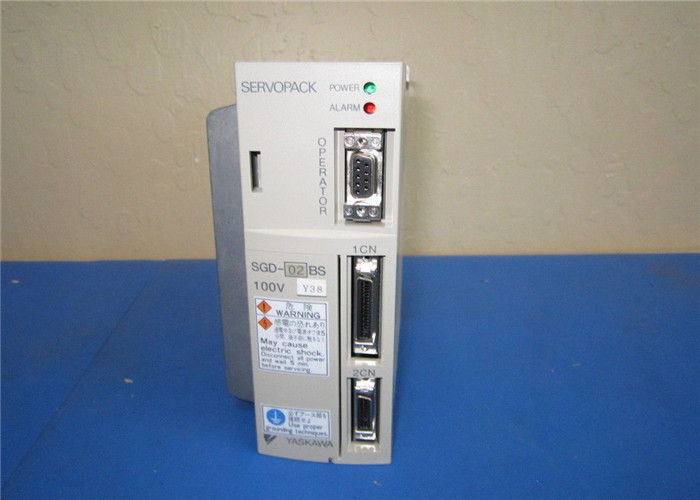

Electric Industrial Servo Drives Yaskawa Servo Controller SGD 02BSY38

Large Image :  Electric Industrial Servo Drives Yaskawa Servo Controller SGD 02BSY38

Product Details:

Brand Name: Yaskawa
Model Number: SGD-02BSY38

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable

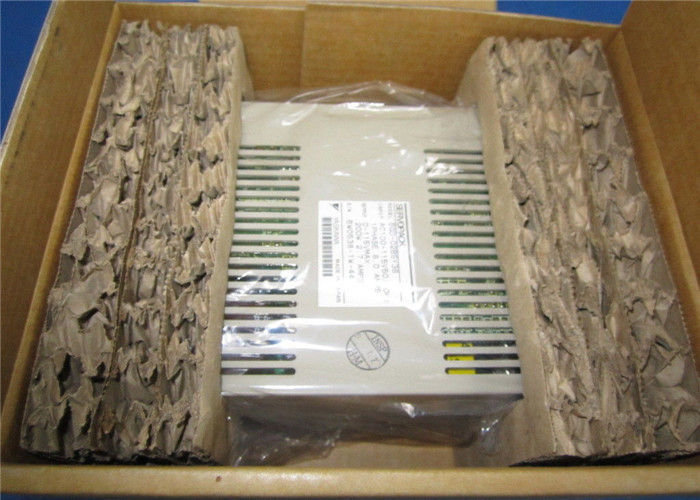

Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: TT West Union
Supply Ability: 100
Detailed Product Description
Place Of Origin: Japan Brand: Yaskawa
Model: SGD-02BP Series: SGD
Onput: 0-115V Voltage Product Type: AC
Input: 100V Power: 200W
High Light:

ac servo pack

,

ac servo drive

Industrial Servo Drive Yaskawa Electric Servopack Servo Controller SGD-02BSY38​




QUICK DETAILS

  1. Power: 200W

  2. Output:0-115V
  3. Input : 100V



DESCRIPTION

  • Industrial Servo Drive
  • ServoPack
  • Servo Controller

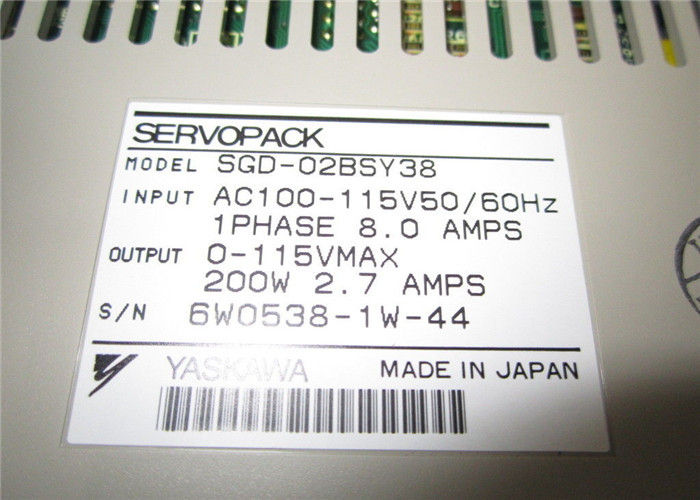

SEPCIFICATIONS

Brand Name Yaskawa
Model Number SGD-02BSY38​
Place of Origin Japan
Input 100V
MPS 8.0
Output 0-115V
MPS 2.7
Power 400W







Controlled system



In the previous figure, the controlled system is a movable table for which the position or speed is controlled. The movable table is driven by a ball screw and is connected to the servomotor via gears. So, the drive system consists of:





Gears + Ball Screw



This drive system is most commonly used because the power transmission ratio (gear ratio) can be freely set to ensure high positioning accuracy. However, play in the gears must be minimized.

The following drive system is also possible when the controlled system is a movable table:





Coupling + Ball Screw



When the power transmission ratio is 1 : 1, a coupling is useful because it has no play. This drive system is widely used for machining tools. Timing Belt + Trapezoidal Screw Thread A timing belt is a coupling device that allows the power transmission ratio to be set freely and that has no play.



A trapezoidal screw thread does not provide excellent positioning accuracy, so can be treated as a minor coupling device.



To develop an excellent servo system, it is important to select a rigid drive system that has no play.



Configure the controlled system by using an appropriate drive system for the control purpose.





Drive system



Also called a drive mechanism.

A drive system connects an actuator (such as a servomotor) to a controlled system and serves as a mechanical control component that transmits torque to the controlled system, orientates the controlled system, and converts motion from rotation to linear motion and vice versa.
