OSA104 Servo Motor Encoder For Accurate Position Monitoring 0.3-7KW Power

Name: OSA104 Servo Motor Encoder For Accurate Position Monitoring 0.3-7KW Power
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: OSA104
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	OSA104

Detail Information

Place of Origin:

Japan

Brand Name:

Mitsubishi

Certification:

Model Number:

OSA104

Power:

0.3-7（KW)

Speed Response Frequency:

50（KHz）

Rated Voltage:

24（V）

Shaft Diameter:

6mm / 8mm / 10mm

Frequency:

1KHZ

Starting Torque:

≤ 0.01 Nm

Highlight:

High Light

Highlight:

rotary pulse encoder

absolute rotary encoder

Trading Information

Minimum Order Quantity:

Price:

negotiation

Packaging Details:

New Original Package

Delivery Time:

5-8DAYS

Payment Terms:

T/T, PAYPAL

Supply Ability:

100

Product Description

Mitsubishi Internal encoders for servo equipment OSA104 Servo Motor Encoder

OSA104 Description

The Mitsubishi OSA104 is an advanced optical distance sensor from the MELSEC iQ-R series, designed for high-precision, non-contact detection and measurement. It utilizes innovative time-of-flight (ToF) technology to accurately measure distance, presence, or position of objects, even under challenging environmental conditions such as varying surface colors, textures, or ambient light. This sensor is engineered for seamless integration into factory automation, robotics, and smart manufacturing systems, providing reliable data for process control, quality assurance, and logistics automation.

OSA104 Features

High-Precision ToF Technology: Delivers accurate and stable measurements independent of target object color, material, or ambient light interference.
Long Sensing Range: Capable of detecting objects at distances significantly greater than traditional photoelectric sensors.
High-Speed Response: Enables real-time detection for fast-moving processes and dynamic automation lines.
Multi-Point & Area Sensing: Can be configured for single-point distance measurement, multi-point monitoring, or area detection (presence within a defined zone).
Easy Setup & Calibration: Features intuitive parameter setting via software or teach-in functions, reducing commissioning time.
Robust Communication: Supports industrial network protocols like CC-Link IE Field Basic, Ethernet/IP, and PROFINET for easy PLC integration.
Compact & Durable Design: Built to withstand industrial environments with a high IP rating (e.g., IP67) for resistance to dust and water ingress.
Advanced Diagnostics: Built-in functions for monitoring device health, detection stability, and troubleshooting.

OSA104 Material & Applications

Materials: Features a rugged zinc die-cast or high-grade polymer housing. The optical window is made of scratch-resistant glass. Internal components include a precision infrared LED or laser emitter, a CMOS imaging sensor, and a dedicated processing unit.
Applications:
- Position Control: Pallet positioning, robot arm guidance, and assembly line alignment.
- Dimension Checking: Height verification, width measurement, and part profiling.
- Level Monitoring: Detecting fill levels in bins, hoppers, or containers.
- Object Presence & Counting: Ensuring part presence on conveyors, sorting systems, and packaging lines.
- Logistics & Warehousing: AGV navigation, parcel dimensioning, and automated storage/retrieval systems.

OSA104 Key Parameters

Parameter	Specification
Sensing Principle	Time-of-Flight (ToF)
Sensing Range	0.1 m to 4.0 m (Model Dependent)
Repeatability	±1 mm typical (varies with distance and conditions)
Light Source	Infrared LED (Class 1) or Laser (Class 2)
Response Time	≤ 1 ms (in high-speed mode)
Output Type	NPN/PNP transistor, Analog (0-10V / 4-20mA), Ethernet-based data
Communication Interface	CC-Link IE Field Basic, Ethernet/IP, PROFINET (Model Dependent)
Supply Voltage	24 V DC ±10%
Protection Degree	IP67 (standard housing)
Ambient Temperature Range	-25 °C to +55 °C (operation)
Ambient Light Immunity	Up to 10,000 lux (typical)
Connection	M12 Connector (4-pin or 8-pin)
Housing Material	Zinc die-cast / Reinforced Polymer

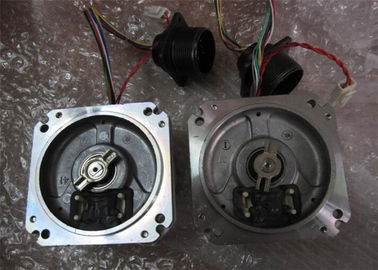

OSA104 Servo Motor Encoder For Accurate Position Monitoring 0.3-7KW Power 0

Frequently Asked Questions:

1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.We offer one year warranty for New items,6 months warranty for Used items.

2. Q: Could you provide technology support?
A: We're in this field many year. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

3. Q: Do you keep goods in stock or only trading?
A: We have large warehouse for goods and keeping lots of goods in warehouse, so we could delivery the items in short lead time.

Our advantage Products:

【Honeywell】Module DCS / PLC

【Emerson】DeltaV Module / Servo Motor

【ABB】Input Output Module

【AB】Module / Touch Screen

【Rosemount】Pressure and Temperature Transmitter

【Yokogawa】Pressure Transmitter

【Yaskawa】Servo Drive / Servo Motor

【Mitsubishi】Servo Drive / Servo Motor

【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive

(Modicon,SMC,SICK,NORGREN,Siemens etc.)

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.

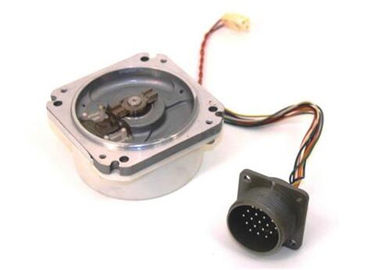

OSA104 Servo Motor Encoder For Accurate Position Monitoring 0.3-7KW Power 1
