Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Quantum Automation Platform | Country Of Origin: | France |
|---|---|---|---|

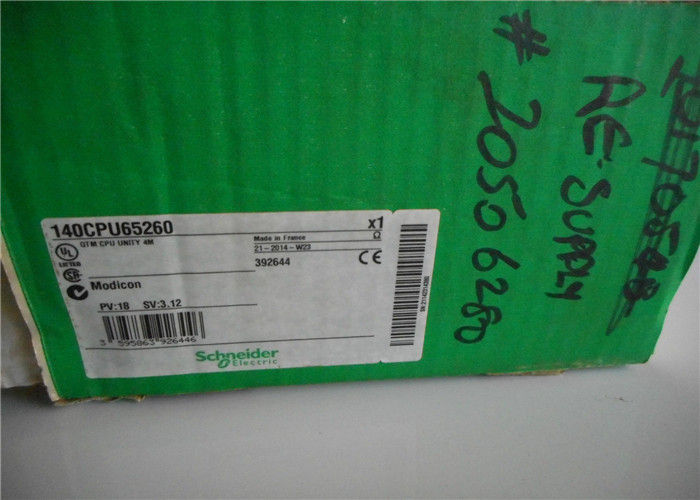

| PN: | 140CPU65260 | Condition: | Brand New |
| Type: | QUANTUM PROCESSOR | Brand: | Schneider |
| MOQ: | 1 PIECE | Warranty: | 12 Months |
| Highlight: | quantum unity processor,modicon quantum cpu |
||
Quick details:

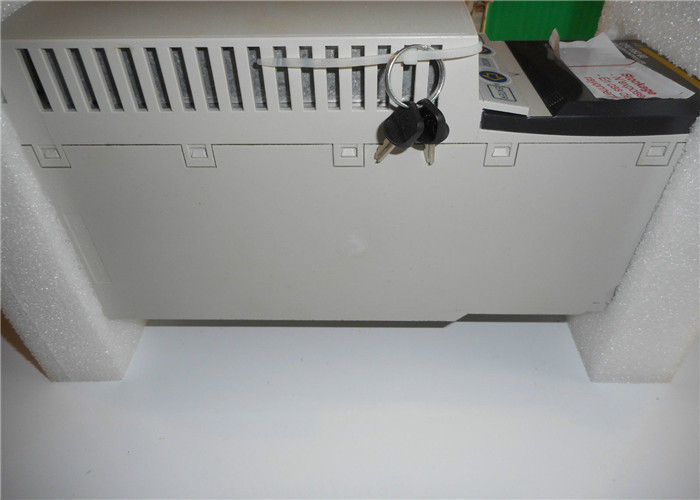

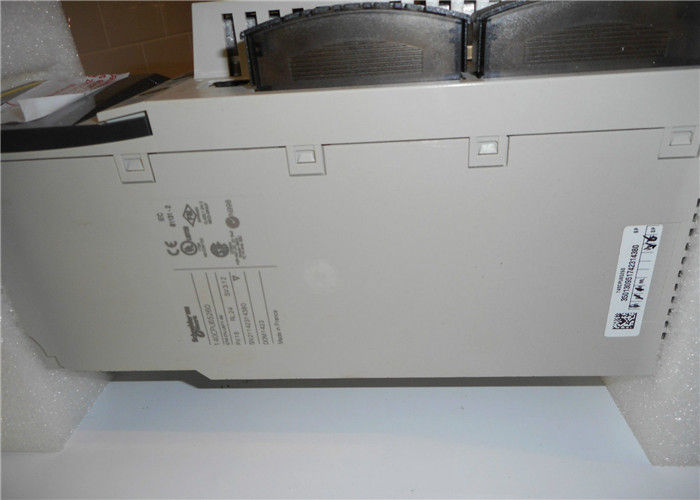

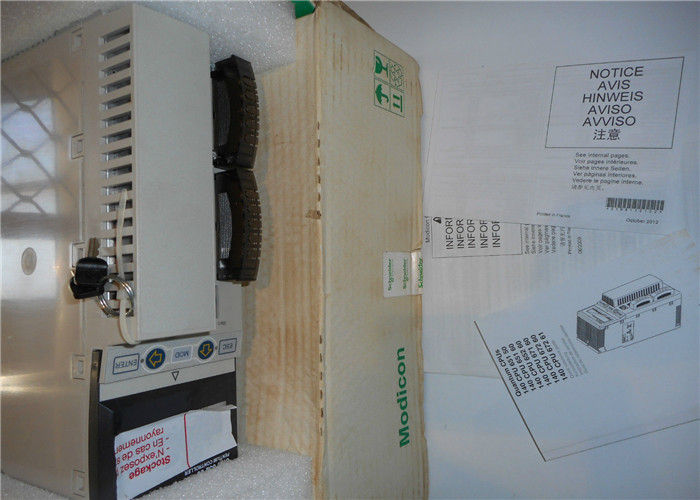

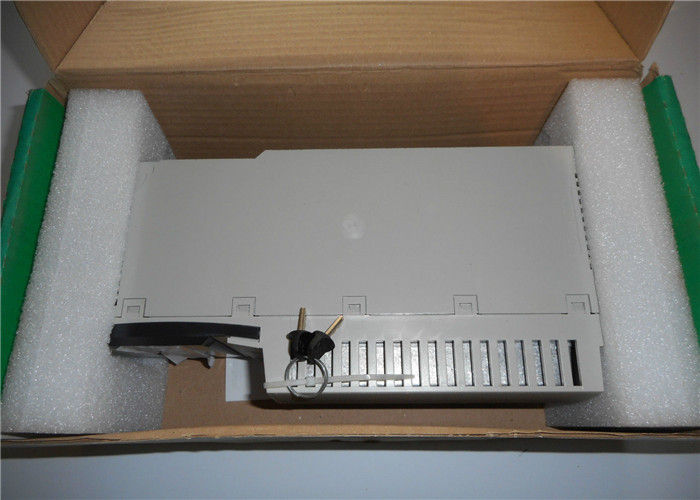

Unity Processor Modicon Quantum - 3072 Kb - 266 Mhz
Quantum | 140CPU65260 | Modicon | 140 CPU 652 60 | Processor UNITY W/ 4096/7168K
| clock frequency |
266 MHz
|
|
|---|---|---|
| number of slots |
10
2 4 6 16 |
|
| number of racks |
2 - local rack(s)
|
|
| number of distributed I/O station |
63 station(s) - 1 rack(s) - 1 Modbus Plus network(s)
|
|
| number of remote I/O station |
31 - 2 S908 remote I/O rack(s)
31 - 2 ethernet Quantum remote I/O rack(s) 31 - 2 ethernet X80 remote I/O rack(s) |
|
| discrete I/O number |
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
31744 inputs, 31744 outputs - S908 remote I/O 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local |
|
| analogue I/O number |
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O 500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - remote |
|
| application specific I/O |
High-speed interrupt inputs
Serial link Counter Accurate time stamping |
|
| communication service |
Ethernet router
|
|
| number of optional modules |
6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
|
|
| maximum number of connections |
1 ( USB)
2 ( AS-Interface) - distributed 4 ( AS-Interface) - remote 6 ( Ethernet TCP/IP) - local 6 ( Modbus Plus) - local 6 ( Profibus DP) - local 1 ( Modbus) - RS232/485 Modbus/ASCII |
|
| integrated connection type |
1 Modbus Plus with
1 Ethernet TCP/IP with 1 Modbus with 1 USB with |
|
| checks |
Process control
|
|
| memory description |
Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card Internal RAM 3072 kB |
|
| switch function |
Key switch memory port on/off
|
|
| application structure |
1 cyclic/periodic master task -
1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks - |
|
| number of instructions per ms |
10.28 Kinst/ms if 100 % Boolean
10.07 Kinst/ms if 65 % Boolean and 35 % numerical |
|
| system overhead |
1 ms - master task
0.2 ms - fast task |
|
| bus current requirement |
2760 mA
|
|
| local signalling |
1 LED green Ethernet activity (COM)
1 LED red Ethernet collision |
|

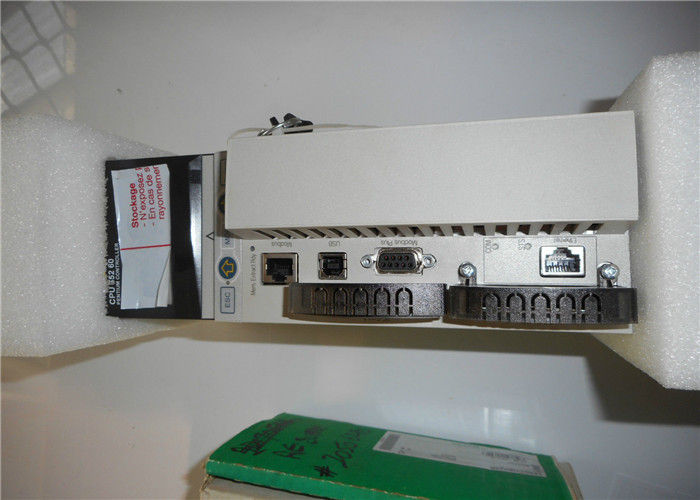

| electrical connection |
1 connector, connector type: RJ45 for connecting Ethernet network
1 connector, connector type: RJ45 for connecting Modbus bus 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network |
| product certifications |
CSA
CE UL GOST Misc (Marine) |
|
|---|---|---|
| standards |
HazLoc
|
| Category |
18150 - QUANTUM CONTROLLERS,HSBY,COMM.
|
|
|---|---|---|
| Discount Schedule |
PC21
|
|
| GTIN |
00785901541868
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
3.1800000000000002
|
|
| Returnability |
Y
|
|
| Country of origin |
FR
|
|
Sustainable offer status |
Green Premium product |
|
|---|---|---|
|
RoHS (date code: YYWW) |
Compliant - since 0901 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity |
|
|
REACh |
|
|
|
Product environmental profile |
Available |
|
|
Product end of life instructions |
Available |
1 Primary ring, copper/fiber optic medium
2 Ethernet DIO secondary ring, copper medium only
3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.
4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)
5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)
6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)
7 Modicon™ STB Ethernet DIO (3) (4)
8 Connection to Ethernet DIO device cloud, copper medium only
9 Ethernet DIO device cloud (3)
10 Ethernet communication module 140NOE771
11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
