Product Details:
Payment & Shipping Terms:
|
Brand: | Honeywell | Model: | 2711P-T10C4D8 |
---|---|---|---|
Product Name: | Panelview | Series: | 2711 |
Rev: | A | PLUS: | 1000 |
Voltage: | 18-32 VDC | Weight: | 8 Lbs |
Highlight: | hmi display touch screen,hmi touch panel |

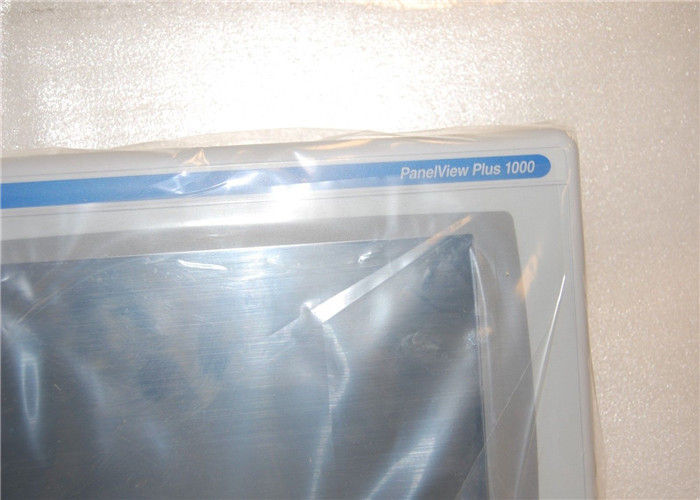

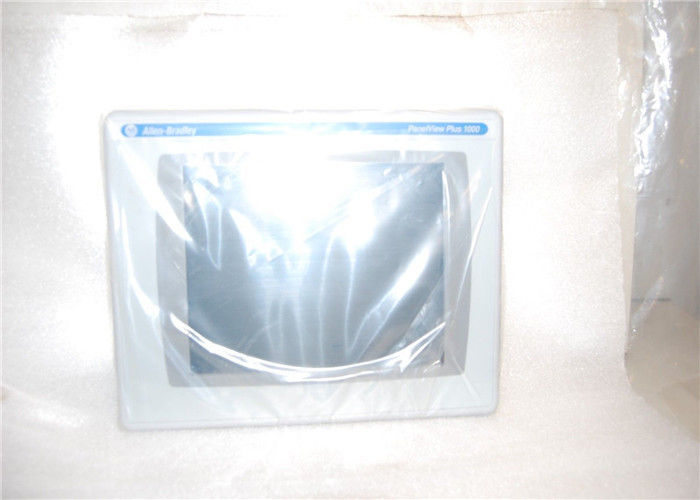

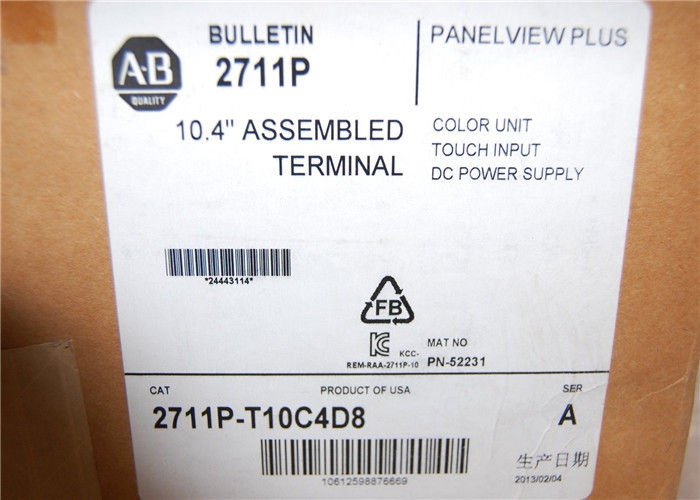

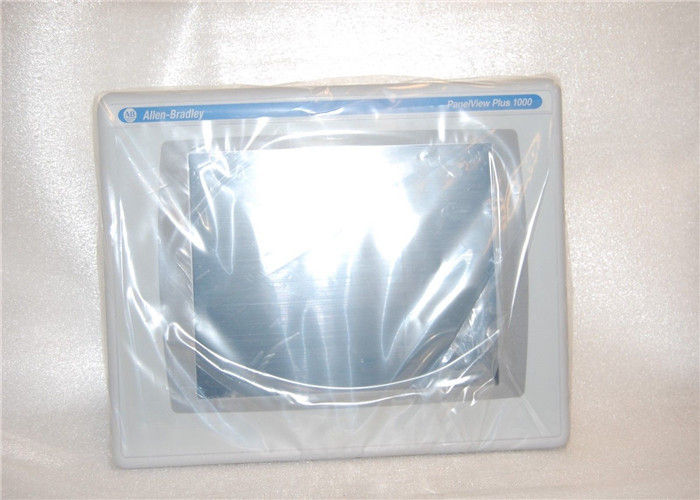

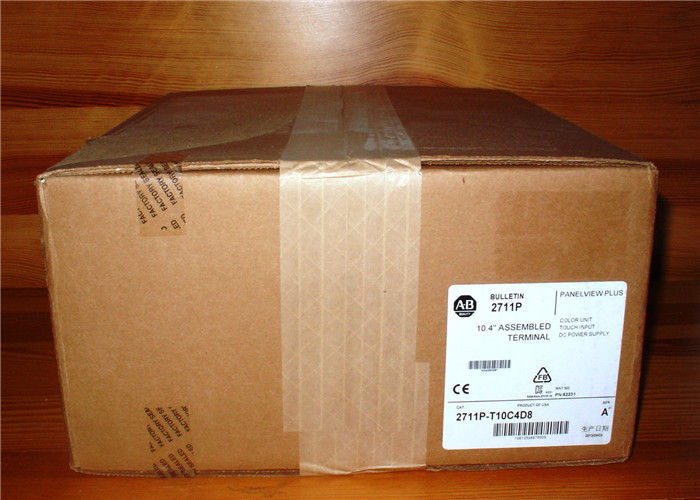

HMI Touch Screen AB Allen Bradley 2711P-T10C4D8 PANELVIEW MONITOR
The 2711P-T10C4D8 is an AB PanelView 6 Plus 1000 Series terminal. The 2711P-T10C4D8 is an operator interface that allows users to monitor, manage, and display application status information.
The 2711P-T10C4D8 uses modular components that allow for flexible configuration, installation, and upgrades. This factory-assembled terminal has both a display module and a logic module. As indicated by the “T” in the part number of this unit, it has a touchscreen input. It has a 10.4-inch color TFT display (indicated by the “C” in part number). The resolution of the display is 640 x 480 pixels with an 18-bit color graphics. The display has a brightness of 300 cd/m2 (Nits).
The entire Panelview Plus family is a wide range of rugged terminals that provide features like premier integration with an Integrated Architecture platform. Optional communication modules are available for additional network communication.
The 2711P-T10C4D8 terminal has Ethernet, RS-232, and 2 USB host ports for communication. These allow the user to connect the terminal to other machines using FactoryTalk View Machine Edition software and with a 2711-NC13 communication cable.
The 2711P-T10C4D8 is powered using 18-30V DC and 100-240V AC at 50-60 Hz. The power consumption (DC) is 15 W max (0.6 A at 24V DC) and 9 W typical (0.375 A at 24V DC). For the AC voltage, the power consumption is 35VA max and 20VA typical.
The 2711P-T10C4D8 processor’s speed has been increased from 350 MHz to 1 GHz and the screen transition rate is approximately 70% faster than in previous models. The 2711P-T10C4D8 has internal memory of 256 MB RAM and 512 MB nonvolatile(ROM).
The illumination of the 2711P-T10C4D8’s backlight display has also been enhanced. The approximate shipping weight is 8 lbs. and the dimensions are 16 x 14 x 8 in. This device works on the Windows CE 6.0 operating system, but it does not support the extended features and file viewers. However, the 2711P-T10C4D8 can connect to a variety of external hardware such as printers, mice, and keyboards.
QUICK DETAILS
DESCRIPTION
SPECIFITIONS
PART NUMBER: | 2711P-T10C4D8 |
---|---|
PRODUCT LINE: | Panelview 6 Plus |
DISPLAY SIZE: | 10.4 in. |
DISPLAY COLOR: | Color |
INPUT TYPE: | Touchscreen |
COMMUNICATION: | Ethernet and RS-232 |
INPUT POWER: | 18-32 VDC |
SOFTWARE: | FactoryTalk View Machine Edition |
MEMORY: | 512 MB RAM |
BACKLIGHT: | 2711P-RL10C2 |
COMMUNICATION CABLE: | 2711-NC13 |
SHIPPING WEIGHT: | 8 lbs. |
SHIPPING DIMENSIONS: | 16 x 14 x 8 in |
SERIES: | Series A and Series B |
FIRMWARE: | 6.00-8.10 |
Question: What type of display does the 2711P-T10C4D8 come with?
Answer: This operator interface has a 10.4 in. Color Display.
Question: What type of programming software is used with this PanelView plus 6?
Answer: This PanelView Plus 6 2711P-T10C4D8 allows the user to connect using FactoryTalk View Machine Edition software and an Ethernet and RS-232 communication port with a 2711-NC13 communication cable(s).
Question: How can the user interact with this PanelView Plus HMI?
Answer: The user is able to control the operator interface by utilizing the Touchscreen to input information and data.
Question: How is the 2711P-T10C4D8 powered?
Answer: As indicated by the “D” in the part number this unit is powered using 18-32 DC power.
