UNI2401 NEW 5.5kw 3 Phase Frequency Inverter , Industrial Frequency Converter

Large Image :  UNI2401 NEW 5.5kw 3 Phase Frequency Inverter , Industrial Frequency Converter

Product Details:

Place of Origin: UK
Brand Name: Emerson
Certification: CE
Model Number: UNI2401

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 2000 USD

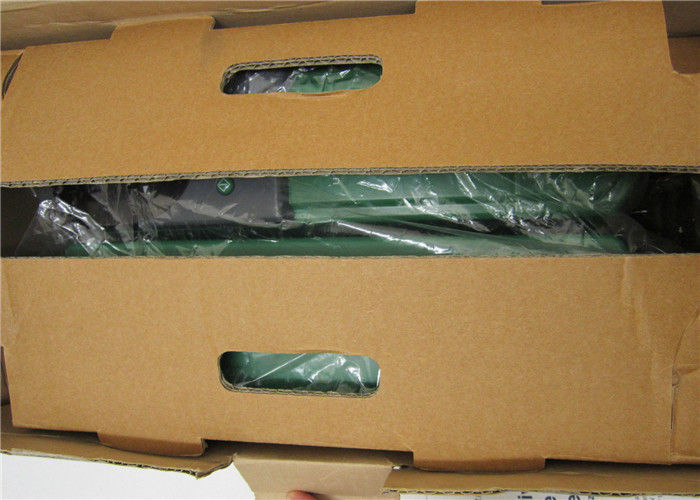

Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: Frequency Inverter Model: UNI2401
Power: 5.5KW Voltage: 380/480V
Input Current: 13.7A Output Current: 12.0A
High Light:

variable frequency converter


variable frequency drive inverter

Control Techniques Unidrive UNI2401 NEW 5.5kw Variable Frequency Inverter




Quick Detail

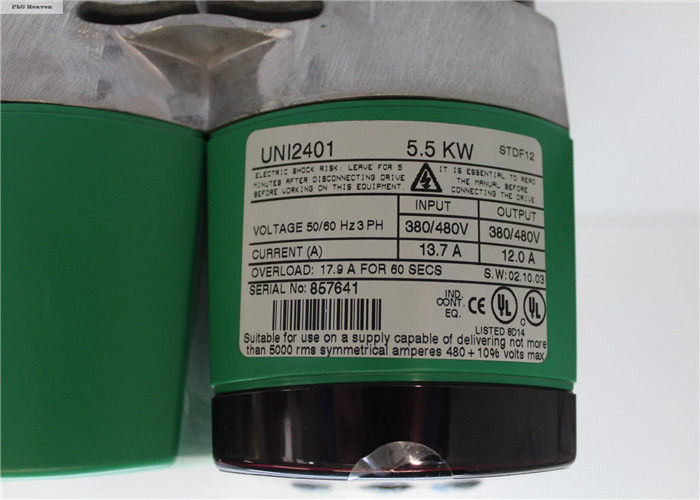

Frequency Inverter UNI2401 5.5KW  50/60 Hz 3PH




Input 380/480V

Output 380/480V




Input 13.7A

Output 12.0A




17.9A for 60 SECS




AC, Servo and DC variable speed drives that save energy, increase productivity and reduce operating costs



Control Techniques is a leading manufacturer of AC and DC variable speed drives, servos and power conversion technologies for commercial and industrial applications. Our innovative products are used in the most demanding applications, requiring performance, reliability and energy efficiency.




Rapid set-up and adjustment

  • Simple and intuitive parameter adjustment via a bright back-lit LCD keypad
  • Set-up in familiar elevator language and units
  • Easy to use menu structure for quick and simple access to key adjustments
  • Top level menu; all your frequently needed functions in one location
  • No de-roping for encoder phasing test, no need to rotate motor



Optimum ride comfort

  • Direct-to-floor positioning
  • Peak curve operation
  • High resolution multi-step S-ramp for start, run, slowdown and stopping
  • Ultra-fast current loop for vibration free motor control
  • Advanced brake control management, no rollback on starting without the need of load sensor



Silent operation

  • No motor contactors required, advanced EN81-1/2 TÜV certified STO enable input
  • High switching frequencies selectable up to 16 kHz
  • Variable speed cooling fan



Energy efficient

  • Standby sleep/wake mode, powers down unused circuitry during prolonged periods of standby
  • Easy connection to a range of regenerative modules



Flexible integration

  • Modbus RTU communications
  • Parallel I/O interface
  • +/- 10V analog reference control
  • Direct RS485 comms control
  • Tile mount for low profile shaft mounting
  • 24 Vdc backup
  • Simple UPS connection with load direction signal
  • Dynamic braking transistor fitted to all drives as standard




  • Active thermal management for tripless operation under extreme conditions
  • Advanced power circuit design using latest IGBT technology
  • Conformal coating for use in harsh environments
  • Building on the market leading position as the industry’s most robust drive
  • Phase loss detection on both input and output



Enhanced elevator data logger

  • User configurable, for example speed reference, speed feedback, current and I/O sequence can all be recorded for every car journey
  • Can be stored in the event of system fault
  • Available for offline viewing to aid system diagnostics


Frequency spectrums of inverter output line voltage(V) with (a) offset PD SPWM and (b) offset POD SPWM techniques




Other Models



UNI1404 UNI1405 UNI2401 UNI2402 UNI2403 UNI3401 UNI3402 UNI3403
UNI3404 UNI3405 UNI4401 UNI4402 UNI4403 UNI4404 UNI4405 UNI5401
