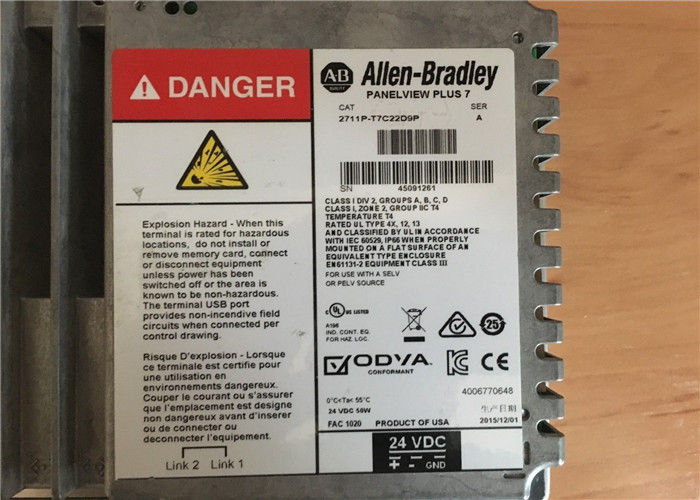

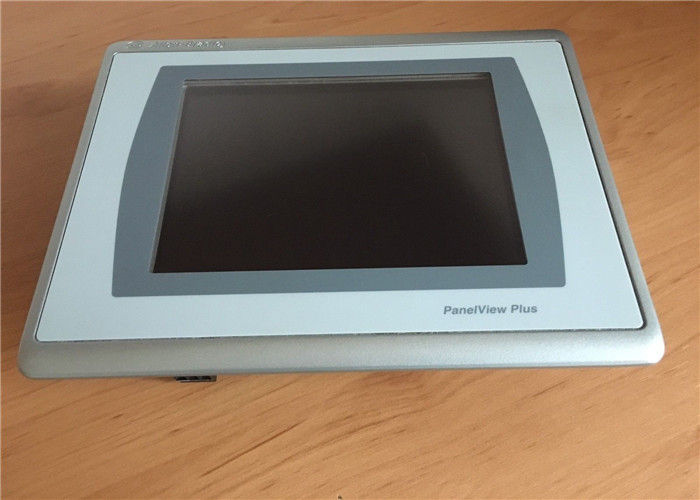

REV A HMI Operator Panel , 2711P-T7C22D9P Allen Bradley Panelview Plus 7

HMI Touch Screen AB Allen Bradley 2711P-T7C22D9P PanelView Plus 7  24VAC

IMPORTANT

The keypad is designed for finger or gloved finger operation. The touch screen may be operated with a finger, gloved finger, or with a touch screen plastic stylus device with a minimum tip radius of 1 mm (0.040 in) to prevent damage to the touch screen. Using any other object or tool may damage the keypad or touch screen.

Configuration Mode Menu

You can configure terminal functions from the Configuration Mode menu. These functions include how to:

• select a language.
• upload/download applications with a memory card.
• set or display serial communication parameters.
• select preset values.
• obtain terminal and application information.
• adjust screen parameters.
• set time and date.
• set printer parameters (for terminals with an RS-232 printer port).
• return to run mode

Terminal Messages

Terminal messages display:

• status of an operation.
• minor faults, errors, or numeric entry mistakes.
• operator prompts.

Printing

PanelView terminals equipped with an RS-232 printer port can print:

• triggered messages in a message display.
• triggered states of a multistate indicator.
• alarm messages.
• alarm lists.

Print attributes for objects are defined in the application.

Any printer that supports the IBM enhanced character set can be connected to the RS-232 printer port of a PanelView terminal

QUICK DETAILS

1. Brand :Allen Bradley (AB)
2. Model :2711P-RDK7C
3. Place of Origin : USA


DESCRIPTION

• Touch Display  Screen
• MONITOR
• Color Keypad Display Module



SPECIFITIONS
