Product Details:
Payment & Shipping Terms:
|
| Product Name: | Frequency Inverter | Model: | Unidrive M |
|---|---|---|---|
| Application: | Servo Control | Serier 1: | M600 |
| Serier 2: | M700 | Serier 3: | M701 |
| Highlight: | variable frequency converter,variable frequency drive inverter |
||

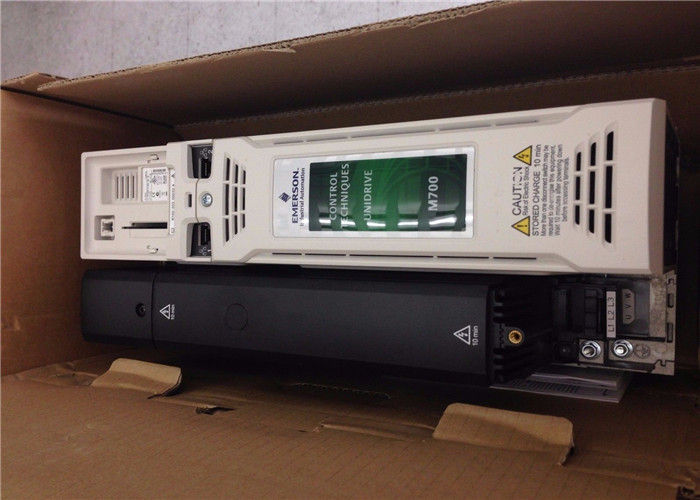

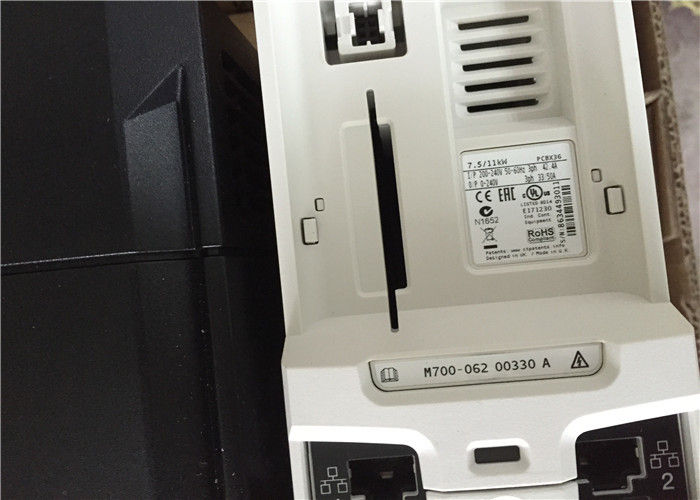

Emerson Unidrive M variable frequency inverter M600 / M700 / M701 / M702
Superseded of Unidrive SP
| Unidrive M | Features |
| Unidrive M600 Simplified feature set with the addition of sensorless permanent magnet motor control |
For Unidrive SP users who do not require: • Servo motor control • MCi/SI-Applications support Closed loop vector control of induction motors can be achieved with SI-Encoder/ SI-Universal Encoder option |
| Unidrive M700 Unidrive SP with integrated Ethernet and other enhancements |
For Unidrive SP users who want to use Ethernet protocols to communicate with other drives and automation components Enhancements include: • Improved motor control performance • Onboard advanced motion controller • Improved encoder support |
| Unidrive M701 This is the default Unidrive SP migration product Matched feature set with enhancements |
Perfect choice for Unidrive SP users as it provides the same functionality and feature set Enhancements include: • Improved motor control performance • Onboard advanced motion controller • Improved encoder support |
| Unidrive M702 Digital version of Unidrive SP with integrated Ethernet and dual Safe Torque Of |
For Unidrive SP users who want to use Ethernet protocols and also require onboard dual Safe Torque Of |
Migration path by product number for Unidrive SP to M600, M700, M701 or M702
Table one
| Frame Size | 200/240 VAC | Frame Size | 200/240 VAC |
| 1 | SP1201 | 3 | M600 to M702-03200050A |
| 1 | SP1202 | 3 | M600 to M702-03200066A |
| 1 | SP1203 | 3 | M600 to M702-03200080A |
| 1 | SP1204 | 3 | M600 to M702-03200106A |
| 2 | SP2201 | 4 | M600 to M702-04200137A |
| 2 | SP2202 | 4 | M600 to M702-04200185A |
| 2 | SP2203 | 5 | M600 to M702-05200250A |
| 3 | SP3201 | 6 | M600 to M702-06200330A |
| 3 | SP3202 | 6 | M600 to M702-06200440A |
| 4 | SP4201 | 7 | M600 to M702-07200610A |
| 4 | SP4202 | 7 | M600 to M702-07200750A |
| 4 | SP4203 | 7 | M600 to M702-07200830A |
| 5 | SP5201 | 8 | M600 to M702-08201160A |
| 5 | SP5202 | 8 | M600 to M702-08201320A |
Tabel two
| Frame Size | 380/480 VAC | Frame Size | 380/480 VAC |
| 1 | SP1401 | 3 | M600 to M702-03400025A |
| 1 | SP1402 | 3 | M600 to M702-03400031A |
| 1 | SP1403 | 3 | M600 to M702-03400045A |
| 1 | SP1404 | 3 | M600 to M702-03400062A |
| 1 | SP1405 | 3 | M600 to M702-03400078A |
| 1 | SP1406 | 3 | M600 to M702-03400100A |
| 2 | SP2401 | 4 | M600 to M702-04400150A |
| 2 | SP2402 | 4 | M600 to M702-04400172A |
| 2 | SP2403 | 5 | M600 to M702-05400270A |
| 2 | SP2404 | 5 | M600 to M702-05400300A |
| 3 | SP3401 | 6 | M600 to M702-06400350A |
| 3 | SP3402 | 6 | M600 to M702-06400420A |
| 3 | SP3403 | 6 | M600 to M702-06400470A |
| 4 | SP4401 | 7 | M600 to M702-07400660A |
| 4 | SP4402 | 7 | M600 to M702-07400770A |
| 4 | SP4403 | 7 | M600 to M702-07401000A |
| 5 | SP5401 | 8 | M600 to M702-0801340A |
| 5 | SP5402 | 8 | M600 to M702-0801570A |
| 6 | SP6401 | 9 | M600 to M702-0902000A |
| 6 | SP6402 | 9 | M600 to M702-0902240A |
Table three
| Frame Size | 500/575 VAC | Frame Size | 500/575 VAC |
| 3 | SP3501 | 5 | M600 to M702-05500040A |
| 3 | SP3502 | 5 | M600 to M702-05500069A |
| 3 | SP3503 | 5 | M600 to M702-05500069A |
| 3 | SP3504 | 6 | M600 to M702-06500100A |
| 3 | SP3505 | 6 | M600 to M702-06500150A |
| 3 | SP3506 | 6 | M600 to M702-06500190A |
| 3 | SP3507 | 6 | M600 to M702-06500230A |
| 4 | SP4603 | 6 | M600 to M702-06500290A |
| 4 | SP4604 | 6 | M600 to M702-06500350A |
| 4 | SP4605 | 7 | M600 to M702-07500440A |
| 4 | SP4606 | 7 | M600 to M702-07500550A |
| 5 | SP5601 | 8 | M600 to M702-08500630A |
| 5 | SP5602 | 8 | M600 to M702-08500860A |
| 6 | SP6601 | 9 | M600 to M702-09501040A |
| 6 | SP6602 | 9 | M600 to M702-09501310A |
Table four
| Frame Size | 500/690 VAC | Frame Size | 500/690 VAC |
| 4 | SP4601 | 7 | M600 to M702-07600190A |
| 4 | SP4602 | 7 | M600 to M702-07600240A |
| 4 | SP4603 | 7 | M600 to M702-07600290A |
| 4 | SP4604 | 7 | M600 to M702-07600380A |
| 4 | SP4605 | 7 | M600 to M702-07600440A |
| 4 | SP4606 | 7 | M600 to M702-07600540A |
| 5 | SP5601 | 8 | M600 to M702-08600630A |
| 5 | SP5602 | 8 | M600 to M702-08600860A |
| 6 | SP6601 | 9 | M600 to M702-09601040A |
| 6 | SP6602 | 9 | M600 to M702-09601310A |
Specification
Liability:
WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is
compliance to their machinery.
