Product Details:
Payment & Shipping Terms:
|
| Brand: | GE | Model: | IC693CPU350(EK) |
|---|---|---|---|
| Place Of Origin: | USA | Product Name: | Ethernet Interface Module |
| Override: | Yes | Processor Type: | 80386EX |
| Highlight: | industrial programmable controller,industrial automation using plc |
||

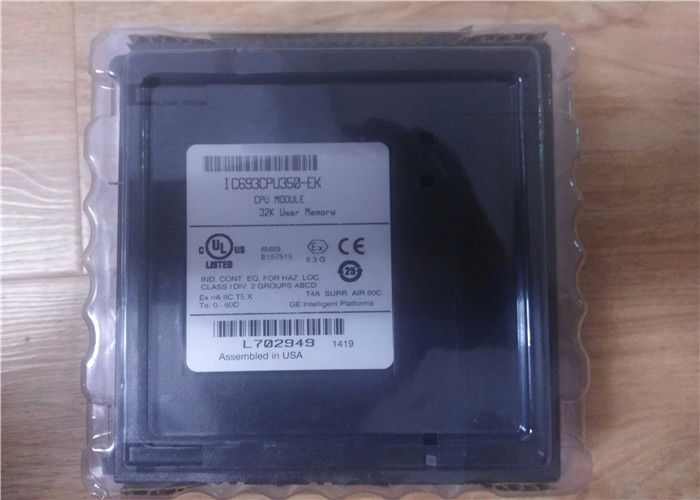

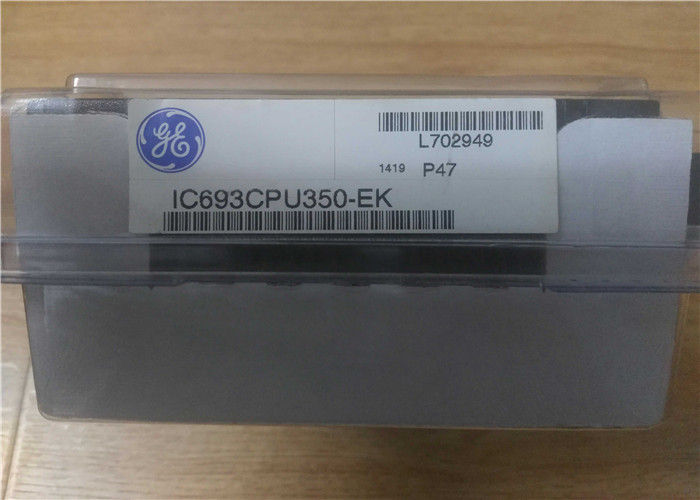

PLC Programmable Logic Controller GE Fanuc IC693CPU350 9030 CPU Module IC693CPU350-EK
Catalog Number IC693CPU350
| CPU Type | Single slot CPU module |
| Total Baseplates per System | 8 (CPU baseplate + 7 expansion and/or remote) |
| Load Required from Power Supply | 670 milliamps from +5 VDC supply |
| Processor Speed | 25 MegaHertz |
| Processor Type | 80386EX |
| Operating Temperature | 0 to 60 degrees C (32 to 140 degrees F) ambient |
| Typical Scan Rate | 0.22 milliseconds per 1K of logic (boolean contacts) |
| User Program Memory (maximum) | 32K Bytes (not configurable) |
| Discrete Input Points - %I | 2,048 Discrete Output Points - %Q 2,048 |
| Discrete Global Memory - %G | 1,280 bits |
| Internal Coils - %M | 4,096 bits |
| Output (Temporary) Coils - %T | 256 bits |
| System Status References - %S | 128 bits (%S, %SA, %SB, %SC - 32 bits each) |
| Register Memory - %R | 9,999 words |
| Analog Inputs - %AI | 2,048 words |
| Analog Outputs - %AQ | 512 words |
| Timers/Counters | >2,000 |
| Shift Registers | Yes |
| Override | Yes |
| Battery Backed Clock | Yes |
| Interrupts | Supports the periodic subroutine feature |
| Type of Memory Storage | RAM and Flash |
| PCM/CCM Compatibility | Yes |
| Floating Point Math Support | Yes. Firmware-based in firmware releases 9.0 and later. |
FEATURES
DESCRIPTION
The GE Fanuc IC693CPU Series 90-30 CPU Modules are embedded into the backplane, making all slots available for I/O. These modules are compatible with advanced modules such as Ethernet, various bus modules, and control. Mid range CPU's are modular and come in various memory sizes; performance capabilities; and increased functionality such as overrides, battery-backed clock, and programmable co-processor module support.
The high performance CPU's are based on the latest 386EX processor for fast computation and high throughput. They can handle up to 4096 I/O and start at 32K of memory and are programmable in a number of standard languages.
With 1 built in port the GE Fanuc 90-30 IC693CPU340 supports SNP/SNP-X master CCM, or RTU slave support and is a PCM module for RTU master support. The GE Fanuc 90-30 IC693CPU340 is a single slot CPU that has user programabale memory of 32k(bytes) with 19.9k of register memory. GE Fanuc 90-30 IC693CPU340 has a processor speed of 25 megahertz and also hs 8 base plates per system.
