GE Fanuc Input Ethernet Input Module , 16pt Relay Interface Module IC693MDL240G

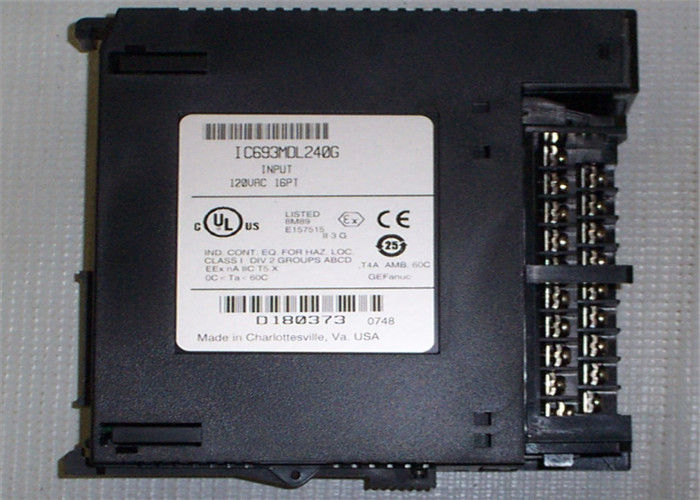

Large Image :  GE Fanuc Input Ethernet Input Module , 16pt Relay Interface Module IC693MDL240G

Product Details:

Brand Name: GE
Model Number: IC693MDL240(G)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: TT West Union
Supply Ability: 100
Detailed Product Description
Place Of Origin: USA Brand: GE
Model: IC693MDL240(G) Product Name: Ethernet Interface Module
Weight: 0.70 Lbs UNSPSC Code: 55121719
High Light:

industrial programmable controller


ethernet plc controllers


PLC Programmable Logic Controller GE Fanuc IC693MDL240 Input Module 16pt. Relay IC693MDL240G






The 120 volt AC Input module for the Series 90-30 Programmable Logic Controller provides 16 input points with one common power input terminal. The input circuits are reactive (resistor/capacitor) inputs.


Current into an input point results in a logic 1 in the input status table (%I). Input characteristics are compatible with a wide range of user-supplied input devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate the field devices must be supplied by the user. This module requires an AC power source, it cannot be used with a DC power source.


LED indicators which provide the ON/OFF status of each point are located at the top of the module. This LED block has two horizontal rows with eight green LEDs in each row; the top row labeled A1 through 8 (points 1 through 8) and the bottom row labeled B1 through 8 (points 9 through 16).

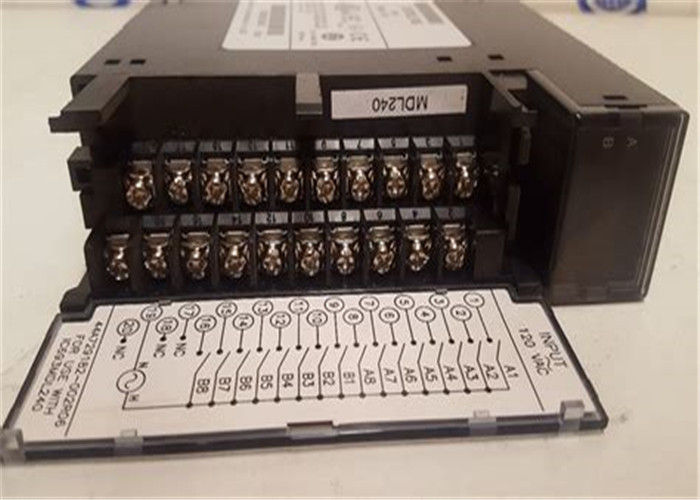

An insert goes between the inside and outside surface of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded red to indicate a high-voltage module. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.






Rated Voltage 120 volts AC
Input Voltage Range 0 to 132 volts AC, 50/60 Hz
Inputs per Module 16 (one group with a single common)
Isolation Isolation 1500 volts RMS between field side and logic side
Input Current 12 mA (typical) at rated voltage
Input Characteristics On-state Voltage 74 to 132 volts AC
On-state Voltage 74 to 132 volts AC
Off-state Voltage 0 to 20 volts AC
On-state Current 6 mA minimum
Off-state Current 2.2 mA maximum
On response Time 30 ms maximum
Off response Time 45 ms maximum

90 mA (all inputs on) from 5 volt bus on backplane






Revision Numbers
IC693MDL240A, IC693MDL240B, IC693MDL240C, IC693MDL240D, IC693MDL240E, IC693MDL240F, IC693MDL240G, IC693MDL240H, IC693MDL240I, IC693MDL240J, IC693MDL240K, IC693MDL240L, IC693MDL240M, IC693MDL240N, IC693MDL240O, IC693MDL240P, IC693MDL240Q, IC693MDL240R, IC693MDL240S, IC693MDL240T, IC693MDL240U, IC693MDL240V, IC693MDL240W, IC693MDL240X, IC693MDL240Y, IC693MDL240Z,
