Product Details:
Payment & Shipping Terms:
|
| Category: | Peristaltic Pump Head | Model 1.: | YZ1515x |
|---|---|---|---|
| Model 2.: | YZ2515x | Temperature Resistance: | 200 °C |
| Flow Rates: | -≤2200ml/min | Max. Number Of Channels: | 1 |
| Highlight: | electric servo drive,ac servo pack |
||

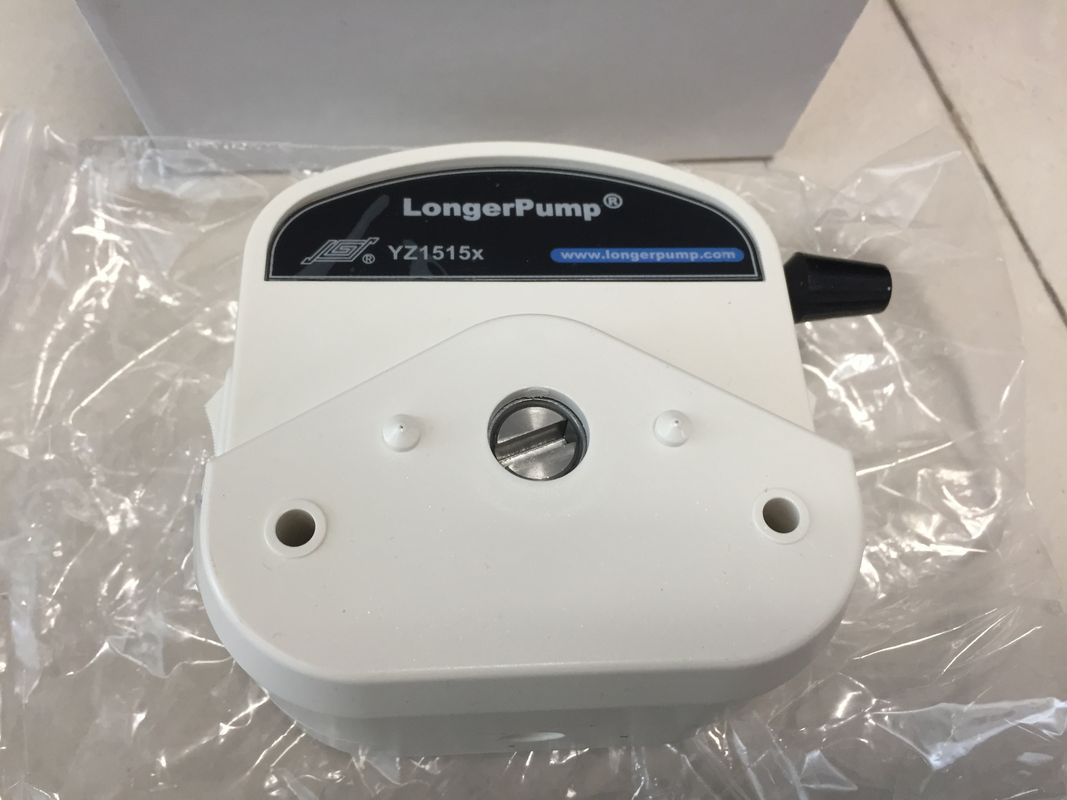

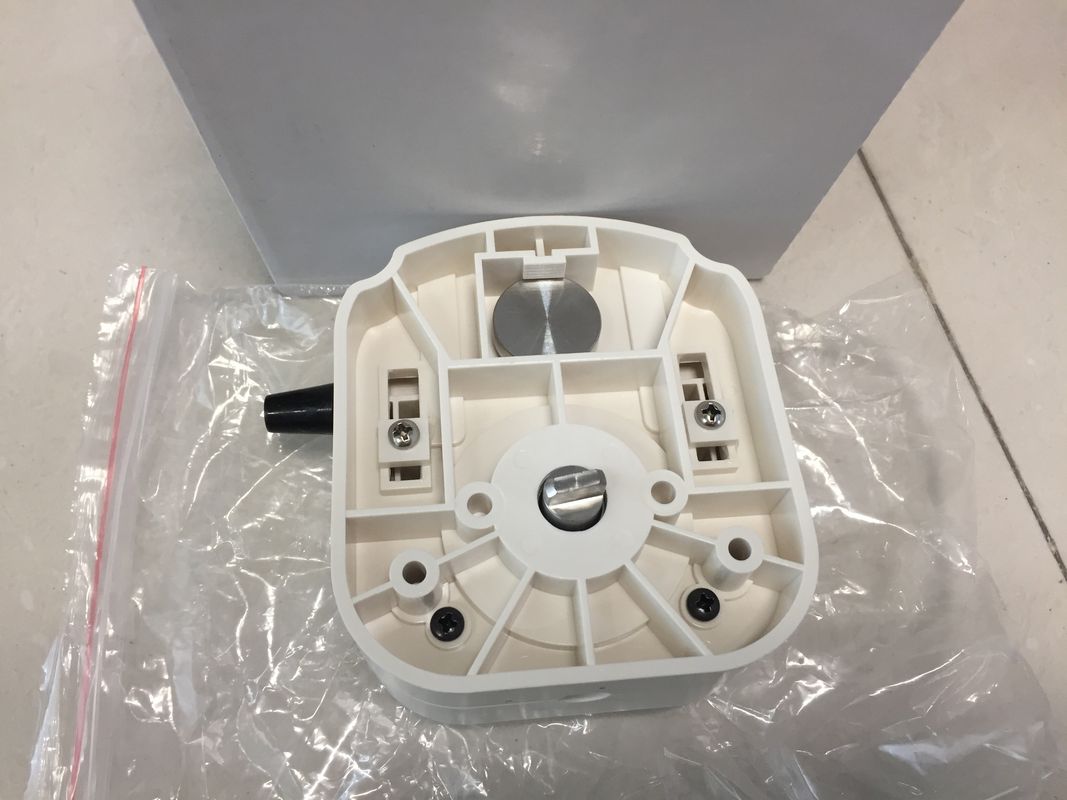

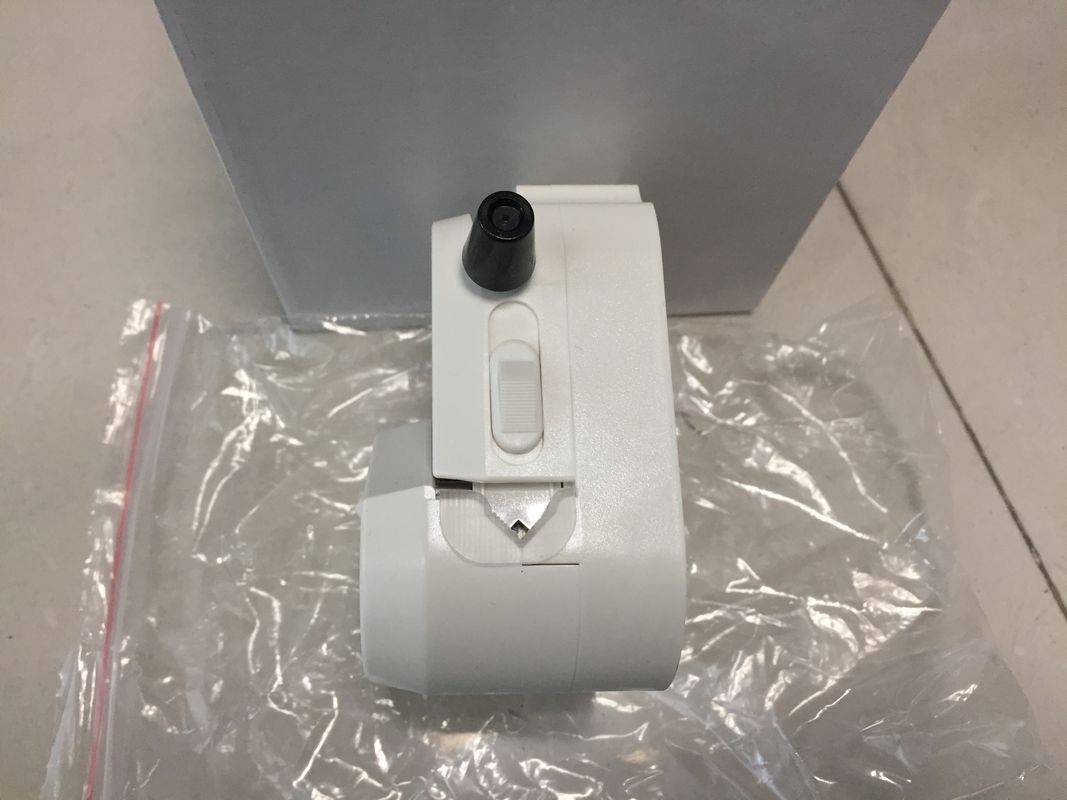

LONGER Peristaltic Pump Head YZ1515x YZ2515x -PESU Servo Drive Pump head Basic Type
Quick Detail
YZ1515x,YZ2515x -PESU
Change tubing easily and rapidly; Automatic tubing retention; Suitable for several tubing sizes; The rollers
adopt high quality materials and has good wearing property; The housing of the pump head has perfect
rigidity and structure property, and its materials is PESU which has stable performance and high
temperature resistance (200 °C )
Flow rates:-≤2200ml/min
Max. Number of Channels:1
Product Features
1. Applications:
peristaltic pump head suitable for all kind of industry and lab
2. Product Instruction:
Specification:
| Model |
Product Code |
Roller Number |
Roller Material |
Housing Material |
Speed (rpm) | Tubing |
Max.Flowrat e(ml/min) |
Weight(kg) |
| YZ1515x-A | 05.01.52A | 3 |
Stainless Steel
|
PESU | ≤600 | 13# 14# 19# 16# 25# 17# 18# | 2200 1600 |
0.5 |
| YZ1515x-B | 05.01.52B | 6 | ||||||
| YZ2515x-A | 05.01.53A | 3 | 15# 24# |
Dimensional Drawing:
YZ1515x,YZ2515x pump head Operating Instruction
Pictures
Package
Liability:
WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is
compliance to their machinery.
