LEAD-2 Vertical Variable Speed Peristaltic Pump , Multi Channel Peristaltic Pump

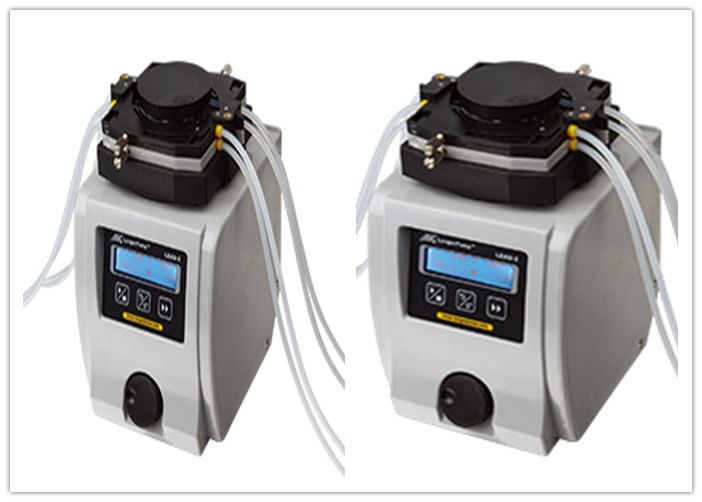

: Large Image : LEAD-2 Vertical Variable Speed Peristaltic Pump , Multi Channel Peristaltic Pump

Product Details:

Place of Origin:	China
Brand Name:	Longer
Certification:	CE
Model Number:	LEAD-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	In Stock
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Category:	Peristaltic Pump	Type:	LEAD-2
Flow Rates:	0.005ml/min-300ml/min	Max. Number Of Channels:	8
Power Supply:	AC90V - 260V/50W	Operating Temperature:	<80%
Weight:	3.5 Kg	Dimension (LWH):	190×162×275(mm)
High Light:	electric servo drive , ac servo pack

LONGER LEAD-2 Vertical and Multi-channels Peristaltic Pump Servo Motor Drive Pump

Quick Detail

LEAD-2 - Vertical & Multi-channels servo motor drive Peristaltic Pump

Multi-channels peristaltic pump LEAD-2 could be loaded with multi-channel pump head LEAD15-24,

LEAD15-44, LEAD15-48, LEAD15-88, and the channel quantity is up to 8. The pump has graphic LCD,

which could display the parameters and running state. Except the basic speed control function, the pump

could also display the flow rate on the LCD and calibrate the flow rate with high accuracy.

Flow rates:0.005ml/min-300ml/min

Max. Number of Channels:8

Product Feature

1.Applications:

Suitable for laboratory, analytical instrument, industry.

2.Product Instruction:

Multi-channels peristaltic pump LEAD-2 could be loaded with multi-channel pump head LEAD15-24,

LEAD15-44, LEAD15-48, LEAD15-88, and the channel quantity is up to 8. The pump has graphic LCD,

which could display the parameters and running state. Except the basic speed control function, the pump

could also display the flow rate on the LCD and calibrate the flow rate with high accuracy. The pump

provides flow rates from 0.005mL/min to 350 mL/min. The speed could be controlled through control

panel, external control interface or RS485 interface. The running parameters are saved automatically.

And the pump could be operated easily.

Specification:

Main Functions and Features

- Display can switch between flow rates and rpm

- Calibration capability for more accurate flow rate

- Graphic LCD together with rotary encoded switch makes it friendly and easy to use

- Higher torque to accept more pump heads and more channels

- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.

Technical Specifications

- Speed: 1rmp - 100rpm, CW/CCW

- Speed resolution: 0.1rpm

- Control mode: Control panel, external signal control and communication control are available

- Display: 128*32 graphic LCD for current running state

- Calibration function: Improve flow rate accuracy

- External control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, external control module optional)

- Communication interface: RS485

- Power-off memory: Return to previous state when power on

- Prime: For fasting filling and emptying at full speed

- Dimension (L*W*H): 190×162×275(mm)

- Power supply: AC90V - 260V/50W

- Operating temperature:0℃-40℃

- Relative humidity: <80%

- Weight: 3.5kg

Other parameters

Type	Pump Head	Channel/rollers	Tubing	Max. Flow rate(ml/min)	Weight (kg)
LEAD-2-A (05.02.19A Chinese) LEAD-2-C (05.02.19C English)	LEAD15 - 24	2/4	16# 25# 17#	300(Single Channel)	4.36
	LEAD15 - 44	4/4	16# 25# 17#	300(Single Channel)	4.42
	LEAD15 - 48	4/8	13# 14# ID≤3.17(mm) Wall Thickness 0.8-1(mm)	75(Single Channel)	4.48
	LEAD15 - 88	8/8	13# 14# ID≤3.17(mm) Wall Thickness 0.8-1(mm)	75(Single Channel)	4.48

Suitable SERVO DRIVE Peristaltic Pump Tubing for Flow Rate Peristaltic Pump

Drive	Pump Head	Tubing	ID	OD	Tubing No.	Rec.
BT100-1L	YZ1515X1YZII151	Silicone Tubing			13# 14# 19# 16# 25# 17# 18#	Suitable
		Norprene A-60-G			14#	Suitable
		Norprene A-60-G			16#	Suitable
		Norprene A-60-F			16#	Suitable
		Norprene CHEMICAL			16# 25# 17#	Suitable
		Fluran F-4040-A			14# 16# 25# 17# 18#	Suitable
		Fluran F-5500-A			14# 16# 25# 17# 18#	Suitable
		Viton			13# 14# 16# 25# 17# 18#	Suitable
		pharmed			13# 14# 19# 16# 25# 17# 18#	Suitable
		Tygon R-3603			13# 14# 16# 25# 17# 18#	Suitable
		Tygon 3350			19# 16# 25# 18#	Suitable
		Tygon 2275			16# 25# 17#	Suitable
	YZ1515X2YZII152	Silicone Tubing			13# 14# 19# 16# 25# 17# 18#	Suitable
		Norprene A-60-G			14#	Suitable
		Norprene A-60-G			16#	Suitable
		Norprene A-60-F			16#	Suitable
		Norprene CHEMICAL			16# 25# 17#	Suitable
		Fluran F-4040-A			14# 16# 25# 17# 18#	Suitable
		Fluran F-5500-A			14# 16# 25# 17# 18#	Suitable
		Viton			13# 14# 16# 25# 17# 18#	Suitable
		pharmed			13# 14# 19# 16# 25# 17# 18#	Suitable
		Tygon R-3603			13# 14# 16# 25# 17# 18#	Suitable
		Tygon 3350			19# 16# 25# 18#	Suitable
		Tygon 2275			16# 25# 17#	Suitable
	YZ1515X3YZII153	Silicone Tubing			13# 14# 19# 16# 25# 17# 18#	Suitable
		Norprene A-60-G			14#	Suitable
		Norprene A-60-G			16#	Unsuitable
		Norprene A-60-F			16#	Unsuitable
		Norprene CHEMICAL			16#	Unsuitable
		Fluran F-5500-A			14# 16#	Suitable
		Fluran F-5500-A			25# 17# 18#	Unsuitable
		Viton			13#	Suitable
		Viton			14#	Unsuitable
		pharmed			13# 14# 19# 16#	Suitable
		Tygon R-3603			13# 14#	Suitable
		Tygon 3350			19# 16# 25# 18#	Suitable
	YZ1515X4YZII154	Silicone Tubing			13# 14# 19# 16# 25# 17# 18#	Suitable
		Norprene A-60-G			14#	Suitable
		Fluran F-5500-A			14# 16#	Unsuitable
		Viton			13#	Suitable
		pharmed			13# 14#	Suitable
		Tygon R-3603			13#	Suitable
		Tygon 3350			19# 16# 25# 18#	Suitable
	YZ2515X*1	Silicone Tubing			15# 24#	Suitable
		Pharmed			15# 24#	Suitable
		Tygon R-3603			15# 24#	Suitable
		Tygon 3350			15# 24#	Suitable
	YZII25*1	Silicone Tubing			15# 24# 35# 36#	Suitable
		Pharmed			15# 24# 35# 36#	Suitable
		Tygon R-3603			15# 24#	Suitable
		Tygon 3350			15# 24#	Suitable
	YZ2515X*2	Silicone Tubing			15# 24#	Suitable
		Pharmed			15# 24#	Unsuitable
		Tygon R-3603			15# 24#	Unsuitable
		Tygon 3350			15# 24#	Suitable
	YZ2515X*3	Silicone Tubing			15# 24#	Suitable
	YZ2515X*3	Tygon 3350			15# 24#	Suitable
	YZ2515X*4	Silicone Tubing			15# 24#	Suitable
	YZ2515X*4	Tygon 3350			15# 24#	Unsuitable
	YZII25*2	Silicone Tubing			15# 24# 35# 36#	Suitable
		Pharmed			15# 24#	Unsuitable
		Tygon R-3603			15# 24#	Unsuitable
		Tygon 3350			15# 24#	Suitable
	DG15-24	Silicone Tubing			16# 25# 17#	Suitable
Norprene CHEMICAL				16# 25# 17#	Suitable
Fluran F-4040-A				16# 25# 17#	Suitable
Fluran F-5500-A				16# 25# 17#	Suitable
Viton				16# 25# 17#	Suitable
Pharmed				16# 25# 17#	Suitable
Tygon R-3603				16# 25# 17#	Suitable
Tygon 3350				16# 25# 17#	Suitable
Tygon 2275				16# 25# 17#	Suitable
DG15-28	Silicone Tubing			13# 14#	Suitable
	Norprene A-60-G			14#	Suitable
	Norprene A-60-G			17#	Unsuitable
	Pharmed			13# 14#	Suitable
	Tygon R-3603			13# 14#	Suitable
	Silicone Tubing	≤3.17(mm)	0.8-1.0(mm)		Suitable
	F-4040-A	≤2.06(mm)	0.86(mm)		Suitable
	F-5050-A	≤2.06(mm)	0.86(mm)		Suitable
	Viton	≤2(mm)	0.8-1.0(mm)		Suitable
	pharmed	≤2.79(mm)	0.86(mm)		Suitable
	Tygon R-3603	≤2.4(mm)	0.8(mm)		Suitable
	Tygon R-3607	≤2.06(mm)	0.9(mm)		Suitable
DG15-48	Silicone Tubing			13#	Suitable
	Silicone Tubing			14#	Unsuitable
	Silicone Tubing	≤2(mm)	0.8-1.0(mm)		Suitable
	F-4040-A	≤1.65(mm)	0.86(mm)		Suitable
	F-5050-A	1.6(mm)	0.86(mm)		Suitable
	Viton	≤2(mm)	0.8-1.0(mm)		Suitable
	pharmed	＜2.54(mm)	0.86(mm)		Suitable
	pharmed	2.54,2.79(mm)	0.86(mm)		Unsuitable
	Tygon R-3603				Suitable
	Tygon R-3607				Suitable
	Tygon R-3607	2.06(mm)	0.9(mm)		Unsuitable
DG-(2,4,6,8,12)(6,10rollers)	Silicone Tubing	≤3.17(mm)	0.8-1.0(mm)		Suitable
	F-4040-A	≤2.06(mm)	0.86(mm)		Suitable
	F-5050-A	≤2.06(mm)	0.86(mm)		Suitable
	Viton	≤2(mm)	0.8-1.0(mm)		Suitable
	pharmed	≤2.4(mm)	0.8(mm)		Suitable
	Tygon R-3603	≤2.4(mm)	0.8(mm)		Suitable
	Tygon R-3607	≤2.06(mm)	0.9(mm)		Suitable
DG-16(6)	Silicone Tubing	≤3.17(mm)	0.8-1.0(mm)		Suitable
	F-5050-A	1.6(mm)	0.86(mm)		Suitable
	pharmed	≤2.06(mm)	0.86(mm)		Suitable
	pharmed	2.54(mm)	0.86(mm)		Unsuitable
	Tygon R-3603	＜0.76(mm)	0.8(mm)		Suitable
	Tygon R-3603	≥0.76(mm)	0.8(mm)		Unsuitable
	Tygon R-3607	≤1.85(mm)	0.9(mm)		Suitable
	Tygon R-3607	2.06(mm)	0.9(mm)		Unsuitable
DG-16(10)	Silicone Tubing	＜3(mm)	0.8-1.0(mm)		Suitable
	Silicone Tubing	3(mm)	1.0(mm)		Unsuitable
	F-5050-A	1.6(mm)	0.86(mm)		Unsuitable
	pharmed	≤1.65(mm)	0.86(mm)		Suitable
	pharmed	＞1.65(mm)	0.86(mm)		Unsuitable
	Tygon R-3603	≥0.76(mm)	0.8(mm)		Unsuitable
	Tygon R-3603	＜0.76(mm)	0.8(mm)		Suitable
	Tygon R-3607	＜1.85(mm)	0.9(mm)		Suitable
	Tygon R-3607	≥1.85(mm)	0.9(mm)		Unsuitable
DG-24(6)	Silicone Tubing	≤3.17(mm)	0.8-1.0(mm)		Suitable
DG-24(6)	pharmed	≤1.65(mm)	0.86(mm)		Suitable
DG-24(10)	Silicone Tubing	＜2(mm)	0.8-1.0(mm)		Suitable
	Silicone Tubing	≥2(mm)	0.8-1.0(mm)		Unsuitable
	pharmed	≤1.65(mm)	0.86(mm)		Suitable
LEAD-2	LEAD15-24	Silicone Tubing			16# 25# 17#	Suitable
	LEAD15-44				16#	Suitable
	LEAD15-28				13# 14#	Suitable
	LEAD15-48				13#	Suitable
	LEAD15-48				14#	Unsuitable

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
