| Category: | Peristaltic Pump | Type: | BT100-1F |
|---|---|---|---|
| Flow Rates: | 0.0002ml/min-500ml/min | Max. Number Of Channels: | 4 |
| Power Supply: | < 40W | Operating Condition: | Temperature 0 To 40°C |
| Relative Humidity: | < 80% | Power: | AC90V - AC260V |
| High Light: | electric servo drive,ac servo drive |
||
LONGER LEAD-2 Vertical and Multi-channels Peristaltic Pump Servo Motor Drive Pump
Quick Detail

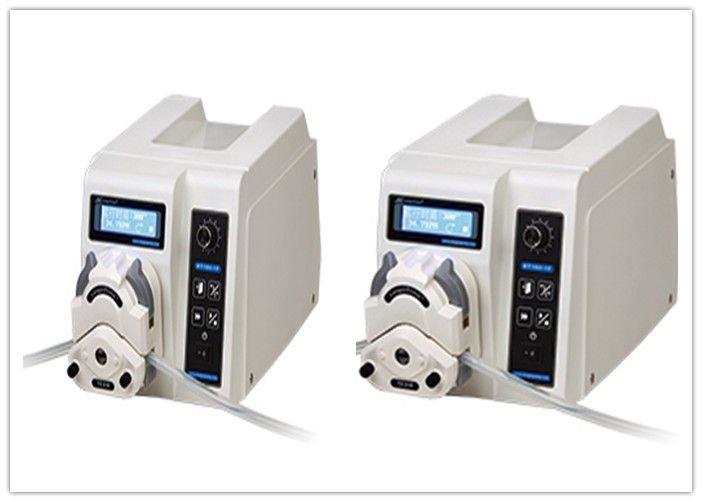

BT100-1F - Dispensing Peristaltic Pump
Dispensing peristaltic pump BT100-1F has LCD, which could display the parameters and running state.
The pump could run continuously at desired flow rate and speed, and also could complete the dispensing
function. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. The
pump offers flow rate from 0.0002 mL/min to 500mL/min. And the dispensing volume is from 0.01mL to
9990mL.
Flow rates:0.0002ml/min-500ml/min
Max. Number of Channels:4
Product Feature
1. Applications:
Suitable for laboratory, analytical instrument, industry.
2. Product Instruction:
Specification:
Main Functions and Features
- Applicable pump heads: YZ1515X, YZII15, YZ2515X, YZII25, DG-1/DG-2
- Micro flow rates transferring: The smallest flow rate can reach 0.2 μL/min
- Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
- Back suction function: 0s - 99.9min, resolution is 0.1s
- Operating mode: Membrane keypad and rotary encoded switch
- Speed control: The speed can be adjusted manually or automatically through external control interface
- Prime key: For fast filling and emptying at full speed
- Power-off memory: Return to previous state when power on
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
- Communication function: the pump could be controlled by computer through RS485 communication interface.
Technical Specifications
- Speed: 0.1-100 rpm, CW/CCW
- Speed resolution: 0.1 rpm
- Control mode: Control panel, external signal control and communication control are available
- Display: LCD for running state
- Dispensing volume: 0.01 mL to 9.99 L
- Copy number: 0 to 9999, 0 means unlimited cycle.
- Pause time: 0.1s-99.9 min, resolution is 0.1s
- Exteranl control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz corresponding to 0.1-100 rpm)
- Speed output: 10Hz - 10kHz corresponding to 0.1 - 100 rpm
- Start/stop output: OC gate signal
- Direction output: OC gate signal
- Communication interface: RS485
- Power: AC90V - AC260V
- Power consumption: < 40W
- Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
- Dimensions (L × W × H): 285 × 207 × 180 (mm)
- Drive Weight: 3.8 kg
- IP rating: IP 31
Other parameters
|
Drive |
Pump head | Tubing | Flow Rate ( */min) | Weight (kg) |
| BT100-1F-B (05.02.13B,English) | YZ1515x,YZII15 | 13# 14# 19# 16# 25# 17# 18# |
7 μL - 380 mL | 4.2 |
| YZ2515x | 15# 24# | 0.17 mL - 267 mL | ||
| YZII25 | 15# 24# 35# 36# | 0.17 mL - 500 mL | ||
| DG-1, DG-2, DG-4 (6 Rollers, 10 Rollers) |
Wall Thickness: 0.8 - 1.0 (mm) Inner Diameter: ≤3.17 mm |
0.2μL - 32ml (Single channel for 10 rollers) |
4.0 - 4.2 | |
| 0.25 μL- 48 ml (Single channel for 6 rollers) |
Communication Function for BT100-1F
