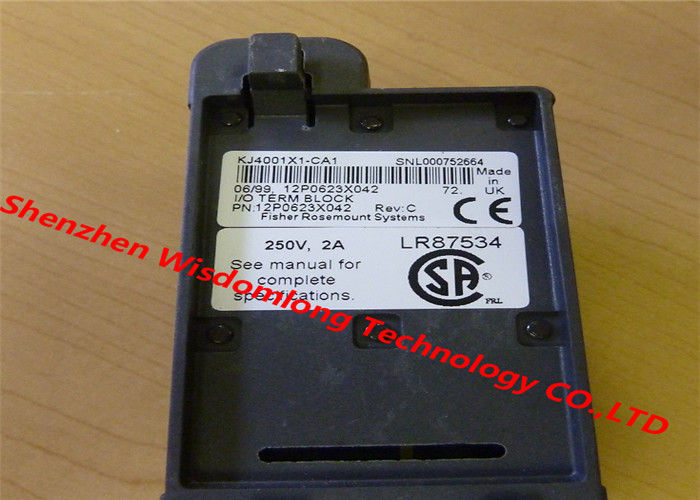

Emerson KJ4001X1-CA1 I/O Terminal Block Power Interface Module 2 24vdc
KJ4001X1-CA1 Description
The KJ4001X1-CA1 is a fused, field-wired I/O terminal block designed exclusively for Emerson’s DeltaV™ Distributed Control System (DCS) electronic marshalling (CHARMS I/O) architecture. It serves as a critical interface between DeltaV I/O modules and field sensors/actuators, providing integrated overcurrent protection, secure signal termination, and hazardous-area compatibility for digital and discrete I/O circuits. Built for industrial process control environments, it supports Zone 2 / Div. 2 hazardous locations, enables direct field wiring, and ensures reliable signal integrity while protecting system and field devices from short-circuit and overload damage. It is non-hot-swappable and requires power-down for installation/removal, with no user-serviceable internal components.
KJ4001X1-CA1 Key Features
- Integrated Fused Protection: Built-in per-channel fuses for overcurrent/short-circuit protection, eliminating external fuse panels and simplifying wiring.
- Hazardous Area Certified: ATEX / IECEx / FM approved for Zone 2, Div. 2 (II 3G Ex ec IIC Gc, T4), suitable for oil, gas, chemical, and refining installations.
- DeltaV CHARMS Compatibility: Seamlessly mates with DeltaV CHARM I/O modules, supporting discrete digital I/O (DI/DO) field signal termination.
- Robust Industrial Design: IP20 protection, vibration/shock resistant, rated for ISA-S71.04 Class G3 harsh industrial environments (high dust, corrosive gases).
- Secure Field Wiring: Screw-terminal connections for reliable field wiring, supporting 24 VDC field circuits up to 250 VAC / 60 VDC per channel.
- Compact DIN-Rail Mount: Standard 35 mm DIN-rail mounting for easy installation in control cabinets, space-efficient design.
- No Calibration Required: Maintenance-free operation, no internal adjustments or calibration needed for reliable long-term performance.
- Global Safety Approvals: CE, ATEX, IECEx, FM, CSA certified for worldwide industrial deploymentEmerson.
KJ4001X1-CA1 Materials & Applications
Materials
- Housing: Flame-retardant, high-strength engineering thermoplastic (UL94 V-0), impact-resistant, chemical-resistant, IP20 rated.
- Terminals: Nickel-plated brass screw terminals, corrosion-resistant, secure wire retention, suitable for solid/stranded field wiring.
- Fuse Elements: Industrial-grade fast-acting fuses, rated for per-channel overcurrent protection, matched to DeltaV I/O module ratings.
- Internal Circuitry: High-temperature FR-4 PCB with gold-plated contacts, ESD protection, stable under EMI/EMC industrial conditions.
- Mounting Base: Reinforced plastic DIN-rail clip, secure locking to 35 mm standard DIN rail, vibration-resistant.
Typical Applications
- Oil & Gas: Refineries, offshore platforms, pipelines, compressor stations, process monitoring and safety shutdown loops.
- Chemical & Petrochemical: Reactor control, distillation columns, storage tank monitoring, hazardous area discrete I/O.
- Power Generation: Thermal power plants, combined cycle plants, boiler control, turbine auxiliary systems.
- Pharmaceuticals & Food Processing: Cleanroom automation, batch process control, material handling interlocks.
- Water & Wastewater: Pump stations, valve control, level/flow monitoring, SCADA-connected discrete I/O.
- General Industrial Manufacturing: Metal processing, packaging lines, material handling, machine safety interlocks.
KJ4001X1-CA1 Important Parameters
| Parameter |
Specification |
| Part Number |
KJ4001X1-CA1 |
| Product Type |
DeltaV Fused I/O Terminal Block (CHARMS Interface) |
| System Compatibility |
Emerson DeltaV DCS, CHARM I/O Subsystem |
| Protection Rating |
IP20 (rear/side), front open for wiring |
| Hazardous Area Rating |
ATEX: II 3G Ex ec IIC Gc T4; IECEx; FM: Class I Div 2 GP A,B,C,D |
| Fuse Type |
Per-channel fast-acting overcurrent fuses (integrated) |
| Field Voltage Rating |
Max 250 VAC, 60 VDC per channel |
| Field Current Rating |
1 A per channel (fused) |
| Mounting |
35 mm standard DIN rail |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5–95% RH (non-condensing) |
| Vibration Resistance |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Shock Resistance |
10 g half-sine wave, 11 ms duration |
| Environmental Class |
ISA-S71.04-1985 Class G3 (harsh industrial) |
| Wiring Terminals |
Screw-type, suitable for 24–12 AWG wire |
| Dimensions (W×H×D) |
Approx. 51 × 76 × 51 mm (2.0 × 3.0 × 2.0 in) |
| Weight |
Approx. 0.1 kg (0.22 lbs) |
| Hot-Swappable |
No (power-down required for installation/removal) |
| Certifications |
CE, ATEX, IECEx, FM, CSA, RoHS |
| Maintenance |
No user-serviceable parts, no calibration required |
