High Performance Digital I O Module 1C31113G04 1C31113G05 1C31113G06

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

High Performance Digital I O Module 1C31113G04 1C31113G05 1C31113G06

Large Image :  High Performance Digital I O Module 1C31113G04 1C31113G05 1C31113G06

Product Details:

Place of Origin: UK / Thailand
Brand Name: Emerson
Certification: CE
Model Number: 1C31113G04 1C31113G05 1C31113G06

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5 work days
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Model 1: 1C31113G04 Model 2: 1C31113G05
Model 3: 1C31113G06 Type: Analog Input Electronic Module
Category: Redundant Power Supply Module Brand: Westinghouse Ovation
High Light:

ethernet i o module

,

plc i o modules

Emerson Westinghouse Digital I/O Module 1C31113G04 1C31113G05 1C31113G06 Analog Module





NEW IN STOCK







Quick detail:

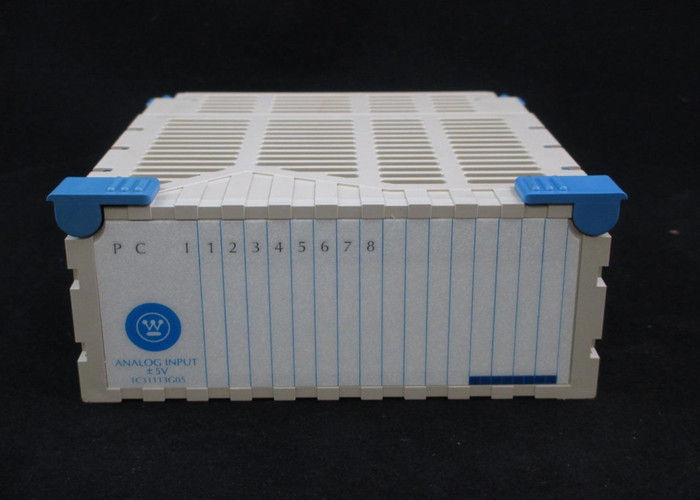

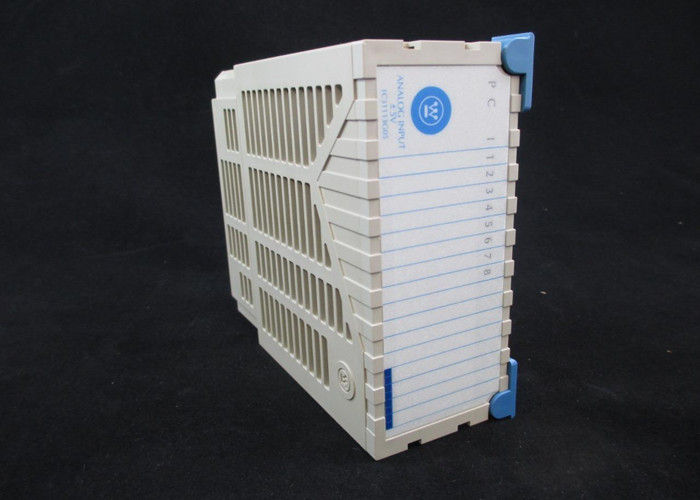

1C31113G04 Ovation Module +/- 1VDC Analog Input Electronic Module

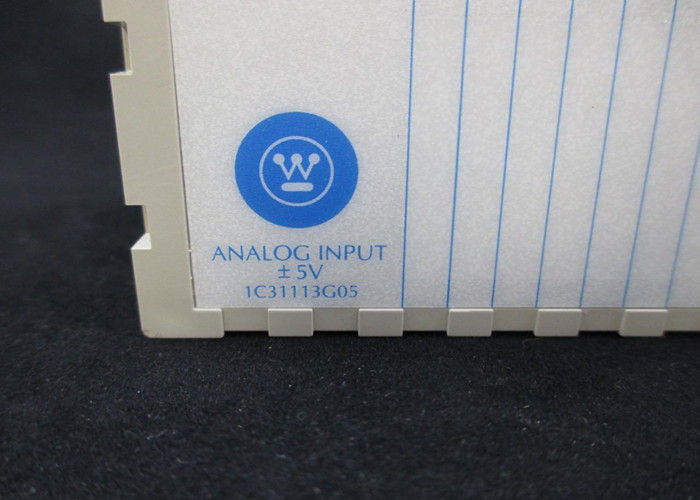

1C31113G05 Ovation Module +/- 5VDC Analog Input Electronic Module


1C31113G06 Ovation Module +/- 10VDC Analog Input Electronic Module





Both NEW and USED are available.





Ovation Local I/O


The Ovation controller can directly support up to 16 independently driven branches of Ovation I/O.
For local I/O, all modules reside in up to four standard cabinets, which are placed side by side. All field wiring leads to these cabinets.

Ovation Local I/O Specifications
Max branches per controller 16 branches
Max I/O modules per branch
8 modules
Max I/O modules per controller
128 modules
Max local I/O bus length 20m (60ft)





Ovation Redundant I/O


Redundant Ovation I/O modules are installed in the same fashion as standard Ovation I/O modules, but
are associated in pairs located in adjacent branches.

The module pairs exchange health, status and I/O information via their personality module interconnections. This approach allows the user to take advantage of I/O redundancy by wiring the field
terminations into a single terminal block on the primary I/O base, with no special control strategy configuration required.

Redundancy is applied at I/O configuration time, and during normal operation, the Ovation system
 automatically reads and compares the I/O channels of both modules and determines which value to use.
When a fault is detected the system automatically switches to the backup module thus increasing reliability and availability of the process inputs or outputs.

Refer to the Ovation Redundant I/O Overview data sheet for complete details.


Ovation Remote I/O


Ovation remote I/O places I/O modules close to field devices, in contrast to local I/O modules. Remote I/O
uses redundant fiber optic cables that stretch from the controller cabinet to up to 4000 meters away -to a
cabinet that houses the I/O modules. By placing the I/O modules closer to the transmitters and actuators, field cables can be made shorter. This significantly reduces the amount of wiring required throughout the plant, delivering substantial cost savings significantly. Interfaces for both local and a remote I/O can reside
the same controller. Multiple remote I/O can be connected to the same controller.

The remote I/O system is easy to configure and requires no database modification. Again, I/O selection
type, whether local or remote, is made during configuration on the controller.

The remote I/O system offers a level of reliability unmatched in the industry through, redundant communications, periodic communication diagnostics and error correction. When remote I/O is implemented in a controller, the remote I/O subsystem provides a flexible, cost-effective means to distribute I/O modules to strategic locations throughout the plant.

Remote I/O Specifications
Max. remote nodes 8 nodes
Max. I/O modules per node 64 (8 branches with 8 modules for each branch)
Max. I/O modules per controller 512 modules
Remote I/O bus configuration 10 BASE-FL Ethernet physical layer with a proprietary protocol
Remote I/O cycle time <100 microseconds (no repeaters)
Standard remote communications media Fiber optic
Maximum cable length for 850 nm fiber-optic media 4 km. Distances of 6 km can be achieved with repeaters (up to two repeaters)




Other Models:


1B30023H02 I/O Bus Terminator Ovation
1B30035H01 I/O Termination Base Ovation
1B30047G01 Temp Compensation Cover Ovation
1C31107G01 24V/48V Digital Input (EM) Ovation
1C31107G02 125V Digital Input (EM) Ovation
1C31110G01 Single Ended SOE/Digital Input (PM) Ovation
1C31110G02 Differential SOE/Digital Input (PM) Ovation
1C31110G03 48VDC Contact Wetting SOE/Digital In (PM) Ovation
1C31113G01 +/- 20mV Analog Input (EM) Ovation
1C31113G02 +/- 50mV Analog Input (EM) Ovation
1C31113G03 +/- 100mV Analog Input (EM) Ovation
1C31113G04 +/- 1VDC Analog Input (EM) Ovation
1C31113G05 +/- 5VDC/0-20mA Analog Input (EM) Ovation
1C31113G06 +/- 10VDC Analog Input (EM) Ovation
1C31116G01 mV/VDC non-compensated Analog Input (PM) Ovation
1C31116G02 0-20mA Field Powered Analog Input (PM) Ovation
1C31116G03 0-20mA Locally Powered Analog Input (PM) Ovation
1C31116G04 mV Compensated Analog Input (PM) Ovation
1C31122G01 Digital Output (EM) Ovation
1C31125G01 Digital Output (PM) Ovation
1C31125G02 Digital Output (PM) Ovation
1C31125G03 Digital Output (PM) Ovation
1C31129G01 0-5VDC Analog Output (EM) Ovation
1C31129G02 0-10VDC Analog Output (EM) Ovation
1C31129G03 0-20mA Analog Output w/Diagnostics (EM) Ovation
1C31129G04 0-20mA Analog Output w/o Diagnostics (EM) Ovation
1C31132G01 Analog Outputs (PM) Ovation
1C31142G01 Contact Input (EM) Ovation
1C31147G01 5/12 and 24/48V Medium Speed Pulse (EM) Ovation
1C31147G02 5V High Speed (EM) Ovation
1C31150G01 Local Power Pos Common Pulse Acc. (PM) Ovation
1C31150G02 Local Power Neg Common Pulse Acc. (PM) Ovation
1C31150G03 External Power Pulse Accumulator (PM) Ovation
1C31157G01 24V/48V Sequence of Events (EM) Ovation
1C31157G02 125V Sequence of Events (EM) Ovation
1C31157G03 48V On-Card Contact Wetting SOE (EM) Ovation
1C31161G02 RTD (EM) Ovation
1C31164G02 RTD (PM) Ovation
1C31166G01 Link Controller RS232/RS485 (EM) Ovation
1C31169G01 RS232 Link Controller (PM) Ovation
1C31169G02 RS485 Link Controller (PM) Ovation
1C31174G01 0-10V AI; 0-10V AO Loop Interface (EM) Ovation
1C31174G02 0-5V AI; 0-10V AO Loop Interface (EM) Ovation
1C31174G03 0-20mA Loop Interface (EM) Ovation
1C31174G04 0-5V Electric Drive (EM) Ovation
1C31177G01 Voltage AO Loop Interface (PM) Ovation
1C31177G02 mA Local Shield Loop Interface (PM) Ovation
1C31177G03 mA Remote Shield Loop Interface (PM) Ovation
1C31179G01 Master - Attachment Unit Electronics Ovation
1C31179G02 Master - Attachment Unit Electronics Ovation
1C31181G01 Master - Attachment Unit PMOD - 2N (2km) Ovation
1C31181G02 Master - Attachment Unit PMOD - 4N (2km) Ovation
1C31181G03 Master - Attachment Unit PMOD - 2N (3.7km) Ovation
1C31181G04 Master - Attachment Unit PMOD - 4N (3.7km) Ovation
1C31189G01 Speed Detector Electronics Module Ovation
1C31192G01 Speed Detector Personality Module Ovation
1C31194G01 Valve Positioner Electronics Module Ovation
1C31194G02 Valve Positioner Electronics Module Ovation
1C31197G01 Valve Positioner Personality Module Ovation
1C31197G02 Valve Positioner Personality Module Ovation
1C31197G03 Valve Positioner Personality Module Ovation
1C31197G04 Valve Positioner Personality Module Ovation
1C31199G01 Servo Driver Electronics Module Ovation
1C31199G02 Servo Driver Electronics Module Ovation
1C31199G03 Servo Driver Electronics Module Ovation
1C31201G01 Servo Driver Personality Module Ovation
1C31201G02 Servo Driver Personality Module Ovation
1C31203G01 Remote Node Controller EMOD Ovation
1C31204G01 Remote Node Controller PMOD (Fiber) - 2km Ovation
1C31204G03 Remote Node Controller PMOD (Fiber) - 3.7km Ovation
1C31205G01 Remote Node Base Assy Ovation
1C31206G01 Master - Attachment Unit Base Assy Ovation
1C31219G01 Relay Output Logic Module Ovation
1C31222G01 Relay Output Base - High Power Ovation
1C31222G01 Relay Output Base - High Power Ovation
1C31223G01 Relay Output Base - Low Power Ovation
1C31224G01 4-20mA Analog Input EMOD Ovation
1C31224G02 1V Analog Input EMOD Ovation
1C31227G01 4-20mA Analog Input PMOD Ovation
1C31227G02 1V Analog Input PMOD Ovation
1C31232G01 DI 24/48VDC Single-Ended E-Mod Ovation
1C31232G02 DI 24/48VAC Differential E-Mod Ovation
1C31232G03 DI 120VAC/DC Differential E-Mod Ovation
1C31233G01 SOE 24/48VDC Single-Ended E-Mod Ovation
1C31233G02 SOE 24/48VDC Differential E-Mod Ovation
1C31233G03 SOE 120VDC Differential E-Mod Ovation
1C31233G04 SOE 48VDC On-Board E-Mod Ovation
1C31234G01 DI 48VDC On-Board E-Mod Ovation
1C31238H01 P-Mod Base Cover Ovation
1P00028G01 Remote Node Transition Panel Ovation
1X00014H01 I/O Base with Connector Ovation
1X00046H01 Copper to Fiber Media Converter Ovation
1X00046H02 Copper to Fiber Media Converter Ovation
1X00055H01 Media Converter Rack Mount Chassis w/PS Ovation
1X00061H01 Dual Homed Copper Ethernet NIC for Controller Ovation
1X00093G42 Ethernet Switch (24 copper ports) Ovation
1X00093H04 Ethernet Switch Ovation
1X00093H05 Ethernet Switch Ovation
1X00093H08 Ethernet Switch Ovation
1X00093H09 Ethernet Switch Ovation
1X00095H01 Ethernet Switch Ovation
1X00097H01 Power Supply Ovation
1X00102H01 Power Distribution Board MagneTek WH1-PDM Ovation
1X00133H01 PCI Fast Ethernet DAS NIC, W2K, XP Ovation
1X00161H01 Fast Ethernet NIC - Dual Port for Controller ZYNX Ovation
1X00185H01 PC BD, SUN XVR-100 GRAPHICS Ovation
1X00188H01 HART High Performance Analog Output Personality Foam Insert Ovation
1X00377H01 Cable Management Bar Ovation
1X00415H01 Ovation Network Interface Card, Single Port Ovation
1X00474G01 Cisco 2801 Field LAN Router for GE Mark VI Interface Ovation
1X00474G02 Cisco 2801 Field LAN Router Ovation
1X00480G01 Cisco 2811 Plant LAN Router Ovation
3A99132G01 PC Board, PCPS Power Supply Ovation
3A99132G02 PCPS:3PCPS04 W3-DPU-PS Assy Ovation
3A99141G01 Q-Line Interface Ovation
3A99158G01 Ovation Local I/O Interface Ovation
3A99158G02 PCRL: 4PCRL2 PCI TO R-LINE ASY Ovation
3A99190G01 Ovation Remote I/O Interface Ovation
3A99199G01 Ovation Power Supply backplane Ovation
3A99200G01 PCI Backplane Ovation
3A99200G02 PCI Backplane Ovation
3A99245G01 Ovation Grounding Bar Ovation
3A99266G01 Local I/O Transition Panel Ovation
3A99419G03 Ovation Cabinet Ground Cable Ovation
3A99419G06 Ovation Cabinet Ground Cable Ovation
3A99989G09 KIT,COLOR PRINTER,TALLY/GENICOM 2265 Ovation
3A99989H06 Tally/Genicom 2265 Printer - Color Ribbon Ovation
3A99989H07 Tally/Genicom 2265 Printer - Black Ribbon Ovation
3A99989H13 Tally/Genicom 2265C Printer Ovation
4D33888G01 AC Distribution Panel Ovation
4D33900G19 Ovation DIN RAIL Power Supply Assy Ovation
4D33934G01 Line Filter Assy Ovation
4D33935H01 Ovation Mylar Operator Keyboard Ovation
4D33942G01 Chassis/Metalwork/Fan Ovation
4D33942G02 Chassis/Metalwork/Fan Ovation
4D33945G01 Ovation Controller (Chassis/Metalwork/Fan) Ovation
5A22410H01 Solid State AC Relay Panel Ovation
5A22410H02 Solid State DC Relay Panel Ovation
5A22411H01 16pt Relay Panel 10A, C Ovation
5A22412H01 8pt Relay Panel,10A Ovation
5A22727G02 Ovation Consumables Kit - Fuses Only Ovation
5A22727G03 Ovation Consumables Kit Ovation
5A22971G01 KIT, CABINET TEMP MONITOR Ovation
5A22982G01 KIT,OVATION RMT MSTR RED CTLR Ovation
5A22982G02 KIT,OVATION RMT MSTR RED CTLR Ovation
5A22982G03 KIT,OVATION RMT MSTR RED CTLR Ovation
5A23111G02 AC POWER ADD-ON KIT Ovation
5A23186G01 KIT, 50WATT POWER SUPPLY Ovation
5A23398G01 RELAY BASE CONTACT WETTING KIT Ovation
5A23743G01 HART 24VDC PWR SUPPLY KIT Ovation
5A23831G01 OV INTERPOSING INPUT RELAY ASY Ovation
5A23831G04 OV INTERPOSING INPUT RELAY ASY Ovation
5A26129G01 Dual AC Power Cord Cable Ovation
5A26137G01 Power Distribution Harness Ovation
5A26137G02 Power Distribution Harness Ovation
5A26137G03 Power Distribution Harness Ovation
5A26137G04 Ovation Cable Ovation
5A26141G05 Cable Controller to Transition Panel Ovation
5A26144G03 Ground Cable Ovation
5A26147G10 Remote I/O AUI Cable Ovation
5A26148G14 Relay Cable for 5A22410 and 5A22411 Ovation
5A26149G14 Relay Cable for 5A22412 Ovation
5A26355G01 X-Terminal Kit Ovation
5A26355G02 X-Terminal Kit Ovation
5A26355G03 X-Terminal Kit Ovation
5A26355G04 X-Terminal Kit Ovation
5A26355G05 X-Terminal Kit Ovation
5A26355G06 X-Terminal Kit Ovation
5A26355G07 X-Terminal Kit Ovation
5A26355G08 X-Terminal Kit Ovation
5A26355H13 X-Terminal Keybaord Ovation
5A26371H12 Ovation Door Fan Assy Ovation
5A26371H19 Fan, 24VDC Ovation
5A26371H29 Ovation Door Fan Assy - Hoffman Cabinet Ovation
5A26373H01 Tektronic 350 Printer (for spare parts use 5X00005H01) Ovation
5A26391G04 KIT, CPU PENTIUM W/FLASH DR. Ovation
5A26391G05 KIT, CPU PENTIUM W/FLASH DR. Ovation
5A26391H03 PF5133HX/512 WH3M MMX CPU Board Ovation
5A26420G01 Ovation Operator Keyboard Kit Ovation
5A26420G01 Ovation Operator Keyboard Kit Ovation
5A26420G02 Ovation Operator Keyboard Kit Ovation
5A26420G07 Ovation Operator Keyboard Kit Ovation
5A26420G12 KIT, OVATION OPERATOR'S KYBD. Ovation
5A26430H04 Internal 3.5" Floppy Drive Ovation
5A26430H11 Internal 32x ATAPI CD-ROM Drive Ovation
5A26430H15 128MB Memory Expansion Kit (Ultra 5/10) Ovation
5A26430H20 Internal 20 GB Disk Ovation
5A26431G05 KIT, SUN ULTRA 10 WORKSTATION Ovation
5A26432H02 501-2741 NIC Card for Ultra5 on Ovation Ovation
5A26434H01 PCI PGX Graphics Card Ovation
5A26435H03 128MB RAM Expansion (Ultra 60) Ovation
5A26438G01 HP5000 LaserJet Printer Ovation
5A26438H01 HP5000 LaserJet Printer Ovation
5A26438H04 Toner Cartridge for HP5000/5100 Printer Ovation
5A26453G01 Ethernet Media Converter Ovation
5A26457G01 Ovation Relay Output 16 Form C Ovation
5A26458G01 Ovation Relay Output 12 Form C Ovation
5A26458G02 Ovation Relay Output 12 Form X Ovation
5A26458G03 Ovation Relay Output 12 User Supplied Relays Ovation
5A26477G01 HP2500CM Color InkJet Printer Ovation
5A26477H02 HP2500CM & HP2600DN Printer - Black Ink Cartridge Ovation
5A26477H03 HP2500CM Printer - Cyan Ink Cartridge Ovation
5A26477H04 HP2500CM Printer - Yellow Ink Cartridge Ovation
5A26477H05 HP2500CM Printer - Magenta Ink Cartridge Ovation
5A26479G01 Ovation Upgrade Kit - 2 PCQL Ovation
5A26479G02 Ovation Upgrade Kit - 4 PCQL Ovation
5A26479G03 Ovation Upgrade Kit - PS Rack Ovation
5A26479G06 OVATION MIGRATION KIT Ovation
5A26479G07 OVATION MIGRATION KIT Ovation
5A26481G01 PCQL to Q-line Adapter ribbon cable Ovation
5A26499G01 KIT,22"MONITOR MIT DIA + 200 Ovation
5X00001H15 Video Card, Dual CRT PCI Bus for NT Ovation
5X00034G01 Individual Fused Personality Module Ovation
5X00044G01 O-Shell,AI T/C Comp RTD Kit Ovation
5X00058G01 HART Analog Input Module (EM) Ovation
5X00059G01 HART Analog Input Module (PM) Ovation
5X00062G01 HART Analog Output Module (EM) Ovation
5X00063G01 HART Analog Output Module (PM) Ovation
5X00070G01 4-20mA Analog Input Module (EM), High Speed Ovation
5X00070G02 1V Analog Input Module (EM), High Speed Ovation
5X00070G03 10V Analog Input Module (EM), High Speed Ovation
5X00070G04 0-1mA Analog Input Module (EM), High Speed Ovation
5X00082H12 Sony 1/2 Data Cartridge Ovation
5X00085G01 MEDIA CONVERTER CHASSIS MTG KIT Ovation
5X00085G02 MEDIA CONVERTER CHASSIS MTG KIT Ovation
5X00105G01 Ovation Control Board Ovation
5X00105G62 Kit, CPU P266, 64MB RAM, 32MB Flash, FDDI/CDDI Ovation
5X00105G63 Kit, CPU P266, 64MB RAM, 32MB Flash, FDDI/CDDI Ovation
5X00105G64 Kit, CPU P266, 64MB RAM, 32MB Flash, PS, FDDI/CDDI Ovation
5X00105G65 Kit, CPU P266, 64MB RAM, 32MB Flash, PS, Ethernet Ovation
5X00105G66 Kit, CPU P266, 64MB RAM, 32MB Flash, Fast Ethernet Ovation
5X00105G67 Kit, CPU P266, 64MB RAM, 32MB Flash, Fast Ethernet Ovation
5X00106G01 High Speed HART Analog Input, EMOD Ovation
5X00109G01 High Speed HART Analog Input, PMOD Ovation
5X00111G01 CABINET POWER DISTRIBUTION KIT Ovation
5X00115H03 Ink Cartridge for HP2600DN - Cyan Ovation
5X00115H04 Ink Cartridge for HP2600DN - Magenta Ovation
5X00115H05 Ink Cartridge for HP2600DN - Yellow Ovation
5X00115H06 Printhead for HP2600DN - Black Ovation
5X00115H07 Printhead for HP2600DN - Cyan Ovation
5X00115H08 Printhead for HP2600DN - Magenta Ovation
5X00115H09 Printhead for HP2600DN - Yellow Ovation
5X00119G01 8-Channel RTD Input EMOD Ovation
5X00121G01 8-Channel RTD Input PMOD Ovation
5X00128G01 22/20" Desktop NEC Monitor w/6ft Cable Ovation
5X00132G01 Power Distribution Module Ovation
5X00167G01 HART High Performance Analog Output Electronic Module Ovation
5X00170G01 HART High Performance Analog Output Personality Module Ovation
5X00178G01 20.1" LCD Monitor Ovation
5X00286H13 2-button Optical corded USB mouse Ovation
5X00290G01 21/20" NEC CRT Ovation
5X00354G01 Ovation Database Server / Domain Controller Station Ovation
5X00355G01 Ovation Operator / Engineer Workstation Ovation
5X00356G01 Ovation Processor Historian Station Ovation
5X00054G01 ADVANCE P.S. ADAPTER KIT Ovation/WDPF






Packaging & Delivery





Packaging Details
Cartons




Delivery Time
Whithin 3-5 days







Our advantage Products:



【Honeywell】Module DCS / PLC



【Emerson / Delta V】Module


【ABB】Input Output Module



【AB】Module / Touch Screen



【Rosemount】Pressure and Temperature Transmitter



【Yokogawa】Pressure Transmitter



【Yaskawa】Servo Drive / Servo Motor


【GE/Fanuc】IC69 Series PLC



【Mitsubishi】Servo Drive / Servo Motor


(Modicon,SMC,SICK,NORGREN,Siemens etc.)













Contact Details
Shenzhen Wisdomlong Technology CO.,LTD

Contact Person: Eva

Tel: 86-13556339616

Send your inquiry directly to us Message not be empty!
