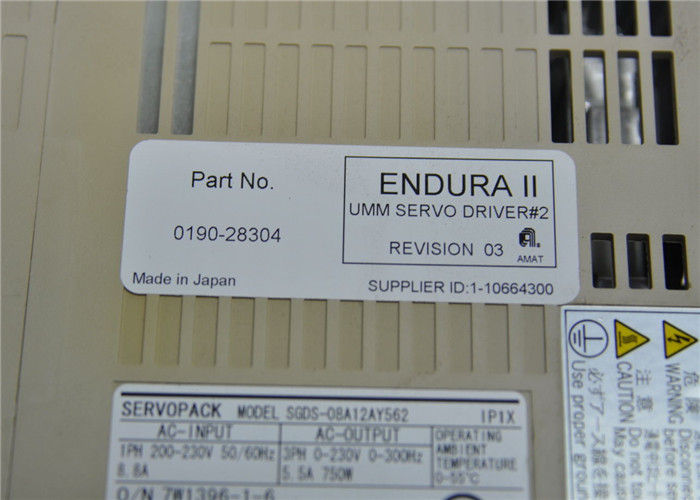

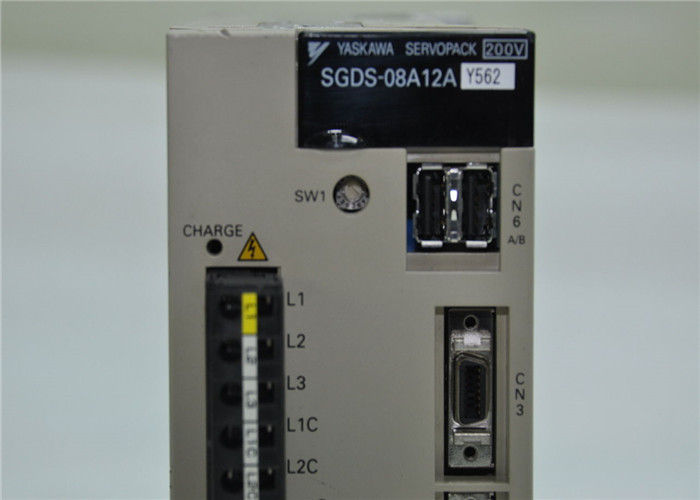

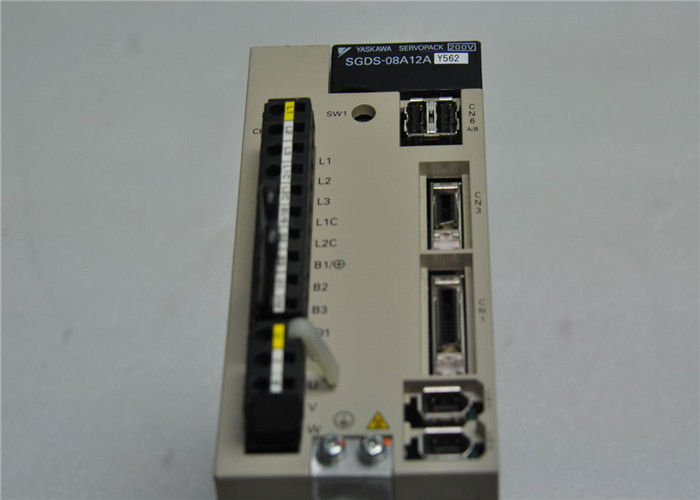

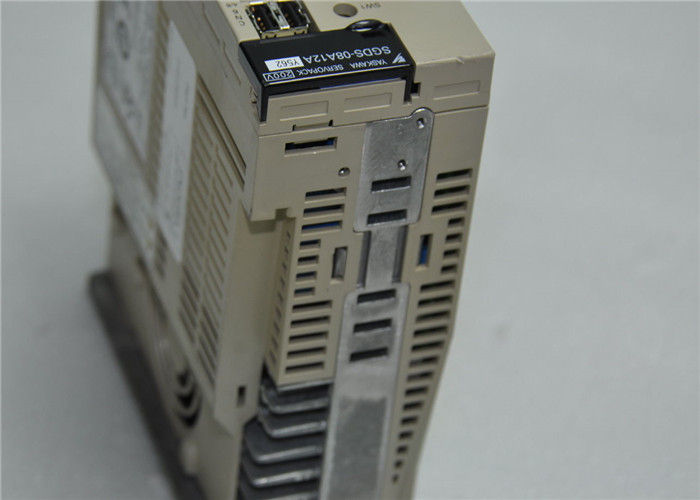

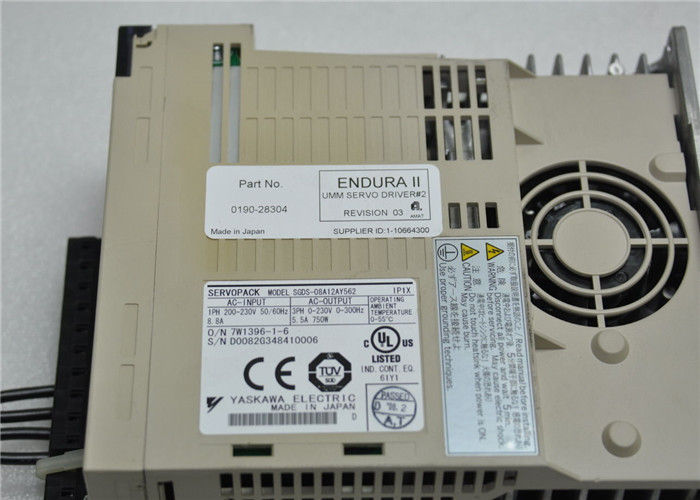

Yaskawa Sgma 3 Series 3 Phase Servo Motor Driver Mechatrolink SGDS-08A12AY562

: Large Image : Yaskawa Sgma 3 Series 3 Phase Servo Motor Driver Mechatrolink SGDS-08A12AY562

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Model Number:	SGDS-08A12AY562

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Yaskawa	Model:	SGDS-08A12AY562
Type:	SERVO DRIVE	Series:	Sigma 3
Weight:	4 Lb 2 Oz	Output:	750 W
Output PH:	3	Output Voltage:	0-230V
Highlight:	electric servo drive , ac servo pack

Industrial Servo MotorYASKAWA SGDS-08A12AY562 SERVO DRIVER 750W Mechatrolink

Quick Details

Brand Name:Yaskawa

Model Number:SGDS-08A12AY562

Input Voltage: 200-230V

Input Current: 8.8A

Input Frequency:50/60HZ

Input PH : 1

Output Power : 750W

Output Voltage: 0-230V

Output Current: 5.5A

Output Frequency:0-300Hz

Output PH :3

Temperture: 0-55

Place of Origin:Japan

Efficiency:IE 1

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-

Westinghouse Modules 1C-,5X- Emerson VE-,KJ-

Honeywell TC-,TK- Fanuc motor A0-

Rosemount transmitter 3051- Yokogawa transmitter EJA-

Contact person: Anna

E-mail: wisdomlongkeji@163.com

Cellphone: +0086-13534205279

Similar Products

SGMAH-02BAA21 SGMAH-A6AAA4C SGMAH-A3AAA41 SGMAH-01AAA21
SGMAH-08AAA21 SGMAH-08AAF41 SGMAH-02AAA41 SGMAH-02AAA21
SGMAH-08AAA41 SGMAH-04AAA41 SGMG-05A2AB SGMG-30A2AB
SGMG-44A2AB SGMG-09A2AAB SGMG-06A2B SGMG-09VSAB
SGMG-09A2ACS SGMG-05AWABB SGMG-09A2AC SGMG-30A2RAF
SGMG-20A1U-HS21 SGMG-20A2A SGMG-05VSABS SGMG-30ASRAB
SGMG-13ASR SGMG-09V2AAS SGMG-09AWAB SGMG-09VSACS
SGMG-09VWW-NJ12 SGMG-09VSA13 SGMG-44AWA-NJ12
SGMGH-05ACC21 SGMGH-05VSABS SGMGH-44ACA61
SGMGH-05DCA61 SGMGH-20ACA61 SGMGH-09ACA61
SGMGH-44CA-TV11 SGMGH-30ACA21 SGMGH-30DCA61
USASEM-02FJ12 USASEM-02FJ12 USASEM-15FJ11
USASEM-03CFJ11 USASEM-05FJ12 USASEM-08FJ12
USASEM-01CF12 USAFED-30-FJ11 USAFED-09-FJ11
USAFKD-50-FJ11 USAREM-01CF J12 SGM-08A3F J43
SGM-08AAF J12 SGM-08A3F J53 SGM-08A2F J34
SGM-02A3F J73 SGMAH-01AAA-FJ21 SGMG-75V6V-FJ11
SGMS-70A6V-FJ11 SGM-01B3FJ12 R404-011EL27 RM-H6A6ZMR039

Connecting to Peripheral Devices
This section shows a standard example of connecting Σ-Series products to peripheral devicesand briefly explains how to connect to each peripheral device.
NOTE Read the following notes before wiring:
• Connect only one cable to one terminal. Never connect two cables to one terminal.
• Do not solder the cable.
• Peel back the cable shield by about 10mm (0.39in.) min. Then insert the cable into the terminal securely and tighten the screw. Never leave the bare wires outside of the termianl.
• When the cable is inserted into the flat terminal, use the following ferrules. Non−insulated ferrules, 2.5mm2 or less (Made by PHOENIX CONTACT)
<Reference> Terminal block type: FRONT 2.5H/SA5

Form a power ON sequence as follows:
a) Form a power ON sequence so that the main power is turned OFF when a servo alarm signal is output. (See the circuit diagram shown on the previous page.)
b) Hold down the power ON push-button for at least two seconds. The Servopack outputs
a servo alarm signal for approximately two seconds or less when the power is turned ON. This operation is required to initialize the Servopack.

NOTE

After turning the power OFF, do not touch the power terminals for 5 minutes. High voltage may remain in the Servopack.
Avoid frequently turning the power ON and OFF. Since the Servopack has a capacitor in the power supply, a high charging current flows (for 0.2 second) when the power is turned ON. Therefore, frequently turning the power ON and OFF causes the main power devices (such as capacitors and fuses) to deteriorate, resulting in unexpected problems.
