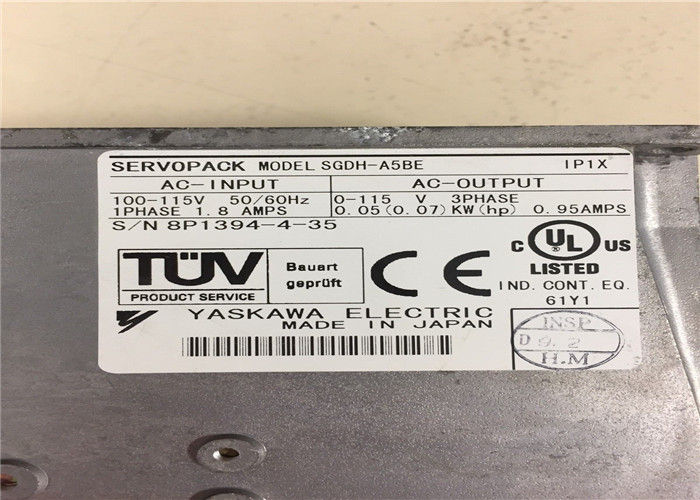

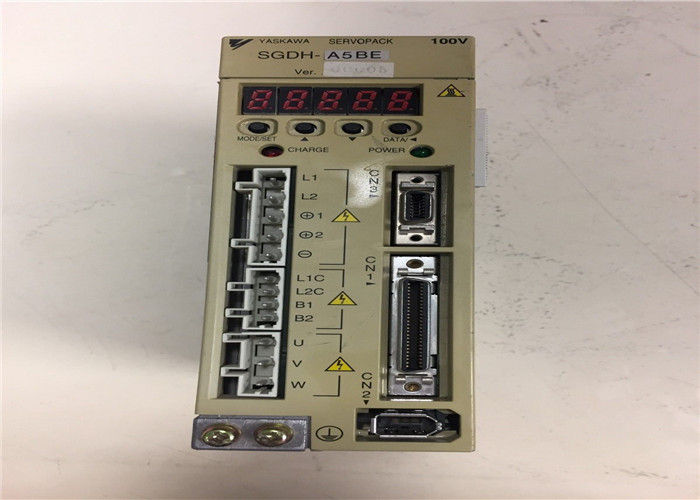

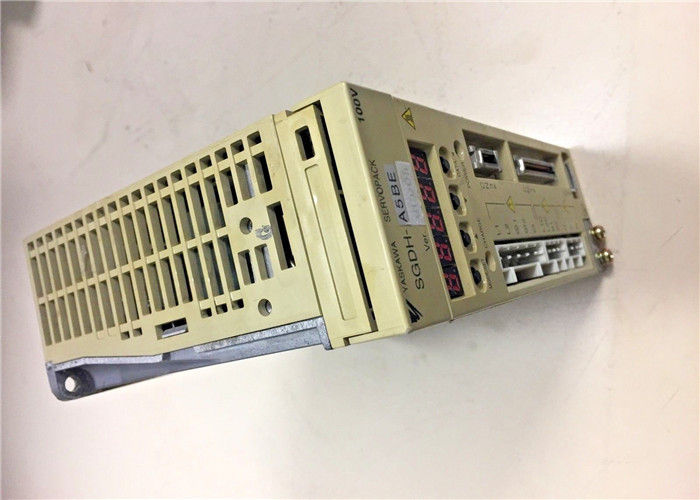

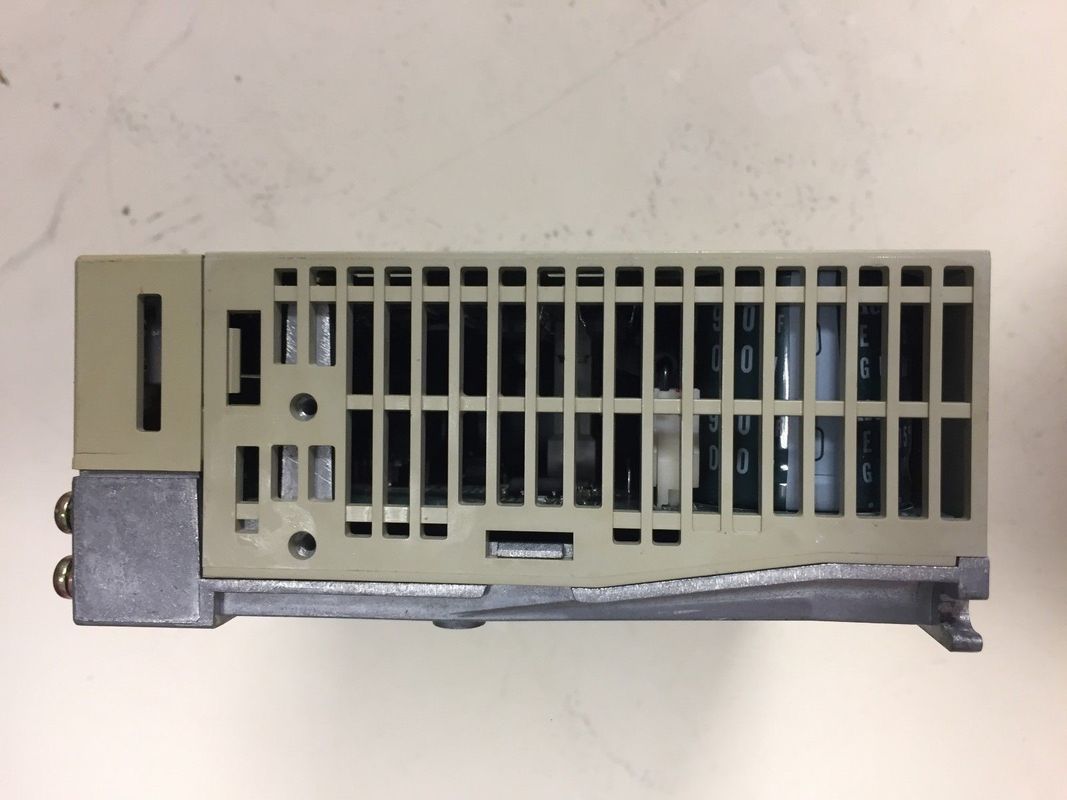

High Reliable 50/60HZ Yaskawa ServoPack SGDH-A5BE 1.8AMPS 100-115V

Industrial Servo Drives Yaskawa SGDH-A5AE Servo Pack 0.0.5(0.07)KW 50/60HZ

Quick Details

Brand Name:Yaskawa

Model Number: SGDH-A5BE

Input Voltage:100-115V

Input AMPS: 1.8

Input Frequency:50/60HZ

Input PH : 1

Series : Sigma 2 (Σ-II Series)

Weight: 2lb

Output Power : 0.05(0.07)KW

Output Voltage: 0-115V

Output AMPS: 0.95

Output PH :3

Place of Origin:Japan

Efficiency:IE 1

OTHER SUPERIOR PRODUCTS

Similar Products
SGDH-A3AE
SGDH-A5AE
SGDH-01AE
SGDH-02AE
SGDH-04AE
SGDH-08AE
SGDH-15AE
Threephase
SGDH-05AE
50 60 12  40
SGDH-08AE
SGDH-10AE
SGDH-15AE
SGDH-20AE
SGDH-50AE
SGDH-60AE
SGDH-75AE
SGDH-1AAE
SGDH-1EAE
SGDH-A3BE
SGDH-01BE
SGDH-02BE

Capacity prior to derating. If regeneration power requirements exceed internal capacity of the amp, install an external regeneration resistor (reference “Minimum Allowable
Resistance”. Be sure to derate wattage of external resistor to 20% or less (natural convection) and to 50% or less with forced air cooling.
** Provided externally by JUSP-RA04
*** Provided externally by JUSP-RA05

Component Description (E) Part Number Comments Item Class
Hand-held Digital
Operator Panel
JUSP-OP02A-1andJZSP-CMS00-1
Portable unit with 1m adapter cable
for Sigma IStock
Absolute Encoder Battery JZSP-BA01 3.6V, 1000mAh (lithium battery)
Software Interface Cable — YS-12 Pre-wired 2.0m cable with
9-pin connector
SigmaWin+ Software JZSP-WP0001
Minimum Recommended System
Requirements Pentuim 200 MHz,64MB RAM, 200MB hard drive,CDROM Drive, RS-232 or RS-422
port, Screen rsolution 800x600 w/256 colors, and Windows
95,98,NT4.0,2000,ME. (WindowsXP planned)
DC Reactor
(for suppressing harmonicsin the power supply)
50 Ω, 70W for A3, A5, 01, 02,
04, AND 08 AMPS RH120-50ohmJ
This is a general purpose
regenerative unit.*
Caution: Proper set-up is necessary
to avoid equipment damage. Stock
NEMA Flange Adapter — SGM-N23
For 30, 50, and 100W SGMAH
motors only. Complies to NEMA 23
mounting standard.
