| Brand: | TOPWORX | Models: | TXP-E20GNPM |
|---|---|---|---|
| Origin: | America | Electrical Rating: | 4A@120VAC |
| Contact Type: | Gold-Flashed, Dry-Contact | Contact Form: | SPDT |
| High Light: | industrial programmable controller,industrial automation using plc |
||

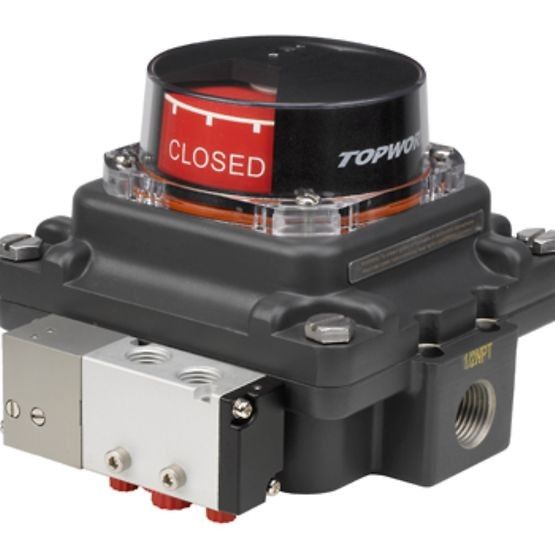

TopWorx™ T-Series switchboxes deliver outstanding value by providing full functionality in compact, direct-mount enclosures. Available with a variety of position sensors, integral solenoid valves, and bus networks, the T-Series is suitable for use in all hazardous areas and carry IECEx, ATEX, and UL certifications.
MATERIALS OF CONSTRUCTION
| Enclosure | Cast A360 aluminum with chromate conversion coating inside & out, epoxy coated exterior rated for 1,000 hrs salt spray per ASTM B117 |
| Fasteners |
304 Stainless Steel standard 316 Stainless Steel optional |
| Shaft |
304 Stainless Steel standard 316 Stainless Steel optional |
| Shaft Bushing | ASTM C83600 Bronze |
| Indicator Dome | Polycarbonate, UV F1 rated |
| Seals | Silicone/EPDM (Other materials available upon request) |
Fastener Torque Specifications
| Enclosure Housing Bolts | 8 ft-lbs [10.8 N·m] +/- 10% |
| Indicator Dome Screws | 200 in-oz [141 mN·m] +/- 10% |
| Bottom Mounting Holes | 10 ft-lbs [13.6 N·m] +/- 10% |
