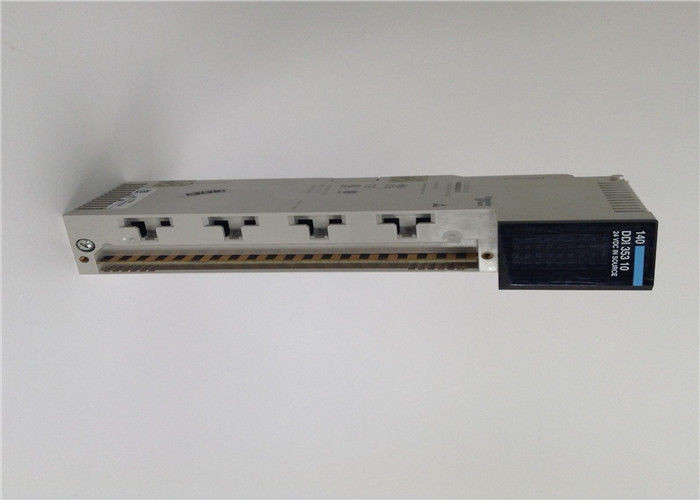

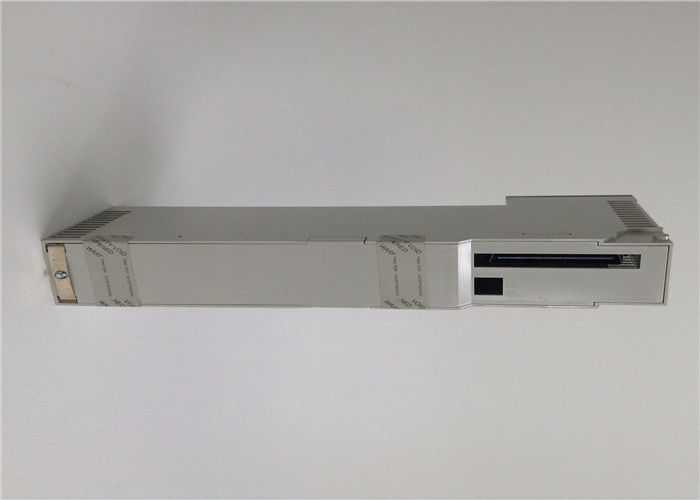

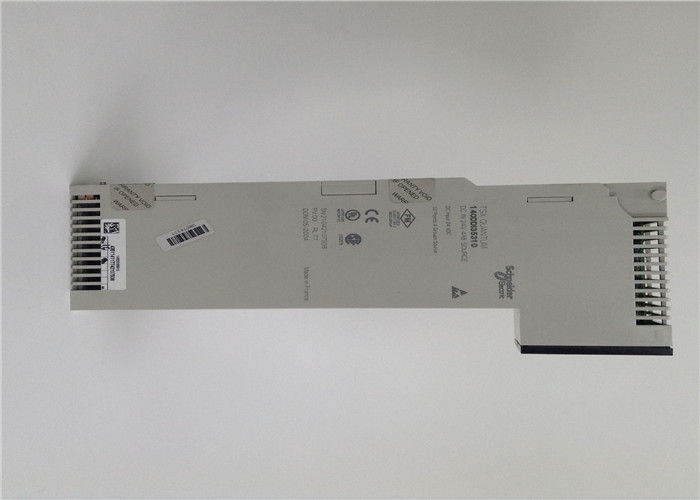

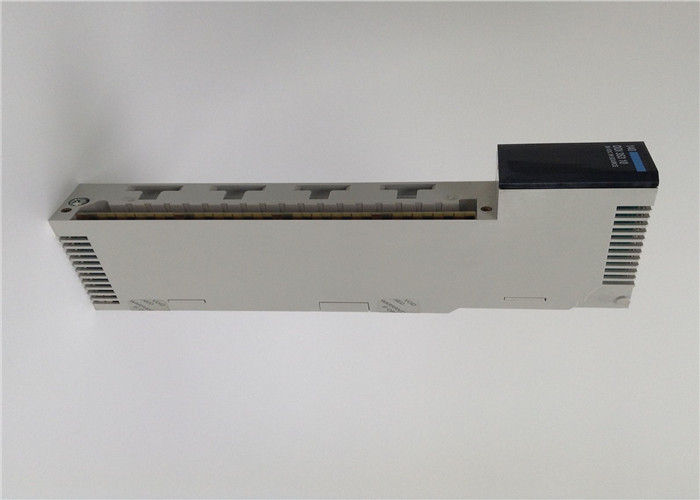

Programmable Automation PLC Programmable Logic Controller 140DDI35310 Schneider

: Large Image : Programmable Automation PLC Programmable Logic Controller 140DDI35310 Schneider

Product Details:

Place of Origin:	FR
Brand Name:	Schneider
Model Number:	140DDI35310

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Schneider	Model:	140DDI35310
Palce Of Origin:	FR	Type:	Processor/Controller
Module Format:	Standard	Marking:	GE
Pin Number:	32 Points	Current:	24V
High Light:	ethernet plc controllers , industrial automation using plc

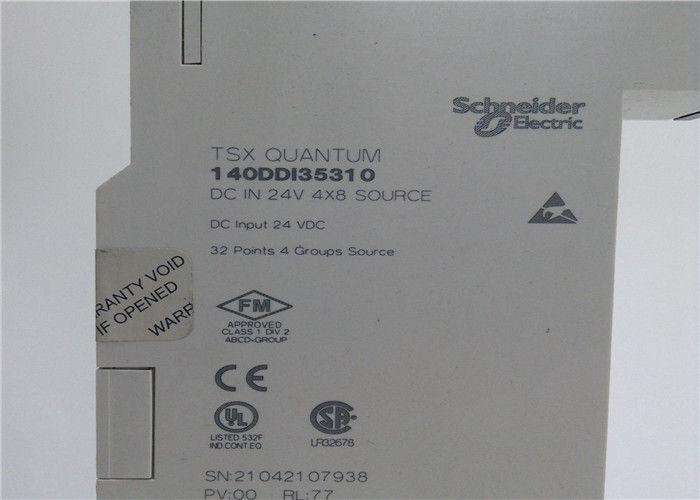

Programmable Automation Controller 140DDI35310 SCHNEIDER ELECTRIC MODICON Input 24V

Discrete Input Module Modicon Quantum - 32 I - 24 V DC

Quantum | 140DDI35310 | Modicon | 140 DDI 353 10 | DC INPUT 24VDC 4X8 SOURCE

The 24 VDC 4x8 True Low Input module accepts 24 VDC inputs and is for use with sink output devices. When field wiring the I/O module, the maximum wire size that should be used is 1-14 AWG or 2-16 AWG; the minimum size is 20 AWG. The field wiring terminal strip (Modicon #140 XTS 002 00) must be ordered separately. (The terminal strip includes the removable door and label.)

Specifications

Manufacturer:	Modicon Quantum
Series:	Quantum I/O
Weight:	Ask
Product or component type:	Low voltage dc discrete input modules
Discrete input number:	32
Group of channels:	4
Logic input:	Negative (source)
Discrete input voltage:	24 V DC
Input voltage limits:	19.2...30 V
Voltage state1 guaranteed:	-30...-15 V DC
Voltage state 0 guaranteed:	-5...0 V DC
Current state 1 guaranteed:	>= 2.5 mA at Us = - 14 V
Current state 0 guaranteed:	<= 0.5 mA
Addressing requirement:	2 input words
Input impedance:	2400 Ohm
Leakage current:	200 mA at Us = 5.5 V and Uin = 4 V
Absolute maximum input:	50 V during 1 ms decaying pulse
	30 V continuous
Response time:	<= 1 ms from state 1 to state 0
	<= 1 ms from state 0 to state 1
Protection type:	Input protection by resistor limited
Power dissipation:	1.5 W + (0.26 x number of points on)
Isolation between group and bus:	1780 Vrms for 1 minute
Isolation between group:	500 Vrms for 1 minute
Local signalling:	32 LEDs green input status
	1 LED red external fault detected (F)
	1 LED green bus communication is present (Active)
Marking:	CE
Bus current requirement:	330 mA
Module format:	Standard
