Rosemount 3051 Pressure Temperature Transmitter Smart DP Cell 3051DP 3051GP

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

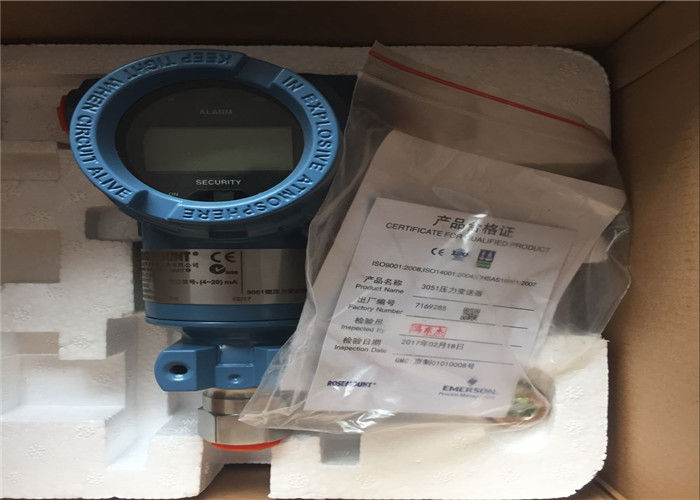

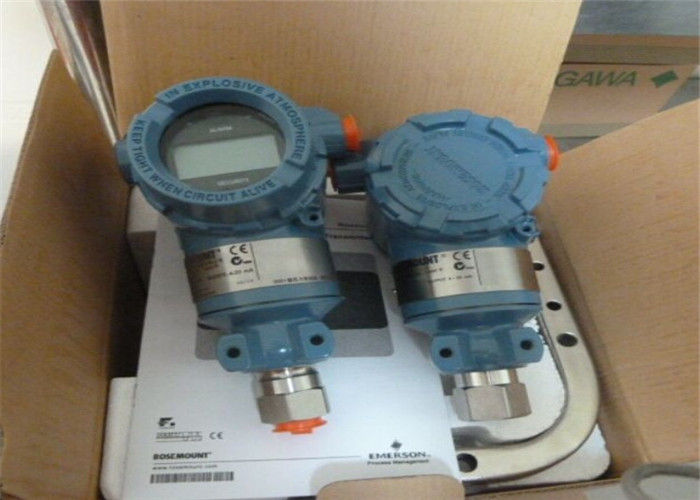

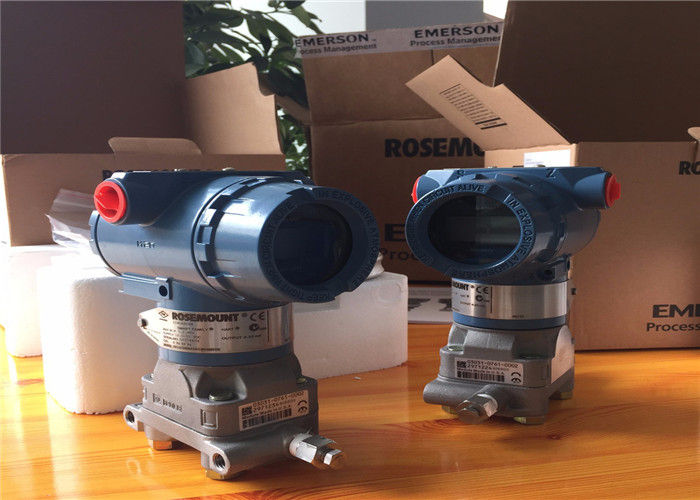

Rosemount 3051 Pressure Temperature Transmitter Smart DP Cell 3051DP 3051GP

Large Image :  Rosemount 3051 Pressure Temperature Transmitter Smart DP Cell 3051DP 3051GP

Product Details:

Place of Origin: Singapore
Brand Name: Emerson-Rosemount
Certification: CO
Model Number: 3051DP 3051GP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 600 USD
Packaging Details: New Original Box
Delivery Time: 1-2 week
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Category: Pressure Temperature Transmitter Type: Pressure Transmitter
Installation: Simplified Maintenance: Reduced
Model: 3051DP 3051GP Brand: Emerson-Rosemount
High Light:

differential pressure flow transmitter

,

absolute pressure transmitter

Rosemount 3051 Smart DP Cell Transmitter Pressure Temperature Transmitter 3051DP 3051GP











3051DP 3051GP

















Quick Details




Brand Name:Rosemount



Model Number:3051 3051DP 3051GP



Power Supply:24 V DC



Current Output:4 - 20 mA 2 wires Hart Protocol



Accuracy:+/- 0.1%



Range:0~0.2 kPa to 0~35MPa



electric interface:1/2NPT, M20*1.5



Process connection:1/4NPT or 1/2NPT



Flange Joint:M20*1.5" External thread 1/2-14NPT taper pipe thread



explosion-proof:ExdIICT6



Bracket:Curved or Straight



Product Name:3051 pressure transmitter

























Brand: ROSEMOUNT
Condition: Parts
Model: 3051DP 3051GP1
Supply Voltage (DC): 10.5 - 30 V-DC
Calibration (Min-Max): 0 - 25 IN-H2O
Type: Pressure
Shipping Weight: 7.95 lbs
Shipping Dimensions: 9.50 x 4.50 x 5.50 in
SKU: D539689 (IDN)
Category: Transmitters
Additional Notes: PROBE CONNECTOR CUT





























3051 transmitter technical indicators are as follows:











Name Model Measurement Range Range Ratio Accuracy
Differential Pressure Transmitter 3051CD 0-0.5inH2O to 2000Psi 100:1 0.075%
Gauge pressure transmitter 3051CG 0-2.5inH2O to 2000Psi 100:1 0.075%
Absolute Pressure Transmitter 3051CA 0-0.167Psia to 2000Psi 100:1 0.075%
Absolute Pressure Transmitter 3051TA 0-0.3-1MPsia 100:1 0.075%
Gauge Pressure Transmitter 3051TG 0.3-1MPsig 100:1 0.075%
Level Transmitter 3051L 2.5inH2O-8310H2O 100:1 0.075%
Differential Pressure Transmitter 3051HD 0-0.62kPa to 13800kPa 100:1 0.075%
Gauge pressure transmitter 3051HG 0-0.62kPa to 13800kPa 100:1 0.075%
Differential Pressure Transmitter 3051PD 0-0.62kPa to 248kPa 10:1 0.05%
Gauge pressure transmitter 3051PG 0-0.62kPa to 13800kPa 10:1 0.05%










Model 3051C low power pressure transmitter 6-12V DC power supply, power consumption 18-36mW, 4-20mA output, power consumption is more than 200mW. The 0.8-3.2V and 1-5V outputs are optional.































1, the working principle

During operation, the isolation diaphragm and filling fluid on the high and low pressure sides transfer the process pressure to the filling fluid, and then the filling fluid transfers the pressure to the sensing diaphragm in the center of the sensor. The sensing diaphragm is a tensioned elastic element whose displacement varies with pressure (for GP gauge transmitters, atmospheric pressure is applied to the low pressure side of the sensing diaphragm). AP absolute pressure transmitter, the low pressure side always maintains a reference pressure. The maximum displacement of the sensing diaphragm is 0.004 inches (0.1 mm) and the amount of displacement is proportional to the pressure. The capacitive plates on both sides detect the position of the sensing diaphragm. The difference in capacitance between the sensing diaphragm and the capacitive plate is converted to a corresponding current, voltage or digital HART (High Speed ​​Addressable Remote Transmitter Data Highway) output signal.
















2 product features
·Complete transmitter series
· Measurement range: 0-0.5inH2O to 6000psig
·Small structure, strong, shockproof
·Modular structure
· Damping adjustable
· Multiple options for flexible application
·Intelligent, analog or low power circuits
· Electrical connection and installation: equipped with a variety of process connectors and mounting flanges.
























3  technical specifications:
1, excellent performance: accuracy 0.075% range ratio 100:1
2, differential pressure: calibration range from 0.5inH2O to 2000psi
3, gauge pressure: calibration range from 2.5inH2O to 2000psi
4, absolute pressure: calibration range from 0.167psia to 4000psia
5, process isolation diaphragm: stainless steel, Hastelloy CR, Monel R,  (CD, CG only) and gold-plated Monel
6, compact design, sturdy and lightweight, easy to install

























Item Details:



Manufacturer: ROSEMOUNT
Description from Manufacturer:







This model is old stock from September 2012

The Rosemount 3051S Coplanar Pressure Transmitters are the industry leader for Differential, Gauge, and Absolute pressure measurement. The Coplanar Platform allows seamless integration with manifolds, primary elements, and seal solutions.

The 3051S Coplanar Pressure Transmitter series of Instrumentation can optimize your operation in four critical areas: production, quality, energy efficiency, and safety and environment. By leveraging the power of the scalable Rosemount 3051S across your entire operation, you will minimize process variability, gain greater process insight, reduce maintenance and downtime, and meet regulatory demands. What's more, it's easy for your people to use, ensuring you will realize the full potential of your measurement investment.



With the Rosemount 3051 and Power Advisory Diagnostics you can identify trouble before it strikes – whether in the instrument or anywhere in your electrical loop.

The Rosemount 3051S Series of Instrumentation provides accurate and reliable measurements every time so you can reduce maintenance, outages, process variability, and achieve faster startups

• Reference Accuracy: 0.025% of Span

• Long-term Stability: 15 years

• Limited Warranty: 15 years

• Rangedown: 200:1

• Installed Total Performance: 0.1% of span

• Advanced Diagnostics with SIL 2/3 Safety Certification



Features

  • Ultra, ultra for flow, and classic performance
  • 4-20 mA HART, Wireless, FOUNDATION fieldbus protocols
  • Gauge, differential or absolute measurements
  • Remote Display and Interface options
  • Ranges up to 4000psi (275 bar)
  • Zero and span adjustment
  • PlantWeb alerts
  • Burst pressure limit: 10,000 psig (689.5 bar)



Condition: NEW OPEN BOX old stock, Some boxes have water damage, marks on the units are intact never used. Some fittings might have some marks on them from installing to be used on project but never used



















Specifications:



Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications


















Ordering Type of 3051 Series:



1. Rosemount 3051C Coplanar Pressure Transmitter



2. Rosemount 3051T In-Line Pressure Transmitter



3. Rosemount 3051CFA Annubar Flowmeter



4. Rosemount 3051CFC Compact Flowmeter



5. Rosemount 3051CFP Integral Orifice Flowmeter



6. Rosemount 3051L Level Transmitter
