Product Details:
Payment & Shipping Terms:
|
| Country Of Origin: | Germany | Deliver Time: | 4-5 Working Day |
|---|---|---|---|
| Price: | Contact Us | Warranty: | One Year |
| Brand: | Rosemount | Quality: | Seal Original Package |
| Shipping Term: | DHL / FEDEX /UPS/TNT | MOQ: | 1 Piece |
| Payment Term: | T/T, Western Union,paypal | Model: | 3051CA1A22A1AB4M5 |

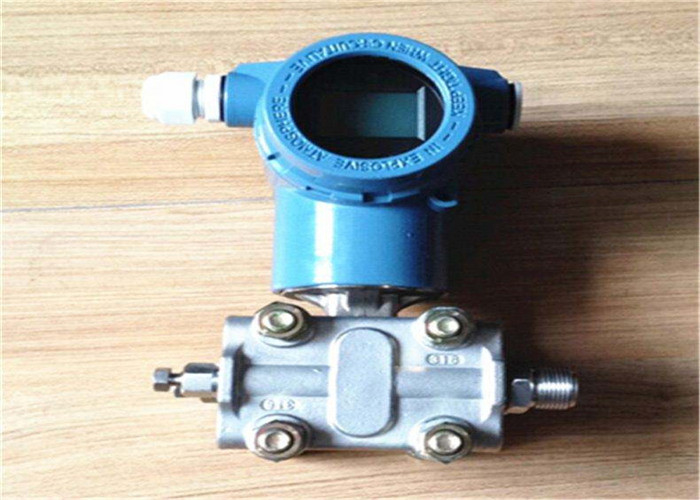

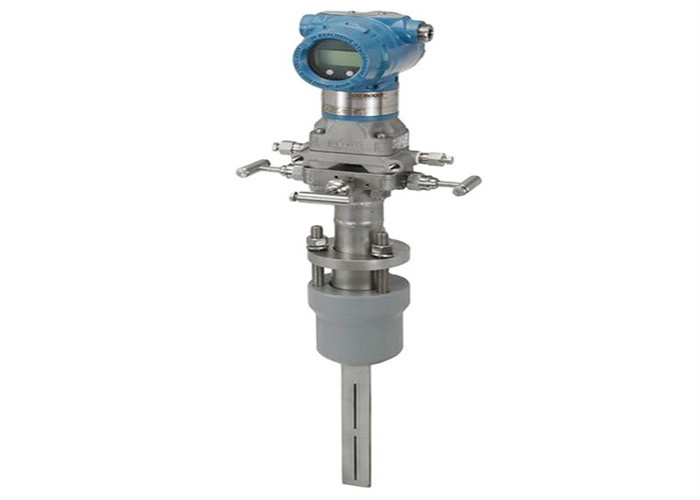

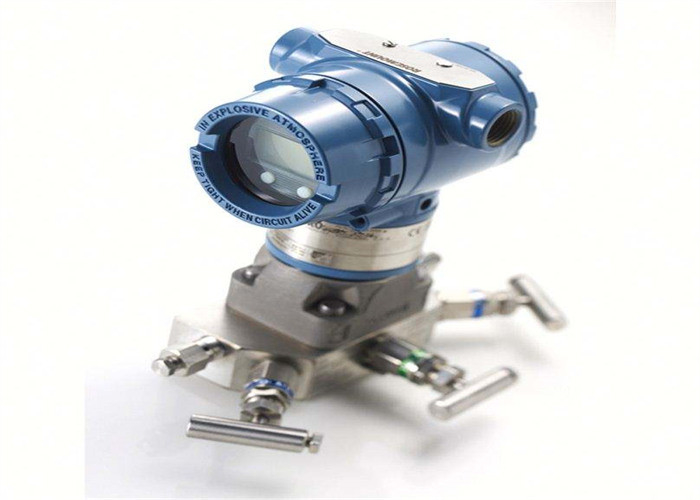

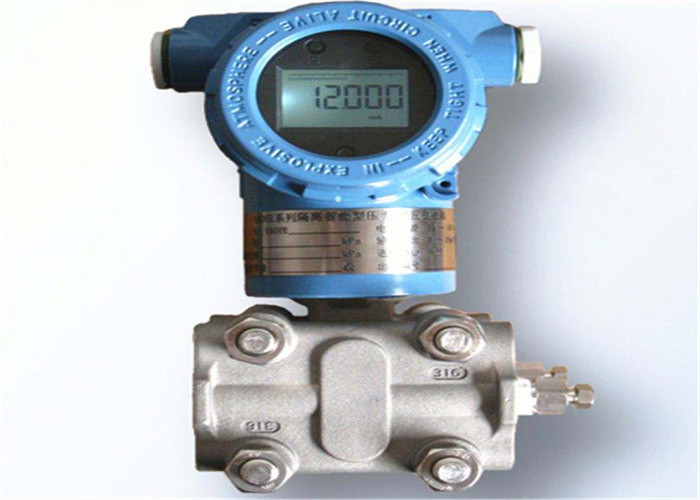

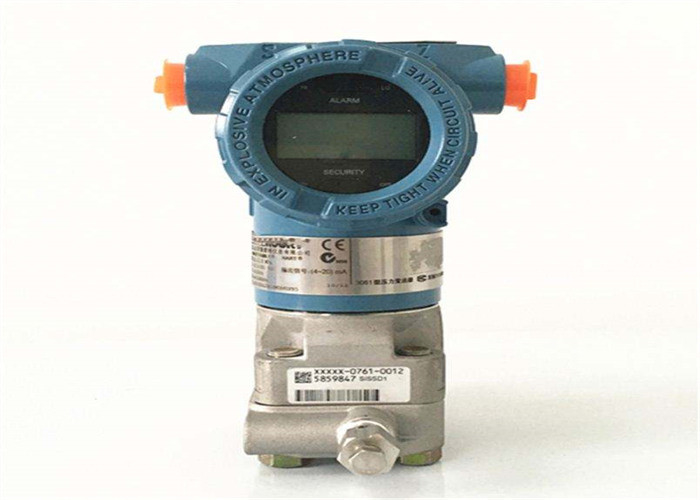

Description of Rosemount Model 3051CA1A22A1AB4M5 absolute differential pressure transmitter
Advanced pressure transmitter with a flexible Coplanar platform and unmatched long-term stability and reliability
The Rosemount 3051C smart pressure transmitter combines advanced technology with the versatile Coplanar ™ process connection to create a new standard in pressure measurement technology. Even under the most demanding conditions, the performance specifications of the Rosemount 3051C smart pressure transmitter provide unmatched long-term stability and reliability
The Rosemount 3051C smart pressure transmitter can utilize either traditional flanges or Rosemount's versatile Coplanar ™ platform designed to enable the best process connection for pressure, flow, and level applications. Right out of the box, the solution arrives factory calibrated, pressure-tested, and ready to install. The Rosemount 3051C smart pressure transmitter is also available in a number of materials and a wide range of hazardous area certifications are available.
Output options available to the Rosemount 3051C smart pressure transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. The Rosemount 3051C smart pressure transmitter offers so many options that it can be configured for any application.
Specification:
| output: | 4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional |
| range: | 0-0.01 in H2O to 0-2000 psid |
| accuracy: | 0-1: +/-0.1% of span |
| power: | 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load |
| materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum |
| fluid: | Sensor fill fluid: Silicone, Inert (Halocarbon) |
| mounting: | Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST |
| Materials of construction | |||
| Process flange type | Flange material | Drain/vent | |
| 2 | Coplanar | SST | SST |
| 3 | Coplanar | Cast C-276 | Alloy C-276 |
| 4 | Coplanar | Alloy 400 | Alloy 400/K-500 |
| 5 | Coplanar | Plated CS | SST |
| 7 | Coplanar | SST | Alloy C-276 |
| 8 | Coplanar | Plated CS | Alloy C-276 |
| 0 | Alternate Process Connection | ||
3051CA3A02A1AB3H2L4M5K5 3051CA4A02A1AB3H2L4M5K5 3051CA5A02A1AB3H2L4M5K5
3051CA1A02A1AB3H2L4M5E5 3051CA2A02A1AB3H2L4M5E5 3051CA3A02A1AB3H2L4M5E5
3051CA4A02A1AB3H2L4M5E5 3051CA5A02A1AB3H2L4M5E5 3051CA1A02A1AB3H2L4M5I5
3051CA2A02A1AB3H2L4M5I5 3051CA3A02A1AB3H2L4M5I5 3051CA4A02A1AB3H2L4M5I5
3051CA5A02A1AB3H2L4M5I5 3051CA1A22A1AB4M5 3051CA2A22A1AB4M5
3051CA3A22A1AB4M5 3051CA4A22A1AB4M5 3051C5A22A1AB4M5 3051CA1A22A1AB4M5DF
3051CA2A22A1AB4M5DF 3051CA3A22A1AB4M5DF 3051CA4A22A1AB4M5DF
3051CA5A22A1AB4M5DF 3051CA1A22A1AB4M5K5 3051CA2A22A1AB4M5K5
3051CA3A22A1AB4M5K5 3051CA4A22A1AB4M5K5 3051CA5A22A1AB4M5K5 3051CA1A22A1AB4M5E5 3051CA2A22A1AB4M5E5 3051CA3A22A1AB4M5E5 3051CA4A22A1AB4M5E5 3051CA5A22A1AB4M5E5 3051CA1A22A1AB4M5I5 3051CA2A22A1AB4M5I5
3051CA3A22A1AB4M5I5 3051CA4A22A1AB4M5I5 3051CA5A22A1AB4M5I5
