Hygienic Pressure Temperature Transmitter 4-20mA HART® FOUNDATION™ Fieldbus Up To 150 Psia

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

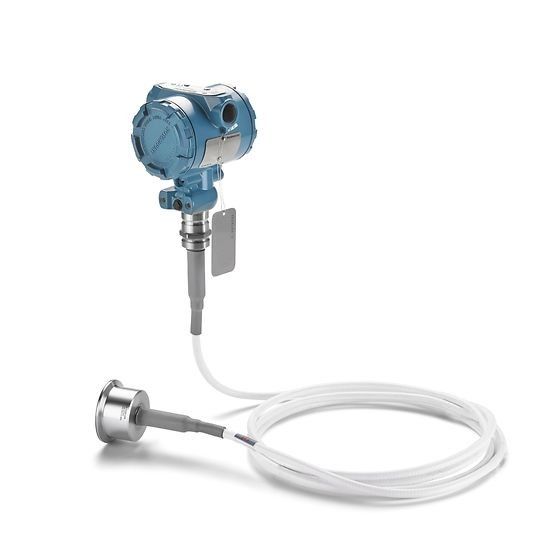

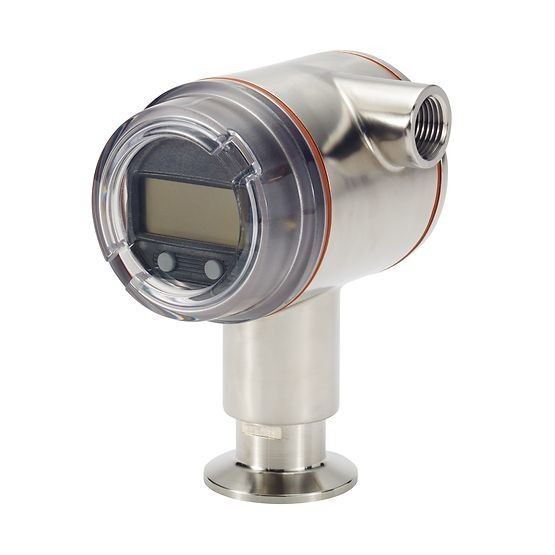

Hygienic Pressure Temperature Transmitter 4-20mA HART® FOUNDATION™ Fieldbus Up To 150 Psia

Large Image :  Hygienic Pressure Temperature Transmitter 4-20mA HART® FOUNDATION™ Fieldbus Up To 150 Psia

Product Details:

Place of Origin: America
Brand Name: Rosemount
Model Number: 3051HT Hygienic Pressure Transmitter

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: Rosemount Model: 3051HT Hygienic Pressure Transmitter
Origion: America Certifications/Approvals: 3A, EHEDG, ASME-BPE
Communication Protocol: 4-20 MA HART® Rangedown: Up To 100:1
High Light:

differential pressure flow transmitter

,

high temperature differential pressure transmitter



Rosemount™ 3051HT Hygienic Pressure Transmitter 4-20 mA HART®, FOUNDATION™ Fieldbus Up to 150 psia





Specifications



Warranty Up to 1-year limited warranty
Rangedown Up To 100:1
Communication Protocol 4-20 mA HART®, FOUNDATION™ Fieldbus
Measurement Range

Up to 300 psig (20,7 bar) Gage, Up to 150 psia (10,3 bar) Absolute

Process Wetted Material 316L SST mechanically polished and electropolished to Ra < 15 µ-in. (0.38 µ-m)
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals 3A, EHEDG, ASME-BPE, see full specs for complete list of certifications











Features



  • Connects to various industry standard sanitary fittings
  • Meets 3-A, EHEDG and ASME-BPE standards to meet industry-specific requirements
  • Polished stainless steel housing is free of voids and crevices to ensure easy cleaning and wipe downs
  • Offers best-in-class performance of 0.065% of span and 5-year stability
  • Withstands washdown conditions (IP66/68 rated) for long-term performance and durability
  • Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools
  • Sensor technology provides excellent batch repeatability up to ±0.02% Upper Range Limit for 60 batches
  • Power Advisory diagnostics detect degraded electrical loop integrity issues to prevent unplanned downtime





 Hygienic design conforms to 3-A® and EHEDG standards

 Reference accuracy of 0.065 percent with high performance option

 Demonstrated best-in-class performance during SIP/CIP for process temperatures up to 302 °F (150 °C)  Rangeability of 100:1

 Unparalleled seven-year stability reduces calibration frequency

 4–20 mA/HART® or FOUNDATION™ Fieldbus output and AMS Suite: Intelligent Device Manager compatibility ensures easier configurations, calibrations, and operation

 Proven technology from Emerson™ improves process reliability and robustness







Now you can have the best, most reliable performance... in a hygienic package



The Rosemount 3051HT Hygienic Pressure Transmitter brings best-in-class performance, application expertise, and operational and maintenance cost savings to the biotechnology, pharmaceuticals, and food and beverage industries.





Hygienic design conforms to hygienic standards



The hygienic design of the Rosemount 3051HT features 32 μ-in. Ra mechanically polished and 15 μ-in. Ra electropolished wetted surfaces. The stainless steel (SST) design is free of voids and crevices to ensure easy cleaning and wipe downs. The Rosemount 3051HT is also 3-A and EHEDG approved and is designed according to strict ASME BPE guidelines.





Demonstrated best-in-class performance during CIP/SIP processes



The Rosemount 3051HT was designed and thoroughly tested to ensure that it minimizes temperature induced errors and recovers rapidly and repeatably from CIP/SIP processes. This is called “batch to batch repeatability” and can reduce your downtime between cleaning cycles, enabling faster turnarounds and increased plant availability.





Proven Emerson technology improves process reliability and robustness



The Rosemount 3051HT uses the same proven sensor and electronics technology found in other industry leading Rosemount transmitters from Emerson. This ensures the transmitter to be robust and reliable, which improves your process consistency and increases your plant availability.





Unparalleled stability reduces calibration frequency



Competitor devices can drift out of specification in just a few months and require re-calibration, consuming your time and money while risking regulatory non-compliance. The Rosemount 3051HT provides better stability so you can confidently extend calibration frequencies to reduce maintenance costs.







4–20 mA/HART or FOUNDATION Fieldbus output and AMS Suite compatibility ensures easier configurations, calibrations and operation



Lower maintenance costs with AMS Suite software, improve device performance and enable easier configuration and setup. Combining AMS Suite with the Rosemount 3051HT can also provide you with advanced functionality including predictive diagnostics and audit trail information to make FDA compliance simpler and paper free.
