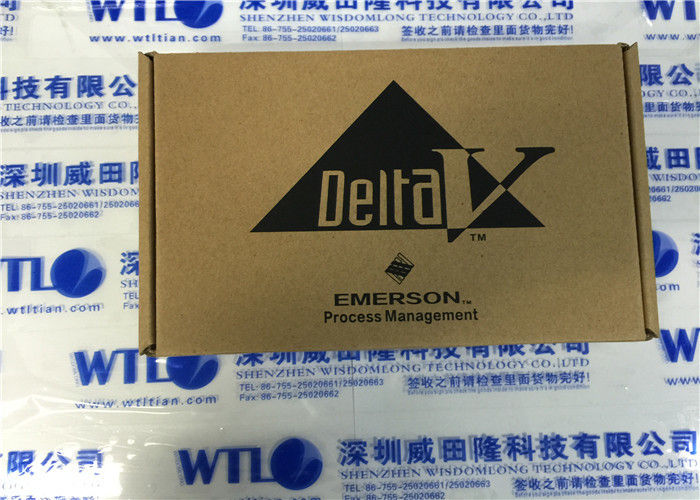

Passthrough Redundant Power Supply Module Emerson DELTAV KJ1501X1-BB1 12P0678X022

: Large Image : Passthrough Redundant Power Supply Module Emerson DELTAV KJ1501X1-BB1 12P0678X022

Product Details:

Place of Origin:	US
Brand Name:	Emerson
Certification:	CE
Model Number:	KJ1501X1-BB1, 12P0678X022

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact
Packaging Details:	New and original
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union,paypal
Supply Ability:	100

Contact Now

Detailed Product Description

Place Of Origin::	US	Brand Name::	Emerson
Model Number::	KJ1501X1-BB1 12P0678X022	Condition::	New
Quality::	100% New And Origin	Warranty:	1 Year
REV:	K
Highlight:	analog interface module , plc power supply module

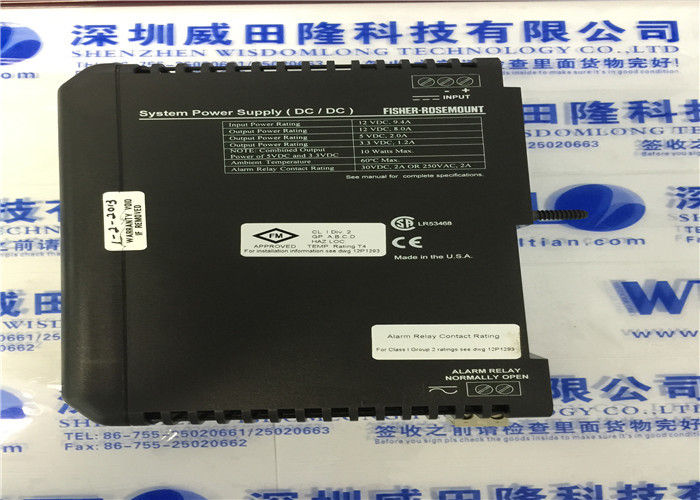

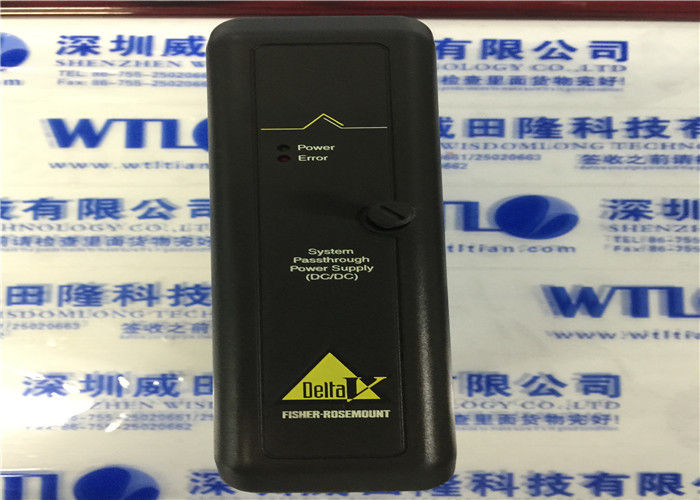

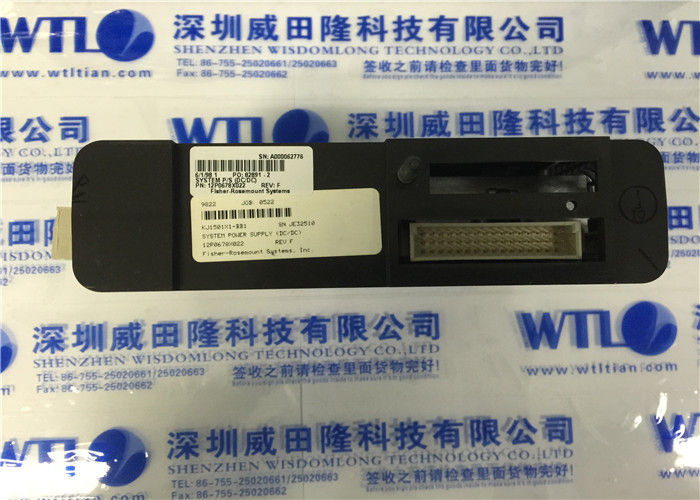

Emerson DELTAV KJ1501X1-BB1, 12P0678X022 SYSTEM PASSTHROUGH POWER SUPPLY 12/12VDC (DC/DC)

Emerson Fisher-Rosemount

KJ1501X1-BB1

System Power Supply

12VDC

Delta V

Quick Details:

Place of Origin: California,United States
Model Number: KJ1501X1-BB1
Brand Name: Emerson
Quality: 100% new and origin
Service: one year warranty
Terms of quote: Ex-Work

Packaging & Delivery:

new and original factory anti-static bag with individual sealed inner box
Lead Time :within 3 days upon receipt the payment

Shenzhen Wisdomlong Technology CO.,LTD

Contact person:Suki

Email:wtl2502keji@163.com

Skype:wtl2502

Tel:+86-13268302140

I/O Card Redundancy

Redundant I/O cards are available for critical applications. The same card can be used in simplex or redundant applications.When installed on a two-wide redundant terminal block, the cards are recognized as a redundant pair by the controller. The controller scans each card and determines which card is acting

as the active interface. When a fault is detected, the system automatically switches to the standby I/O card.

DeltaV Control modules reference simplex and redundant I/O channels identically and there is no special configuration required to take advantage of redundancy.

Switchover of a redundant I/O card is completed within two scans of the I/O bus. Make-before-break contacts ensure digital field instruments remain powered and the process is undisturbed. Analog output signals are briefly driven by both cards for < 5 ms during switchover of the card.

Hardware Alerts automatically report hardware integrity errors for both the primary and secondary cards. Any event that causes a switchover is also reported automatically through the system hardware alerts and is logged in the Event Chronicle.

Events that can cause a switchover include.

Hardware failure within the active card.
Communications failure between the active card and the controller.
Detection of a fault in the field wiring

A switchover may also be initiated from the diagnostics explorer, and the health and status of both cards and their channels are available in the diagnostics explorer.

The system automatically commissions a new standby card. In safe areas, failed cards can be replaced under power. In hazardous areas, appropriate installation procedures must be followed.

Ordering Information

Analog Input Cards and Termination Blocks

Description	Model Number
8 Channels 4-20 mA, HART Standard I/O Termination Block	VE4003S2B1
Redundant Standard I/O Termination Block	VE4033S2B1
Fused I/O Termination Block	VE4003S2B2
4-wire I/O Termination Block	VE4003S2B3
16-Pin Mass Termination Block	VE4003S2B4
24-Pin Mass Termination Block	VE4003S2B5
16 Channels 4-20 mA, HART Standard I/O Termination Block	VE4003S2B6
4-wire I/O Termination Block 16 Channels 4-20 ma, HART, Plus Card	VE4003S2B7
16-Channel 2-Wire AI Terminal Block for Series 2 Plus	VE4003S2B9
16-Channel 4-Wire AI Terminal Block for Series 2 Plus	VE4003S2B10
Redundant 16-Channel 2- & 4-Wire AI Terminal Block for Series 2 Plus	VE4033S2B10
8 Channels Thermocouple,mV Standard I/O Termination Block	VE4003S4B1
Cold Junction Compensated (CJC) Termination Block	VE4003S5B1
Analog Input Card: 8 Channels RTD Resistant Temperature Device (RTD) Termination Block	VE4003S6B1
Isolated Input Card Isolated Input Terminal Block	VE4003S7B1
Standard I/O Termination Block	VE4005S2B1
Redundant Standard I/O Termination Block	VE4035S2B1
Fused I/O Termination Block	VE4005S2B2
16-Pin Mass Termination Block	VE4005S2B3
16-Channel AO Terminal Block for Series 2 Plus	VE4005S2B4
Redundant 16-Channel AO Terminal Block for Series 2 Plus	VE4035S2B4
Standard I/O Termination Block	VE4001S2T1B1
Fused I/O Termination Block	VE4001S2T1B2
Standard I/O Termination Block	VE4001S2T2B1
Redundant Standard I/O Termination Block	VE4031S2T2B1
Fused I/O Termination Block	VE4001S2T2B2
16-Pin Mass Termination Block	VE4001S2T1B3
16-Pin Mass Termination Block	VE4001S2T2B3
Standard Termination Block	VE4001S2T2B4
40-pin Mass Termination Block	VE4001S2T2B5
Redundant32-Channel DI Terminal Block for Series 2 Plus	VE4031S2T2B6
40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)	VE4001S2T2B7
40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards*	VE4051S2T2B7
Redundant 40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)	VE4031S2T2B7
Redundant 40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards *	VE4081S2T2B7
Standard I/O Termination Block	VE4001S3T1B1
Fused I/O Termination Block	VE4001S3T1B2
Standard I/O Termination Block	VE4001S3T2B1
Fused I/O Termination Block	VE4001S3T2B2
Discrete 32 Channel Terminal Block	VE4015
Discrete 32-Channel Terminal Block	VE4001S5T2B4
40-pin Mass Terminal Block	VE4001S5T2B5
Standard I/O Termination Block	VE4002S1T1B1
Fused I/O Termination Block	VE4002S1T1B2
16-Pin Mass Termination Block	VE4002S1T1B3
Standard I/O Termination Block	VE4002S1T2B1
Redundant Standard I/O Termination Block	VE4032S1T2B1
Fused I/O Termination Block	VE4002S1T2B2
16-Pin Mass Termination Block	VE4002S1T2B3
10-Pin Mass Termination Block	VE4002S1T2B4
Standard I/O Termination Block	VE4002S1T2B5
40-Pin Mass Termination Block	VE4002S1T2B6
40-pin DO Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)	VE4002S1T2B8
40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards *	VE4052S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)	VE4032S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards *	VE4082S1T2B8
Standard I/O Termination Block	VE4002S2T1B1
Fused I/O Termination Block	VE4002S2T1B2
Standard I/O Termination Block	VE4002S2T2B1
Fused I/O Termination Block	VE4002S2T2B2
250V 2A Fuse for Fused Terminal Block; Box of 20	KJ4010X1-BC1
