Product Details:
Payment & Shipping Terms:
|

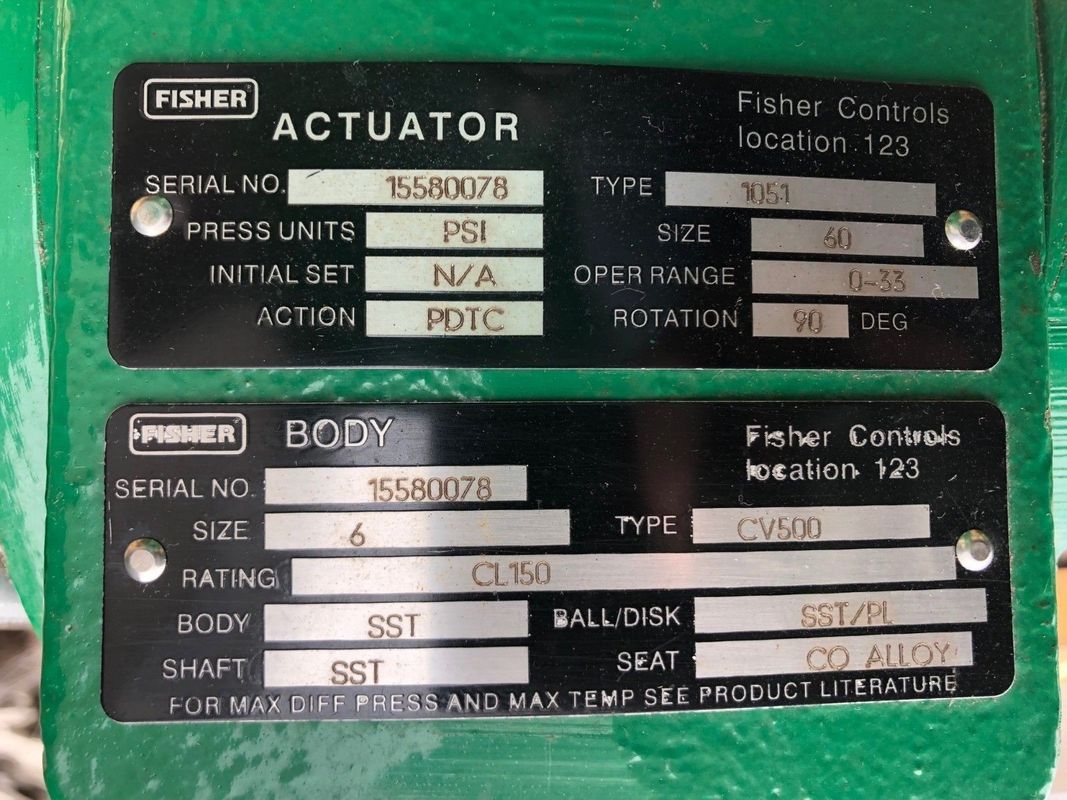

| Brand: | Fisher | Model: | CV500 |
|---|---|---|---|
| Origion: | America | ||
| Highlight: | differential pressure flow transmitter,high temperature differential pressure transmitter |
||
Fisher™ CV500 Eccentric Plug Valve Cavitation, Dirty Service, Erosive, Low Flow, General Service
The Fisher CV500 valve combines the rangeability of the cammed, segmented V-notched ball, with inherent ruggedness in the heavy duty bearings, seals, and body. This combination provides a balance of erosion resistance and pressure control for gas and liquids.
| Certifications | SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE |
| Critical Service |
Cavitation, Dirty Service, Erosive, Low Flow, General Service |
|
Flow Characteristics |
Equal Percentage |
| Material | Carbon Steel, Stainless, Alloy |
| Operating Temperature |
Standard Temperature |
| Pressure Class | PN, ASME |
| Process Connection Type | Flanged |
| Shutoff Class |
Class IV (FCI 70-2) |
|
Valve Size |
NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12 |
|
Valve Size Standard |
NPS, DN |
| Other Configurations |
Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Erosive applications take a toll on process availability
Availability is one of the key concerns in plants today. Repairing or replacing your valves repeatedly results in downtime and reduced productivity.
Rotary severe service is defined as rotary control valve applications in which service or process conditions lead to constant wearing of the valve. These conditions are caused by dirty, erosive, coking, corrosive, viscous, and other hard-to-handle fluids.
They can cause lack of process control, frequent maintenance, unacceptable operating life, and poor shutoff.
A control valve solution for dirty and erosive fluids
With Fisher V500 and CV500 rotary globe valves and their ability to battle erosion and control hard-to-handle fluids, you can reduce maintenance costs and increase plant availability.
Fisher V500 and CV500 rotary eccentric plug valves are designed for erosive process applications, built tough for control, and intended for performancedemanding situations. They are known for their ability to fight off the effects of hard-to-handle fluids with rugged components and application versatility. The V500 valve has been proven in tough applications across multiple industries since being introduced in 1984.
Additional Benefits of V500 and CV500 Valves
• Extend Operating Life: Both sides of the seat ring have a shutoff surface, allowing it to be flipped over to extend operating life. The seat ring also self-centers, self-laps, and dynamically aligns with the plug to consistently achieve the ANSI Class IV leakage protection you need.
• Take Advantage of Reverse Flow: For erosive applications, the recommended flow direction for V500 and CV500 valves is with the shaft upstream, so that high-velocity flow is isolated in the port or outlet area. Erosion-resistant materials help protect the seat ring and retainer for easier maintanence.

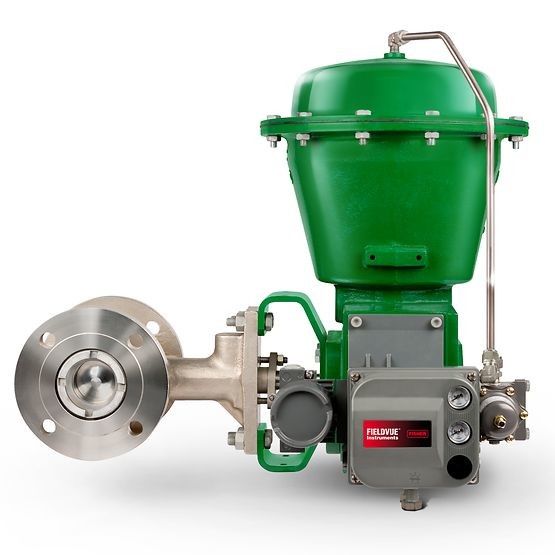

• Achieve Higher Performance: When coupled with a Fisher pneumatic actuator and FIELDVUE™ DVC6200 digital valve controller, the V500 or CV500 valve assembly provides excellent installed performance. It helps control closer to setpoint, extends operating life, and battles erosion effectively in your most critical processes.
