| Brand: | Fisher | Model: | D2T FloPro Control Valve |
|---|---|---|---|
| Origion: | America | Certifications: | PED, ATEX, CRN |
| Critical Service: | General Service | Flow Characteristics: | Characterization |
| Material: | Carbon Steel | Pressure Class: | ASME CL900 |
| High Light: | differential pressure flow transmitter,absolute pressure transmitter |
||
Fisher™ D2T FloPro Control Valve FloPro field selectable flow rate for 1/4, 3/8, and 1/2 inch port size.
The Fisher D2T valve is ideal for use as a dump valve on gas separators and scrubbers. It is also well-suited for other high-pressure applications in natural gas production, compression, and processing.
| Certifications | PED, ATEX, CRN |
| Critical Service | General Service |
| Flow Characteristics |
Characterization |
| Material | Carbon Steel |
| Operating Temperature | Standard Temperature |
| Pressure Class |
ASME CL900 |
| Process Connection Type |
Threaded |
| Shutoff Class | Class IV (FCI 70-2) |
| Valve Size | NPS 1 |
| Valve Size Standard | NPS |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Features
Field-Selectable Flow Rates--The FloPro feature allows easy setting of 0.25, 0.375, and 0.5 inch port equivalent flow rates, eliminating the need for more than one port size.
Trim Options--The valve plug and seat ring are available in S17400 double H1150, or solid R30006 (Alloy 6) for erosive service.
Quad-O compliant Packing System--Features Fisher ENVIRO-SEAL™ packing technology to provide reduced packing maintenance and meet Low E fugitive emission requirements for Leak Detection and Repair (LDAR) programs in compliance with the Code of Federal Regulations (CFR) 40, Part 60, Subpart OOOO.
NACE MR0175/ISO 15156 Service- Ready--Sour service trim is the standard construction for the D2T FloPro control valve. The materials of construction meet the metalurgical requirements of NACE MR0175/ISO 15156. Environmental limits may apply.
CL900 Service--Valve assembly is designed and specified for ASME B16.34 CL900 service.
Low Temperature Materials--Valve and actuator construction materials allow use in low temperature applications of -46° C (-50° F). Fish
Field-Reversible Actuator--The D2T FloPro actuator can be converted in the field from Air-to-Open to Air-to-Close actuator action. (Conversion to Air-to-Close actuator action requires removing four springs from the actuator casing configuration.) (Conversion to Air-to-Open actuator action requires adding four springs to the actuator casing configuration.)
Easy Installation--Compact design allows installation where space is at a premium.
Easy Maintenance--Screwed bonnet/body joint allows repair or maintenance with a minimum of tools and without removing the valve body from the piping system. D2

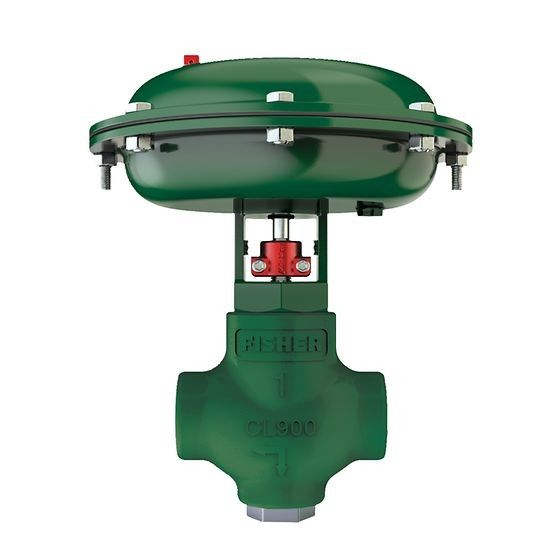

Fisher™ D2T FloPro Control Valve

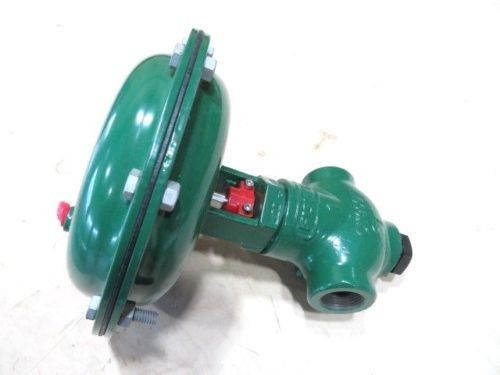

The Fisher D2T FloPro control valve is a compact, rugged valve designed for on/off service. This valve is ideal for use as a dump valve on gas separators and scrubbers. It is also well suited for other high pressure applications in natural gas production, compression, and processing. The D2T FloPro valve has threaded NPT end connections and is available in an NPS 1 globe style or angle style valve body configuration.
