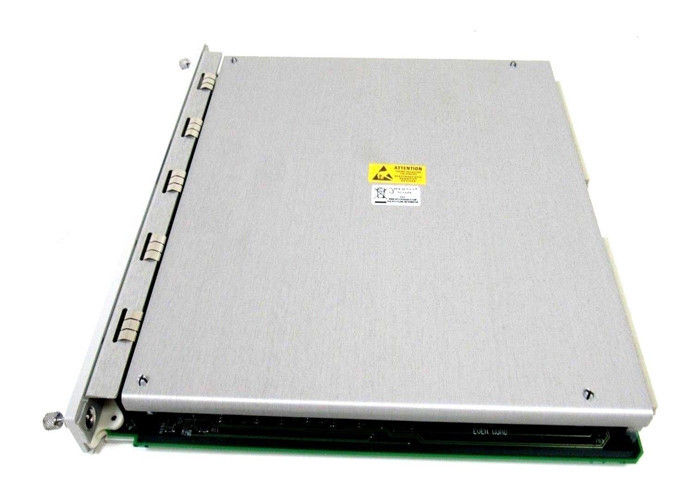

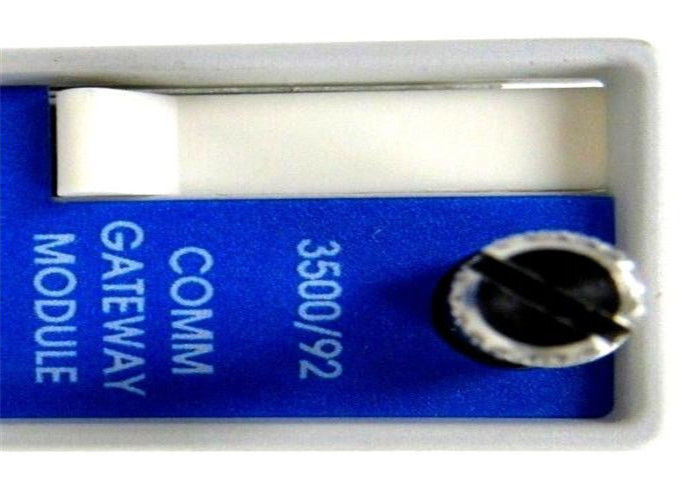

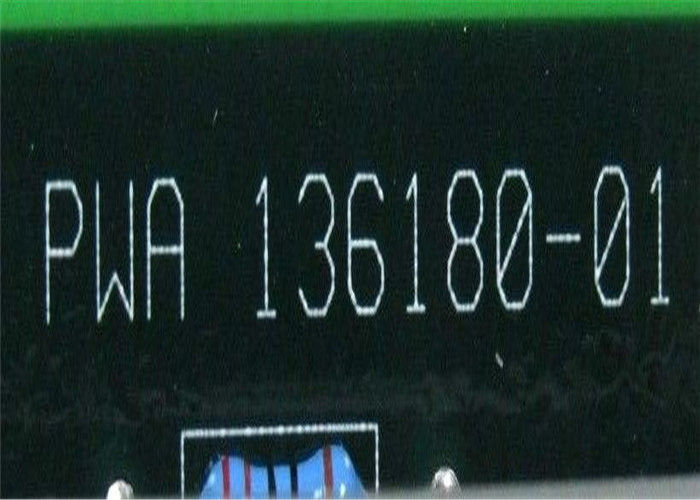

Bently Nevada 136180-01 3500/92 Communication Gateway Module comm gateway module
Features
Ethernet TCP/IP Capabilities
Serial (RS232/RS422/RS485) Communications Capabilities
RJ45 Ethernet Connection
Configurable Modbus Register Utility
Description
The GE / Bently Nevada 3500/92 Series Communication Gateway Modules provide extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software. The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks. The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.
Product Family: 3500/92, 3500-92, 3500092
Important Notice: Please note that any additional items included with this equipment such as accessories, manuals, cables, calibration data, software, etc. are specifically listed in the above stock item description and/or displayed in the photos of the equipment. Please contact one of our Customer Support Specialists if you have any questions about what is included with this equipment or if you require any additional information.
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- |
Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- |
Emerson VE-,KJ- |
| Honeywell TC-,TK- |
GE Modules IC - |
| Fanuc motor A0- |
Yokogawa transmitter EJA- |
Similar Products:
300/03-01-00
3300/03-02-02
3300/12-02-20-00
3300/12-22-02
3300/16-12-01-01-00-00-00
3300/20-12-01-01-00-00
3500/15-02-02-00
3500/20-01-02-00
3500/25-01-01-00
3300/55-04-04-18-18-00-00-05-00
GE's Bently Nevada 3500 Monitoring System provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications. It represents our most capable and flexible system in a traditional rack-based design and offers numerous features and advantages not provided in other systems.
The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.
Supported protocols include:
· Modicon Modbus protocol (via serial communications)
· Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
· Proprietary Bently Nevada protocol (for communication with 3500 RackConfiguration and Data Acquisition Software packages)
The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks.
The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primaryvalue Modbus registers. The 3500/92 now has a Configurable Modbus Register
Utility, which can provide the same functionality originally addressed by theprimary value Modbus registers.
Benefits
The industry’s most extensive selection of machinery measurement parameters combined with software configuration for virtually all monitor options
Maximum reliability with extensive self-checking and fault tolerant design features
Rugged design that is fully compliant with the American Petroleum Institute’s Standard API 670 and API 618 requirements, Canadian Standards Association (CSA), Factory Mutual (FM), GOST, ATEX, and CE requirements
Compatibility with a variety of locally or remotely mounted displays
Flexibility for configuration with various levels of redundancy, ranging from simplex modules to dual power supplies to redundant relay modules with wide ranging and flexible logical operator options for configuring complex relay logic as desired
An Ethernet port in the 3500/22M Rack Interface Module and a single network cable to communicate with GE's System 1 software, connecting condition monitoring and diagnostic software
Optional DNV and Class NK certifications for maritime applications, and communication gateway module to connect to plant control and automation systems
TÜV Functional Safety Certification that can be supplied for applications requiring up to Safety Integrity Level (SIL) 2, when the product is used as part of a safety instrumented system
