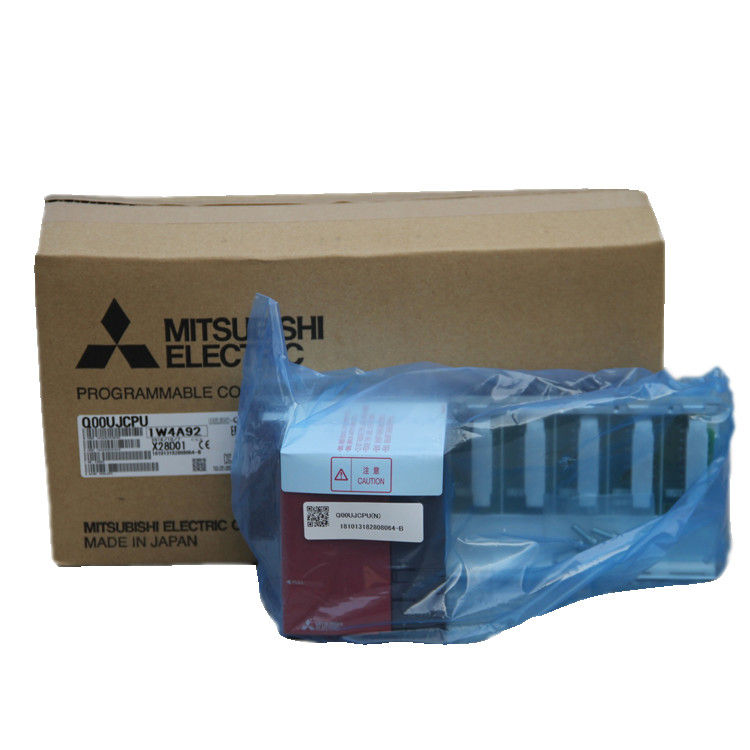

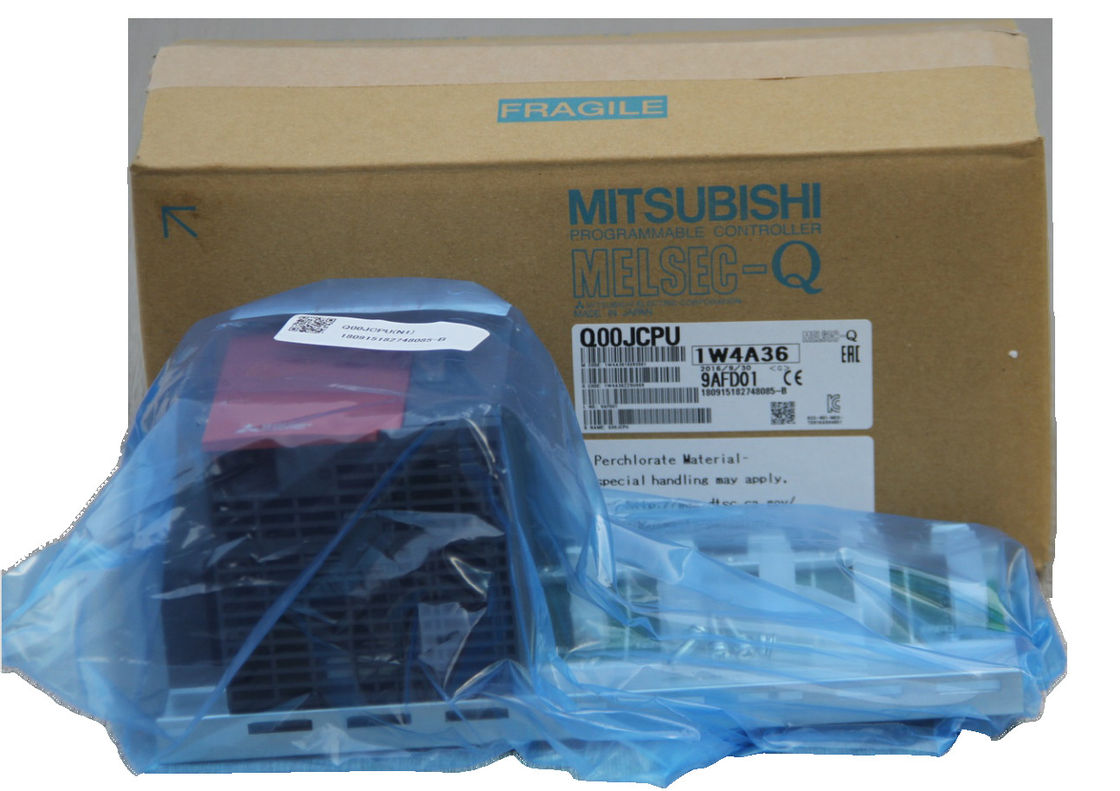

MITSUBISHI PLC Q00JCPU Q00UJCPU Programmable Controller CPU 8k steps Program capacity

: Large Image : MITSUBISHI PLC Q00JCPU Q00UJCPU Programmable Controller CPU 8k steps Program capacity

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	Q00UJCPU

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	In Stock
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Category:	Programmable Logic Controller	Model:	Q00UJCPU
Brand:	Mitsubishi	Country Of Origin:	Japan
Type:	Remote Module	Series:	MELSEC-Q
Input:	100-240 V AC	Output:	5 V DC, 3 A
High Light:	ethernet plc controllers , industrial automation using plc

MITSUBISHI PLC Q00JCPU Q00UJCPU Programmable Logic Controller 8k steps Program capacity

Features of the MELSEC System Q

CPU modules

The MELSEC System Q offers a wide range of CPU modules:

●Basic model QCPU

Model	Program capacity	Number of I/O points
Q00JCPU	8k steps	256 points
Q00CPU	8k steps	1024 points
Q01CPU	14k steps	1024 points

●High performance model QCPU

Model	Program capacity	Number of I/O points
Q02CPU	28k steps	4096 points
Q02HCPU	28k steps	4096 points
Q06HCPU	60k steps	4096 points
Q12HCPU	124k steps	4096 points
Q25HCPU	252k steps	4096 points

●Process CPU

Model	Program capacity	Number of I/O points
Q02PHCPU	124k steps	4096 points
Q06PHCPU	60k steps	4096 points
Q12PHCPU	124k steps	4096 points
Q25PHCPU	252k steps	4096 points

●Redundant CPU

Model	Program capacity	Number of I/O points
Q12PRHCPU	124k steps	4096 points
Q25PRHCPU	252k steps	4096 points

●Motion CPU

Model	Number of control axes
Q172HCPU (-T)	8 axes
Q173HCPU (-T)	32 axes
Q172CPUN (-T)	8 axes
Q173CPUN (-T)	32 axes

●Universal model QCPU

– Q00UJCPU

– Q00UCPU

– Q01UCPU

– Q02UCPU

– Q03UDCPU

– Q03UDECPU

– Q04UDHCPU

– Q04UDEHCPU

– Q06UDHCPU

– Q06UDEHCPU

– Q10UDHCPU

– Q10UDEHCPU

– Q13UDHCPU

– Q13UDEHCPU

– Q20UDHCPU

– Q20UDEHCPU

– Q26UDHCPU

– Q26UDEHCPU

Network/Information Processing Modules

●MES Interface Module

QJ71MES96

●Ethernet Modules

QJ71E71-100

QJ71E71-B5

QJ71E71-B2

●MELSECNET/H Modules

QJ71LP21-25 QJ72LP25-25

QJ71LP21S-25 QJ72LP25G(E)

QJ71LP21G(E) QJ72BR15

QJ71BR11

MELSECNET/H PC I/F Boards

Q80BD-J71LP21-25

Q80BD-J71LP21S-25

Q80BD-J71LP21G(E)

Q80BD-J71BR11

●CC-Link Module

QJ61BT11N

CC-Link PC I/F Board

Q80BD-J61BT11N

●CC-Link/LT Module

QJ61CL12

●Serial Communication Modules

QJ71C24N

QJ71C24N-R2

QJ71C24N-R4

●FL-net (OPCN-2) Interface Modules

QJ71FL71-T-F01

QJ71FL71-B5-F01

QJ71FL71-B2-F01

●AS-i Master Module

QJ71AS92

●Intelligent Communication Modules

QD51

QD51-R24

Intelligent Function Modules

●Analog Modules

A/D Converter Modules

Q64AD-GH

Q62AD-DGH

Q64AD

Q68ADV

Q68ADI

D/A Converter Modules

Q62DA-FG

Q62DAN

Q64DAN

●Temperature Control Modules

Q64TCTT

Q64TCTTBW

Q64TCRT

Q64TCRTBW

●Temperature Input Modules

Q64TDV-GH

Q64TD

Q68TD-G-H01

Q64RD-G

Q64RD

●Interrupt Module

QI60

●Blank Cover

QG60

●Loop Control Module

Q62HLC

●Positioning Modules

QD75P1

QD75P2

QD75P4

QD75D1

QD75D2

QD75D4

QD70P4

QD70P8

QD70D4

QD70D8

●Channel Isolated Pulse Input Module

QD60P8-G

●High Speed Counter Modules

QD62

QD62D

QD62E

QD63P6

QD64D2

Up to 8192 inputs and outputs

The CPU types Q02(H) to Q25H, the universal model CPUs from Q03UD(E)CPU on, all process CPUs and redundant CPUs can address up to 4096 in/outputs directly on the base unit. Together with remote I/Os these CPUs can address up to 8192 I/O points.

A Q02UCPU can address up to 2048 in/outputs directly and up to 8192 I/Os totally.

The Q00JCPU and Q00UJCPU address 256 I/O points directly. The Q00CPU, Q00UCPU, Q01CPU or Q01UCPU addresses 1024 I/O points. With these CPU types the number is extended to 2048 points and to 8192 points with the universal model PLC CPUs by remote I/Os.

High speed program processing

CPU types with an additional "H" (like Q12HCPU, Q25HCPU or Q12PHCPU) do a faster processing of the program. The operation time for the LD instruction (load) by the Q02CPU is 79 ns. The same instruction is done in 34 ns by the H type CPU.

An universal model PLC CPU increases the processing speed additionally. The operation time of the above mentioned LD instruction takes only 20 ns with the Q03UDCPU and only 9.5 ns with CPU modules from Q04UDCPU on.

Overall configuration

Following figure shows the system configuration for a Q00JCPU or Q00UJCPU using a combination of main base unit, CPU and power supply module.
