Product Details:
Payment & Shipping Terms:
|
| Brand: | Bently Nevada | Model: | 990-04-70-02-00 |
|---|---|---|---|
| Model 2: | 99004700200 | Place Of Origin: | USA |
| Series: | 3500 | Meter: | 8.8 |
| High Light: | differential pressure flow transmitter,high temperature differential pressure transmitter |
||

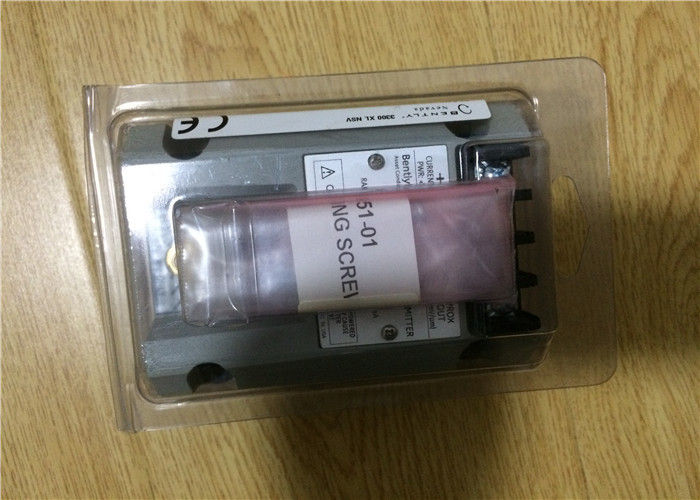

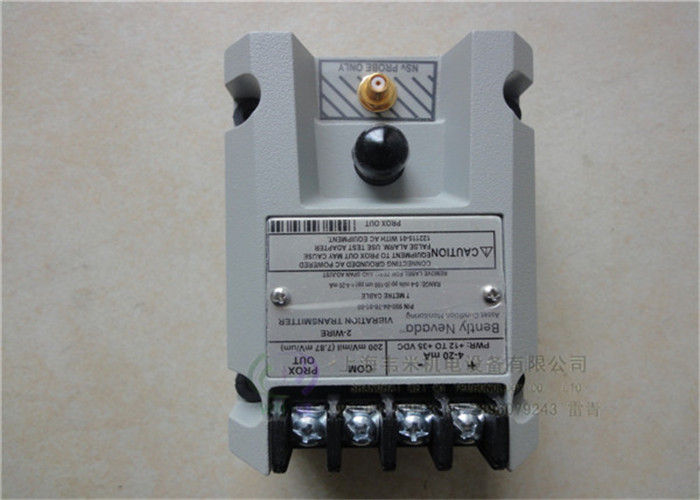

Bently Nevada 2-Wire Vibration Transmitter 990-04-70-02-00 3300xl 8MM
Specifications
Part Number: 990-04-70-02-00
Ordering Information
Model: 990 - Vibration Transmitter
Full-scale Option: -04 - 0-4 mils pp (0-100 µm pp)
System Length Option: -70 - 7.0 metres (23.0 feet)
Mounting Option: -02 - Bulkhead screws
Agency Approval Option: -00 - Not required
American Bentley transmitter 990-04-70-02-00
3300 XL 8mm eddy current sensor system
Sensor system
The 3300 XL 8 mm eddy current sensor system consists of the following parts:
3300 XL 8mm probe
3300 XL extension cable
3300 XL front-end device
The output of the system is proportional to the voltage signal at the distance between the probe tip and the surface of the conductor being measured. It can measure not only static (displacement) but also dynamic (vibration). It is mainly used for vibration and displacement measurement of oil film bearing machinery, as well as key phase and speed measurement. The 3300 XL8mm system is our advanced eddy current sensor system, 100% of which conforms to the 670 standard (4th edition) established by the American Petroleum Institute (API) for such sensors. All 3300 XL 8mm eddy current sensor systems can meet the required performance standards, and the probes, extension cables and preambles are fully interchangeable, without the need for separate matching components or workbench calibration.
Each component of the 3300 XL 8mm sensor system is backward compatible and interchangeable with other 5 mm and 8 mm sensor system components of the non-XL 3300 series. For example, when there is not enough space to install 8mm probes, a 3300 5mm probe is usually used instead.
American Bentley transmitter 990-04-70-02-00
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| Fanuc motor A0- | Yokogawa transmitter EJA- |
Bentley 3300 sensor probe, model 330101, 330102, 330103, 330104, 330105, 330106, 330180, 330130, 330780, 330851, 3500/42, 3500/15, 3500/20, 3500/32.
Distribution of Bently Nevada sensors, Bentley Bently probe, Bentley extension cable, Bentley extension cable, Bentley preamble, Bentley Bently instrument framework, Bentley Bently frame interface module, Bentley Bently key camera module, Bentley Bently monitoring module, Bentley Bently display device Bentley Bently communication gateway module, Bentley Bently overspeed protection module, Bentley Bently system module, Bentley Bently expansion differential/axial position module, Bentley Bently speed module, Bentley Bently temperature monitor, Bentley Bently process variable monitoring module, Bentley Bently calibrator, Bentley Bently check Bentley Bently speed probe, Bentley Bently photoelectric probe extension cable, Bentley Bently approach probe, Bentley Bently transformer rear panel, Bentley Bently charger, Bentley Bently axis displacement probe, Bentley Bently seismic probe, Bentley Bently relay module, Bentley Bently two-core cable
The United States Bentley BENTLY Shanghai Zui good faith dealers, professional sales agents of the United States BENTLY Bentley Bentley BENTLY sensor, eddy current probe, sensor America BENTLY Bentley expansion, the United States Bentley BENTLY axis eddy current displacement sensor, the BENTLY Bentley probe sensor, Bentley BENTLY acceleration Sensor, American BENTLY Bentley extension cable, USA BENTLY BENTLY front end and so on. Integrity of the company management, flexible sales, price concessions, quality assurance, delivery, welcome customers to negotiate purchase.
