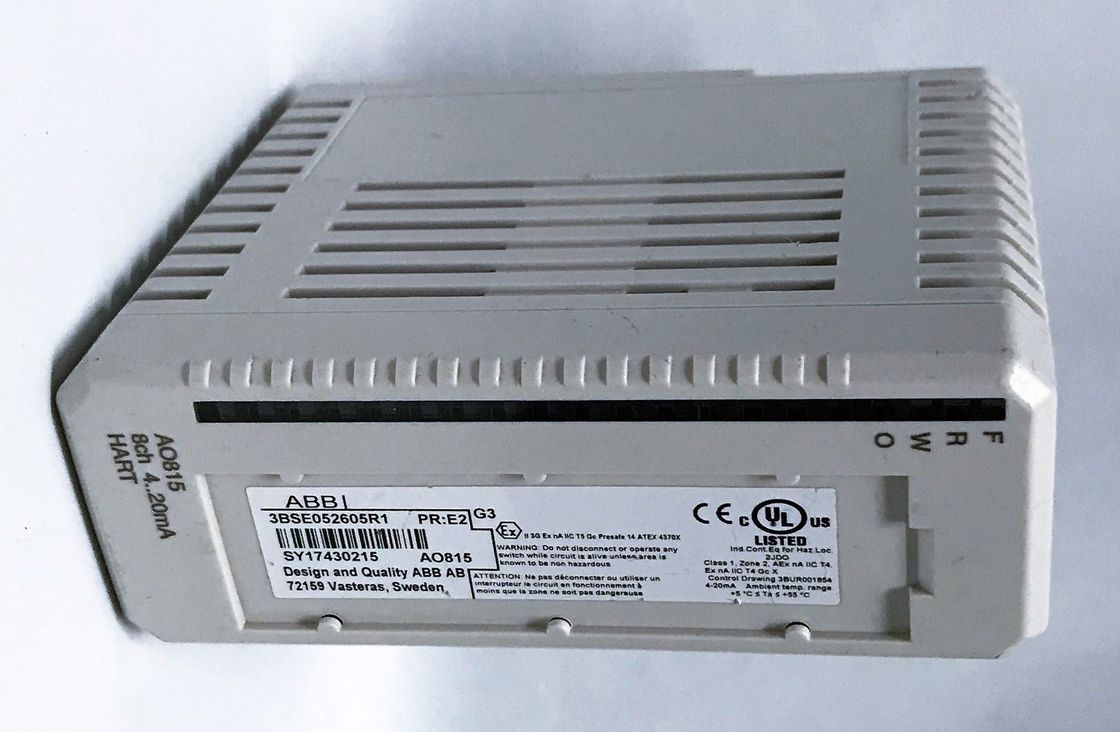

ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
Description of AO815
The AO815 Analog Output Module has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include:
The module has HART pass-through functionality. Only point to point communication is supported. The output filter must be enabled on channels used for HART communication.
General Information
| Type | Analog Output |
| Signal specification | 4..20 mA |
| Article number | 3BSE052605R1 |
| Number of channels | 8 |
| HART | Yes |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
Detailed data
| Resolution | 12 bit |
| Isolation | Groupwise isolated from ground |
| Under/over range | ± 15% |
| Output load | Max 750 Ω |
| Error | Max. 0.1% |
| Temperature drift | Max. 50 ppm/°C |
| Input filter (rise time 0-90%) | 23 ms (0-90%), max 4 mA / 12.5 ms |
| Update cycle time | 10 ms |
| Current limiting | Short circuit proof current limited output |
| Maximum field cable length | 600 meters (656 yards) |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 3.5 W (typ.) |
| Current consumption +5 V Modulebus | Max. 125 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | Max. 165 mA |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning), O(SP) |
| Supervision | Module Error: Output power low. Channel Error: Open circuit (for current >1 mA) |
| Status indication of supervision | Module Error, Module Warning, Channel Error |
