| Product Name: | Input Module | Model No.: | DI825 |
|---|---|---|---|
| Article Number: | 3BSE036373R1 | Signal Specification: | 125 V D.c. |
| Number Of Channels: | 8 Channels | Signal Type: | Current Sinking |
| Type: | Analog Input | Mechanics: | S800 |
| High Light: | ethernet i o module,digital input output module |
||

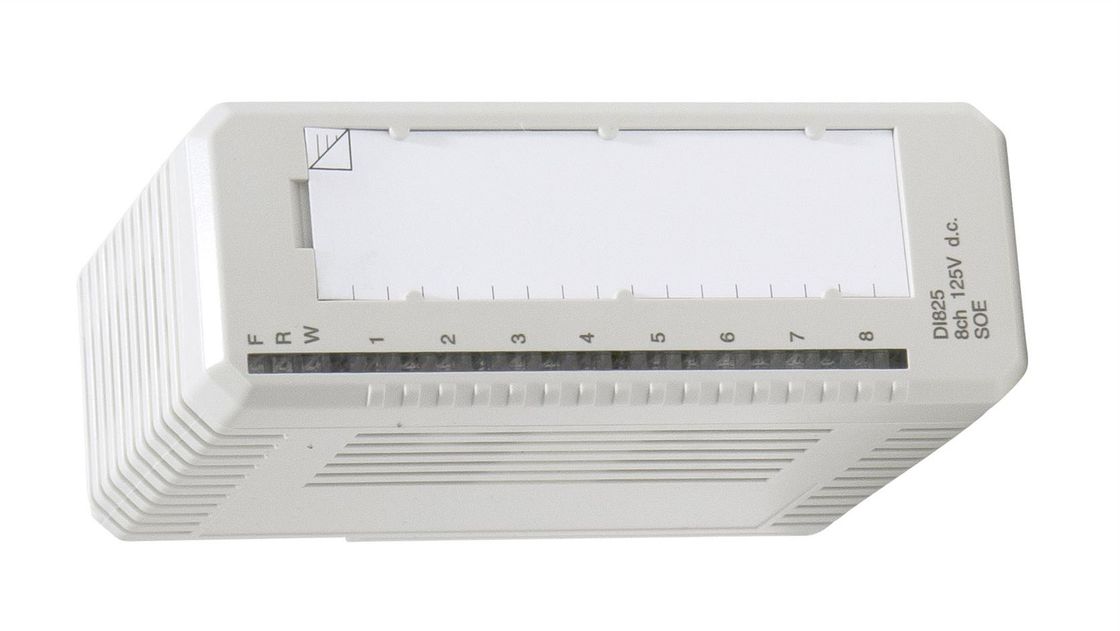

ABB S800 Module DI825 3BSE036373R1 DIGITAL INPUT MODULE 8chanes 125 V d.c.
Description of DI820:
The DI825 is an 8 channel 125 V d.c. digital input module for the S800 I/O. The input range is 71 - 150 V and the input current is 3.0 mA at 125 V. The inputs are individually isolated.
Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier. Channel 1 can be used as voltage supervision input for channels 2 - 4, and channel 8 can be used as voltage supervision input for channels 5 - 7.
If the voltage supervision is used and the voltage connected to channel 1 or 8 disappears, the channel error will be set for the channels and the Warning LED turns on.The error signal can be read from the ModuleBus.
General Information
| Type | Digital Input |
| Signal specification | 125 V d.c. |
| Article number | 3BSE036373R1 |
| Number of channels | 8 |
| Signal type | Current sinking |
| HART | No |
| SOE | Yes |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
I/O Modules
| AI801 | AI810 | AI815 | AI820 | AI825 |
| AI830A | AI835A | AI843 | AI845 | AI880A |
| AI890 | AI893 | AI895 | AO801 | AO810V2 |
| AO815 | AO820 | AO845A | AO890 | AO895 |
| DI801 | DI802 | DI803 | DI810 | DI811 |
| DI814 | DI818 | DI820 | DI821 | DI825 |
| DI828 | DI830 | DI831 | DI840 | DI880 |
| DI890 | DO801 | DO802 | DO810 | DO814 |
| DO815 | DO818 | DO820 | DO821 | DO828 |
| DO840 | DO880 | DO890 | DP820 | DP840 |
Detailed data
| Input voltage range, "0" | 0..20 V |
| Input voltage range, "1" | 71..156 V |
| Input impedance | 41.5 kΩ |
| Isolation | Individually isolated channels |
| Filter times (digital, selectable) | 0...100 ms |
| Current limiting | Sensor power can be current limited by the MTU |
| Maximum field cable length | 600 meters (656 yards) |
| Event recording accuracy | -0.25 ms...1.0 ms |
| Event recording resolution | 0.4 ms |
| Rated insulation voltage | 250 V |
| Dielectric test voltage | 2300 V a.c. Ch - Ground, 1350 V a.c. Ch - Ch |
| Power dissipation | Max. 4.9 W |
| Current consumption +5 V Modulebus | Max. 90 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | 0 |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning), Channel 1-8 Status |
| Supervision | Process voltage. Channel 1 and 8 can be used per group |
| Status indication of supervision | Module Error, Module Warning, Channel error |
Features and benefits
Environment and certification
| CE mark | Yes |
| Electrical safety | IEC 61131-2, UL 508 |
| Hazardous Location | - |
| Marine certification | ABS, BV, DNV-GL, LR, RS, CCS |
| Protection rating | IP20 according to IEC60529 |
| Corrosive atmosphere ISA-S71.04 | G3 |
| Climatic operating conditions | 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree | Degree 2, IEC 60664-1 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Compability
| Use with MTU | TU811, TU813, TU831, TU839, TU851 |
| Keying code | AB |
Dimensions
| Height | 119 mm (4.7”) |
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Weight | 0.18 kg (0.4 lbs.) |
