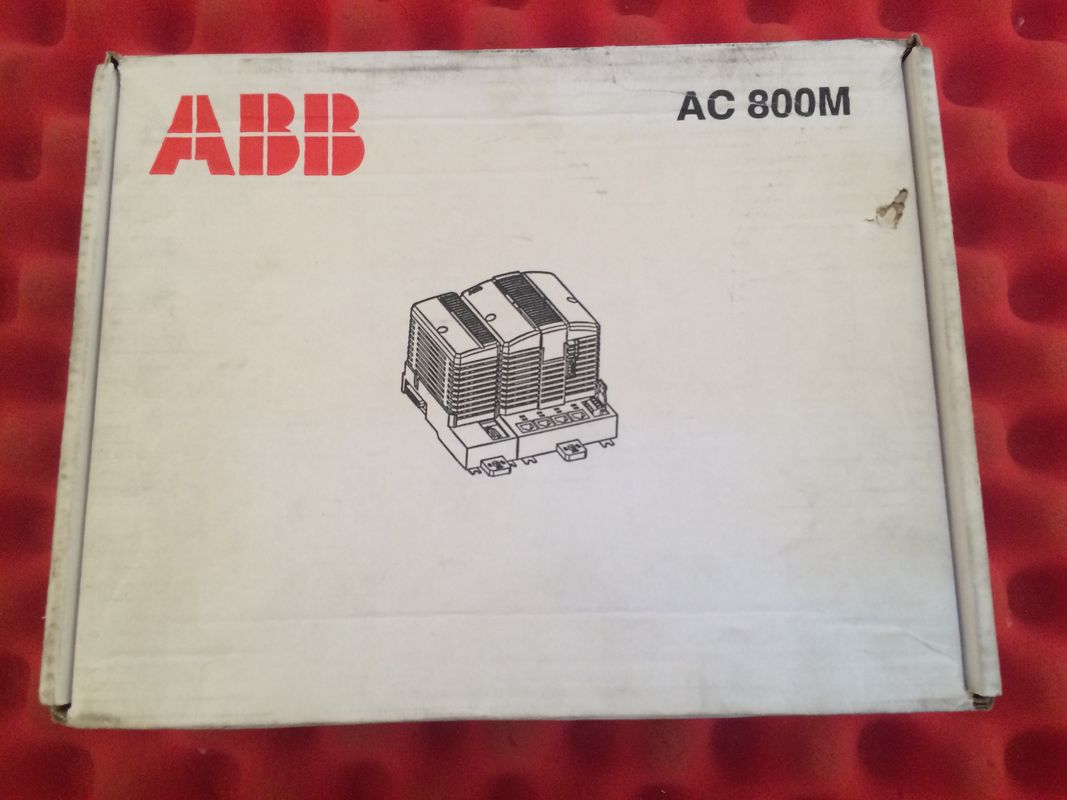

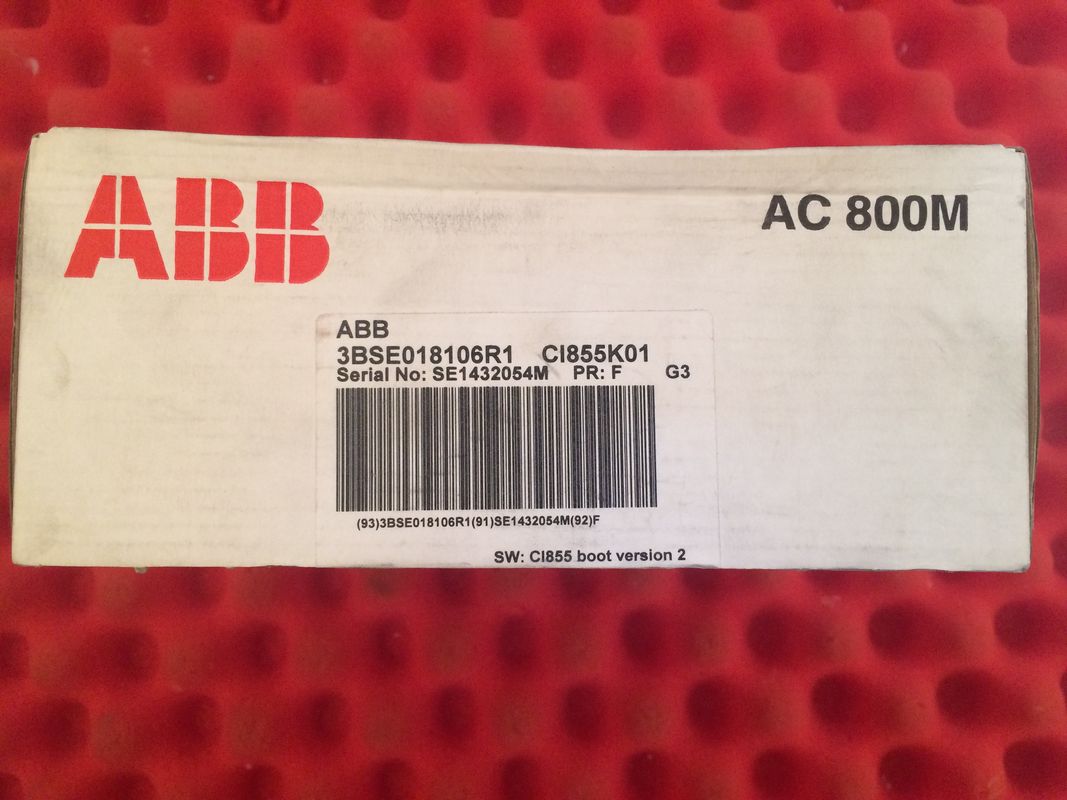

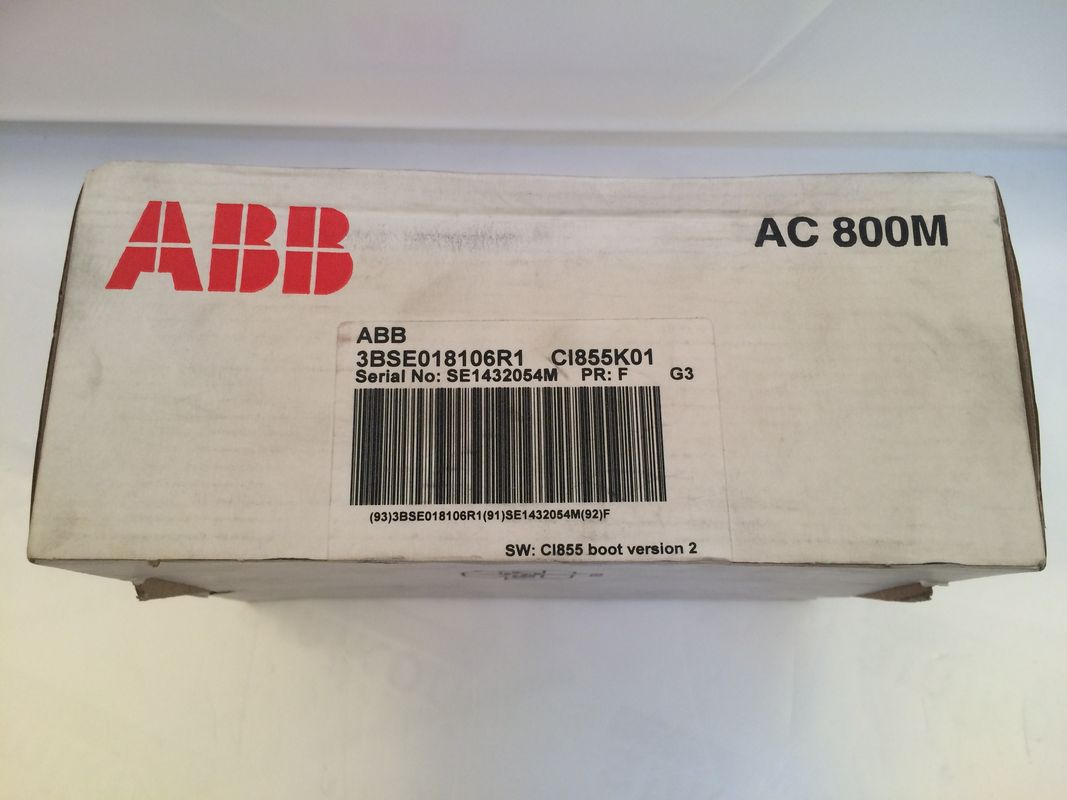

ABB DCS CI855K01 Communications Interface 3BSE018106R1 Digital I/O Module PR:F
Description of CI855K01
The MasterBus 300 (MB300) communication protocol used in communication between controllers, operator stations in installations based on Advant OCS with Master software is also implemented in the System 800xA controller AC 800M. MB 300 communication is realized in AC 800M by communication interface CI855, which is connected to the CEX-Bus through a baseplate.
The baseplate, TP853, houses RJ45 connectors for two Ethernet ports, for network redundancy and provides a simple DIN-rail mounting.
A key benefit with the CI855 interface is the possibility of having peer-to-peer communication between new plant sections with System 800xA using the AC 800M controller and existing sections with MB 300-based controllers like Advant Controller 410, Advant Controller 450 and MasterPiece 200/1.
Communications
| Model No. | Protocol | Master or slave |
| CI801 | PROFIBUS DP-V1 | Slave |
| CI840A | PROFIBUS DP-V1 | Slave |
| CI853 | COMLI and MODBUS RTU | Master / Slave |
| CI854B | PROFIBUS DP-V1 | Master |
| CI855 | ABB's MasterBus 300 | Master |
| CI856 | ABB's S100 I/O | Master |
| CI857 | ABB's INSUM | Master |
| CI858 | ABB's DriveBus | Master |
| CI860 | FOUNDATION Fieldbus HSE | Master / Slave |
| CI865 | ABB's Satt I/O | Master |
| CI867 | MODBUS TCP | Master / Slave |
| CI868 | IEC 61850 | Master / Slave |
| CI869 | ABB's Advant Fieldbus 100 | Slave |
| CI871 | PROFINET IO | Master |
| CI873 | EtherNet IP / DeviceNet | Master |
| TB820V2 | ABB's Modulebus | Slave |
| TB825 (Multi Mode) | ABB's Modulebus | Slave |
| TB826 (Single Mode) | ABB's Modulebus | Slave |
| TB840A | ABB's Modulebus | Slave |
| TB842 | ABB's Modulebus | Not Applicable |
| TU807 | ABB's Modulebus | Not Applicable |
| TU840 | ABB's Modulebus | Not Applicable |
| TU841 | ABB's Modulebus | Not Applicable |
| TU846 | ABB's Modulebus | Not Applicable |
| TU847 | ABB's Modulebus | Not Applicable |
| TU848 | ABB's Modulebus | Not Applicable |
| TU849 | ABB's Modulebus | Not Applicable |
General Information
| Protocol | ABB's MasterBus 300 |
| Article number | 3BSE018106R1 |
| Master or slave | Master |
| Transmission speed | 10 Mbit/s, 200 Datasets/s |
| Line redundancy | No |
| Module redundancy | No |
| Hot Swap | Yes |
| Used together with HI Controller | Yes |
Detailed data
| Max units on CEX bus | 12 |
| Connector | RJ-45 female (8-pin) |
| 24 V consumption typ. | typ 150 mA |
Environmental and certification
| Temperature, Operating | 55 °C |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| Marine certificates | BV, DNV-GL, LR |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Features and benefits
Dimensions
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight (including base) | 700 g (1.5 lbs) |
