Product Details:
Payment & Shipping Terms:
|
| Product Name: | I/O Module | Model No.: | CI857K01 |
|---|---|---|---|
| Article Number: | 3BSE018144R1 | Protocol: | ABB's INSUM |
| Master Or Slave: | Master | Max Units On CEX Bus: | 6 |
| Highlight: | ethernet i o module,digital input output module |
||

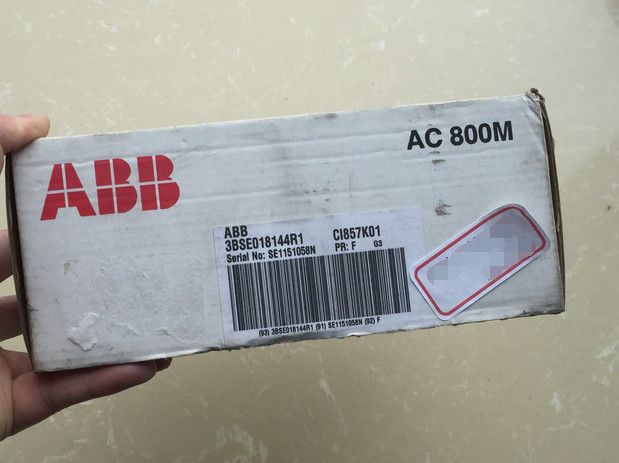

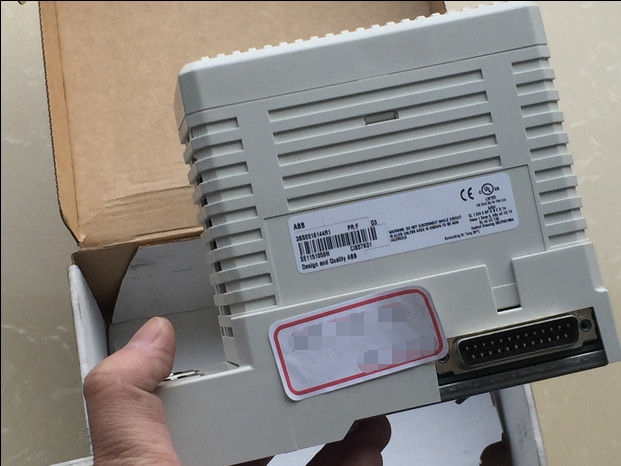

ABB AC800M I/O Module CI857K01 3BSE018144R1 Communication interface Module NEW
Description of CI857K01
INSUM integration into AC 800M supports higher functionality integration, multidrop configurations, time distribution and time stamping in the switchgear, and utilizes standard Ethernet technology for longer communication distances. The speed of this solution is typically 500 ms for one closed loop (indication from one motor until operation of another, assuming 250 ms cycle time in control execution).
AC 800M controllers access the INSUM functions through function blocks in the INSUM Communication Library. The CI857 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.
Communications
| Model No. | Protocol | Master or slave |
| CI801 | PROFIBUS DP-V1 | Slave |
| CI840A | PROFIBUS DP-V1 | Slave |
| CI853 | COMLI and MODBUS RTU | Master / Slave |
| CI854B | PROFIBUS DP-V1 | Master |
| CI855 | ABB's MasterBus 300 | Master |
| CI856 | ABB's S100 I/O | Master |
| CI857 | ABB's INSUM | Master |
| CI858 | ABB's DriveBus | Master |
| CI860 | FOUNDATION Fieldbus HSE | Master / Slave |
| CI865 | ABB's Satt I/O | Master |
| CI867 | MODBUS TCP | Master / Slave |
| CI868 | IEC 61850 | Master / Slave |
| CI869 | ABB's Advant Fieldbus 100 | Slave |
| CI871 | PROFINET IO | Master |
| CI873 | EtherNet IP / DeviceNet | Master |
| TB820V2 | ABB's Modulebus | Slave |
| TB825 (Multi Mode) | ABB's Modulebus | Slave |
| TB826 (Single Mode) | ABB's Modulebus | Slave |
| TB840A | ABB's Modulebus | Slave |
| TB842 | ABB's Modulebus | Not Applicable |
| TU807 | ABB's Modulebus | Not Applicable |
| TU840 | ABB's Modulebus | Not Applicable |
| TU841 | ABB's Modulebus | Not Applicable |
| TU846 | ABB's Modulebus | Not Applicable |
| TU847 | ABB's Modulebus | Not Applicable |
| TU848 | ABB's Modulebus | Not Applicable |
| TU849 | ABB's Modulebus | Not Applicable |
General Information
| Protocol | ABB's INSUM |
| Article number | 3BSE018144R1 |
| Master or slave | Master |
| Transmission speed | 10 Mbit/s |
| Line redundancy | No |
| Module redundancy | No |
| Hot Swap | Yes |
| Used together with HI Controller | Yes |
Detailed data
| Max units on CEX bus | 6 |
| Connector | RJ-45 female (8-pin) |
| 24 V consumption typ. | typ 150 mA |
Environmental and certification
| Temperature, Operating | 55 °C |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Features and benefits
Dimensions
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight (including base) | 700 g (1.5 lbs) |
