| Product Name: | I/O Module | Model No.: | CI858K01 |
|---|---|---|---|
| Article Number: | 3BSE018135R1 | Protocol: | ABB's DriveBus |
| Master Or Slave: | Master | Max Units On CEX Bus: | 2 |
| Transmission Speed: | 8 Mbit/s | Line Redundancy: | No |
| Highlight: | ethernet i o module,digital input output module |
||

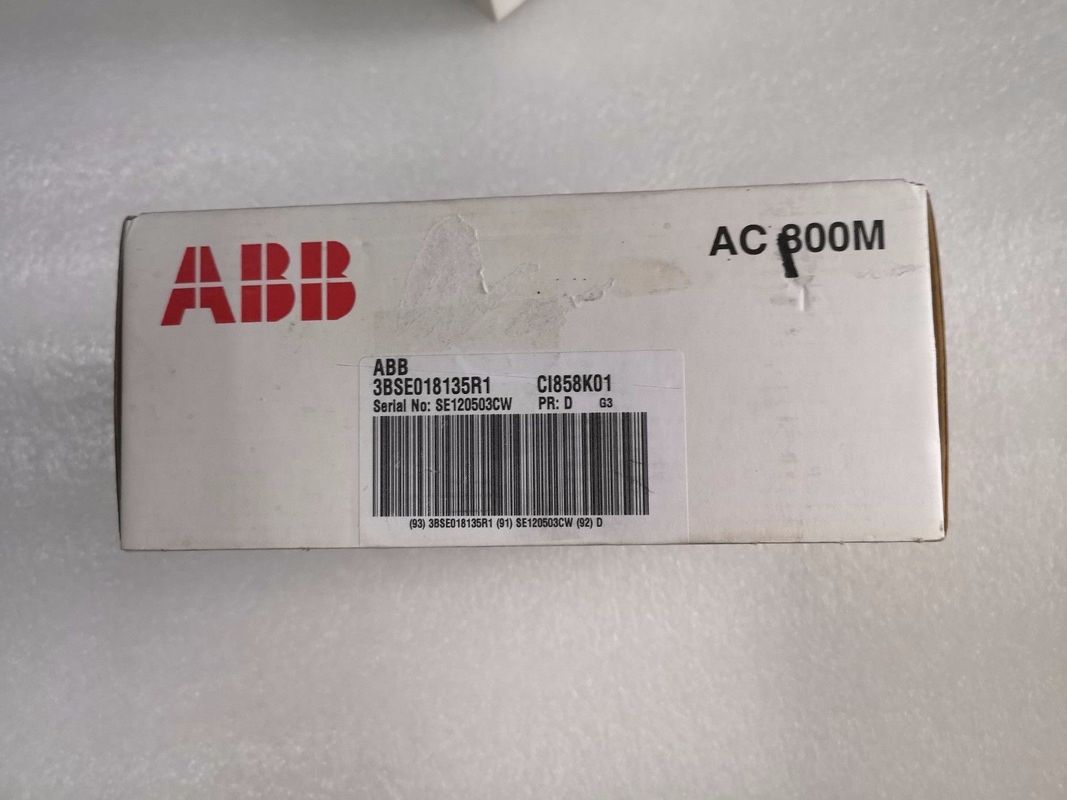

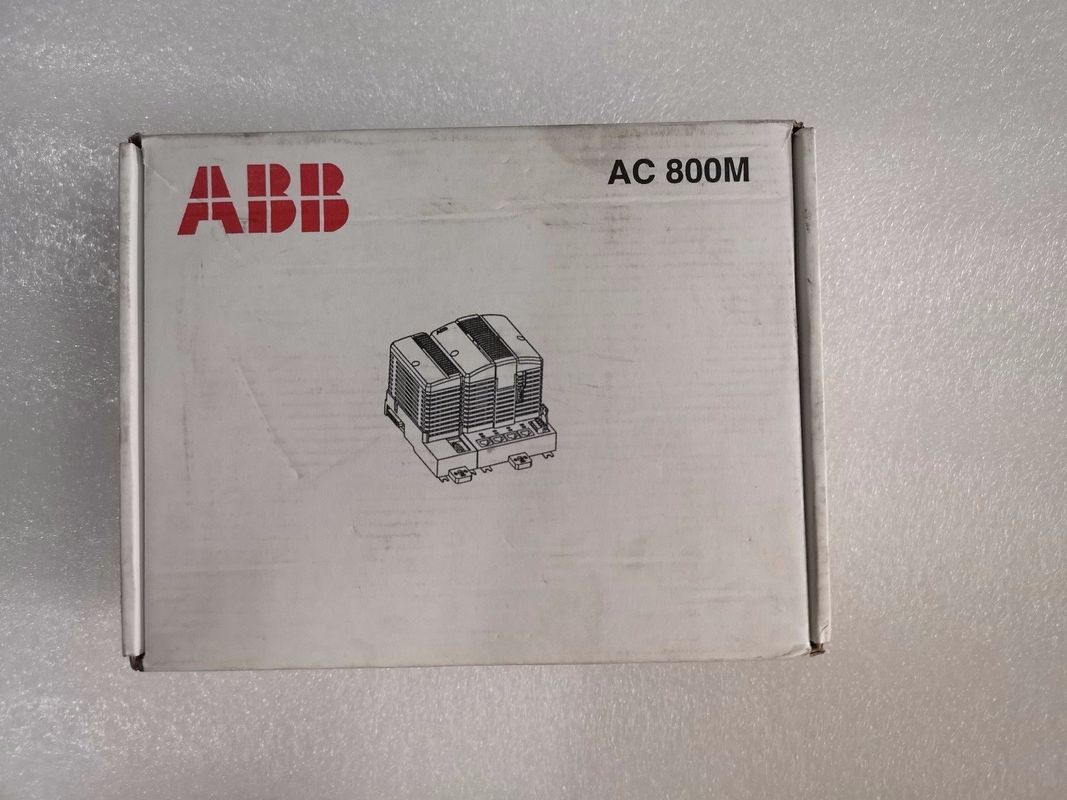

ABB AC800M CI858K01 I/O Module NEW DriveBus interface 3BSE018135R1 NEW IN STOCK
Description of CI858K01
The DriveBus protocol is used to communicate with ABB Drives and ABB Special I/O units. DriveBus is connected to the controller via a CI858 communication interface unit. The DriveBus interface is used for communication between ABB Drives and AC 800M controller.
The DriveBus communication is especially designed for sectional drive applications for ABB rolling mill drive systems, and ABB paper machine control systems. The CI858 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.
Communications
| Model No. | Protocol | Master or slave |
| CI801 | PROFIBUS DP-V1 | Slave |
| CI840A | PROFIBUS DP-V1 | Slave |
| CI853 | COMLI and MODBUS RTU | Master / Slave |
| CI854B | PROFIBUS DP-V1 | Master |
| CI855 | ABB's MasterBus 300 | Master |
| CI856 | ABB's S100 I/O | Master |
| CI857 | ABB's INSUM | Master |
| CI858 | ABB's DriveBus | Master |
| CI860 | FOUNDATION Fieldbus HSE | Master / Slave |
| CI865 | ABB's Satt I/O | Master |
| CI867 | MODBUS TCP | Master / Slave |
| CI868 | IEC 61850 | Master / Slave |
| CI869 | ABB's Advant Fieldbus 100 | Slave |
| CI871 | PROFINET IO | Master |
| CI873 | EtherNet IP / DeviceNet | Master |
| TB820V2 | ABB's Modulebus | Slave |
| TB825 (Multi Mode) | ABB's Modulebus | Slave |
| TB826 (Single Mode) | ABB's Modulebus | Slave |
| TB840A | ABB's Modulebus | Slave |
| TB842 | ABB's Modulebus | Not Applicable |
| TU807 | ABB's Modulebus | Not Applicable |
| TU840 | ABB's Modulebus | Not Applicable |
| TU841 | ABB's Modulebus | Not Applicable |
| TU846 | ABB's Modulebus | Not Applicable |
| TU847 | ABB's Modulebus | Not Applicable |
| TU848 | ABB's Modulebus | Not Applicable |
| TU849 | ABB's Modulebus | Not Applicable |
General Information
| Protocol | ABB's DriveBus |
| Article number | 3BSE018135R1 |
| Master or slave | Master |
| Transmission speed | 8 Mbit/s |
| Line redundancy | No |
| Module redundancy | No |
| Hot Swap | Yes |
| Used together with HI Controller | No |
Detailed data
| Max units on CEX bus | 2 |
| Connector | Optical |
| 24 V consumption typ. | typ 200 mA |
Environmental and certification
| Temperature, Operating | 55 °C |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| Marine certificates | ABS, BV, DNV-GL, LR, RS, CCS |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Features and benefits
Dimensions
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight (including base) | 700 g (1.5 lbs) |
