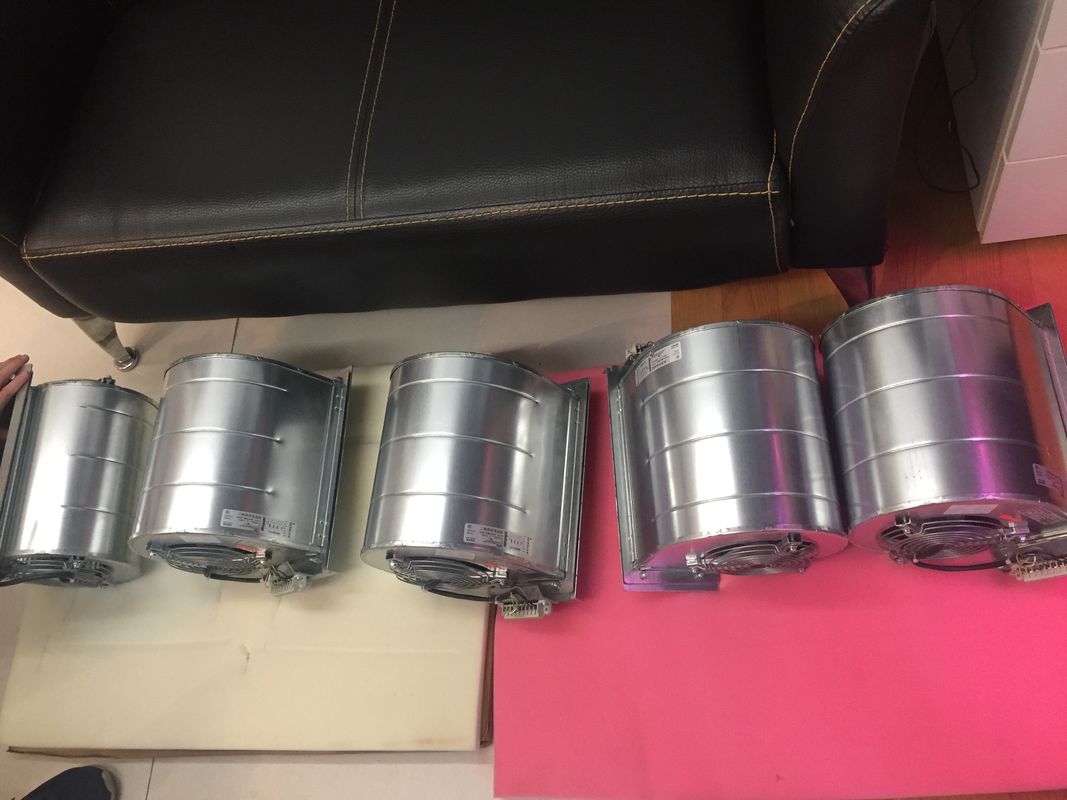

EBMPAPST Cooling FAN D2D146-BG03-14 EBM Centrifugal Fan 220V / 380V 750W
Description of Centrifugal fans
Centrifugal fans from ebm-papst are available with forward or backward curved blades. The
outstanding feature of the external rotor motors is their compact, flat design, which results from
integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll
housing, while centrifugal fans are shipped without scrolls.
All the facts at a glance:
– AC and EC centrifugal fans with forward-curved blades
– “RadiCal” AC and EC low-pressure fans
– “RadiFit” as EC system solution
– “RadiPac” and “RadiFit” EC medium-pressure fans
– Compact design with external rotor motor technology
– Comprehensive series for every application
– 100% speed-controlled through analogue or serial interface
– High efficiency through use of GreenTech EC technology
– Quiet operation thanks to optimised flow regulation and ingenious commutation of the EC motor
– Easy commissioning with components matched to each other: control/motor/fan
– Extensive range of accessories
Technical values
| Voltage |
85-480 VAC, 50/60 Hz
12, 24, 48 and 110 VDC |
| Air volume |
-30 000 m3/h |
| Power input |
1-12 000 W |
| Operative range: |
up to 2 000 Pa |
How to select your ebm-papst product
A.Solutions for ventilation offered by ebm-papst
In the field of ventilation, ebm-papst offers the perfect solution for a vast number of applications. Depending on motor, impeller and control technology, there is almost no limit to the number of possible combinations, thus making sure you can find the best solution for your application.
B.Criteria for selection
When selecting a fan for a specific application, these parameters play an
important role:
– Air flow with given back pressure
– Voltage supply, divided into DC and AC voltage (1~,3~)
– Noise generation
– Efficiency
– Available mounting space
C.Selecting a fan
The following diagram shows the range of characteristic curves for the most important fan designs and serves as a helpful tool in preselecting a design on the basis of air flow and back pressure.
Packaging & Delivery
Packaging Details
Cartons
Delivery Time
Whithin 3-5 days
