NEW ABB AC800M Controller PM856AK01 3BSE066490R1 CPU board I/O Module

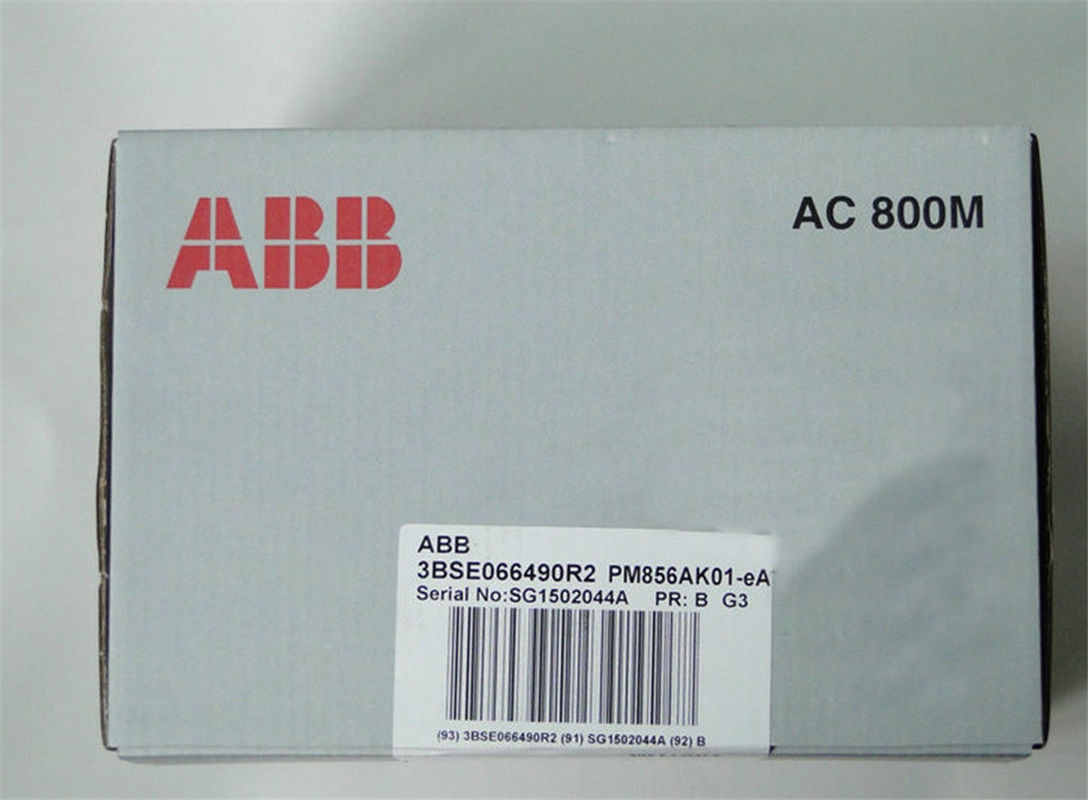

Large Image :  NEW ABB AC800M Controller PM856AK01 3BSE066490R1 CPU board I/O Module

Product Details:

Brand Name: ABB
Certification: CE
Model Number: PM856AK01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: I/O Module Model No.: PM856AK01
Article Number: 3BSE066490R1 Redundancy: No
High Integrity: No Clock Frequency: 24 MHz
Performance, 1000 Boolean Operations: 0.46 Ms Performance: 0.46 Ms
High Light:

ethernet i o module

,

plc i o modules

NEW ABB AC800M Controller PM856AK01 3BSE066490R1 CPU board I/O Module


Description of PM856AK01

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.
The base plate of the PM856A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool.
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.


General Information


Article number3BSE066490R1 (PM856AK01)
RedundancyNo
High IntegrityNo
Clock Frequency24 MHz
Performance, 1000 boolean operations0.46 ms
Performance0.46 ms
Memory16 MB (from 800xA 5.1 FP4)
RAM available for application10.337 MB (from 800xA 5.1 FP4)
Flash memory for storageYes



Detailed data


Processor typeMPC860
Switch over time in red. conf.NA
No. of applications per controller32
No. of programs per application64
No. of diagrams per application128
No. of tasks per controller32
Number of different cycle times32
Cycle time per application programsDown to 1 ms
Flash PROM for firmware storage2MB
Power supply24 V d.c. (19.2-30 V d.c.)
Power consumption +24 V typ/max180 / 300 mA
Power dissipation typ.4.32 W (7.2 W max)
Redundant power supply status inputYes
Built-in back-up batteryLithium, 3.6 V
Real-time clock stability100 ppm (approx. 1 h/year)
Clock synchronization1 ms between AC 800M controllers by CNCP protocol
Event queue in controller per OPC clientUp to 3000 events
AC 800M transm. speed to OPC server36-86 events/sec ,113-143 data messages/sec
Comm. modules on CEX bus12
Supply current on CEX busMax 2.4 A
I/O clusters on Modulebus with non-red. CPU1 electrical, 7 optical
I/O clusters on Modulebus with red. CPUNA
I/O capacity on ModulebusMax 96 I/O modules
Modulebus scan rate0 - 100 ms (actual time depending on number of I/O modules)
Supply current on Electrical Modulebus24 V : max 1.0 A
5 V : max 1.5 A
Ethernet channels2
Ethernet interfaceEthernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole)
Control Network protocolMMS (Manufacturing Message Service) and IAC (Inter Application Communication)
Recommended Control Network backbone100 Mbit/s switched Ethernet
RS-232C interface2 (one general, 1 for service tool)
RS-232C interface (COM3) (non red. only)RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support
RS-232C interface (COM4) (non red. only)RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support


Controllers


BC810K02BC820K02PM851AK01
PM858K02PM860AK01PM862K01
PM865K02SM811 (for PM865)PM866AK01
PM856AK01PM858K01PM862K02
PM865K01PM866AK02PM867K01
SM812 (for PM867)PM891K01PM891K02



Environmental and certification


Temperature, Operating+5 to +55 °C (+41 to +131 °F)
Temperature, Storage-40 to +70 °C (-40 to +158 °F)
Temperature changes3 °C/minutes according to IEC/EN 61131-2
Altitude2000 m (6 562 ft) according to IEC/EN 61131-2
Pollution degreeDegree 2 according to IEC/EN 61131-2
Corrosion protectionG3 compliant to ISA 71.04
Relative humidity5 to 95 %, non-condensing
Emitted noise< 55 dB (A)
Vibration10 < f < 50 Hz: 0.0375 mm amplitude, 50 < f < 150 Hz: 0.5 g acceleration, 5 < f < 500 Hz: 0.2 g acceleration
Rated Isolation Voltage500 V a.c.
Dielectric test voltage50 V
Protection classIP20 according to EN 60529, IEC 529
Emission & ImmunityEN 61000-6-4, EN 61000-6-2
Environmental conditionsIndustrial
CE- markingYes
Electrical SafetyEN 50178, IEC 61131-2, UL 508
Hazardous locationcULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
Marine certificatesABS, BV, DNV-GL, LR, RS
TUV ApprovalNo
RoHS complianceEN 50581:2012
WEEE complianceDIRECTIVE/2012/19/EU



Features and benefits

    • Reliability and simple fault diagnosis procedures
    • Modularity, allowing for step-by-step expansion
    • IP20 Class protection without the requirement for enclosures
    • The controller can be configured with 800xA control builder
    • The controller has full EMC certification
    • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)


    Dimensions


    Height186 mm (7.3 in.)
    Width119 mm (4.7 in.)
    Depth135 mm (5.3 in.)
    Weight1100 g (2.4 lbs)
