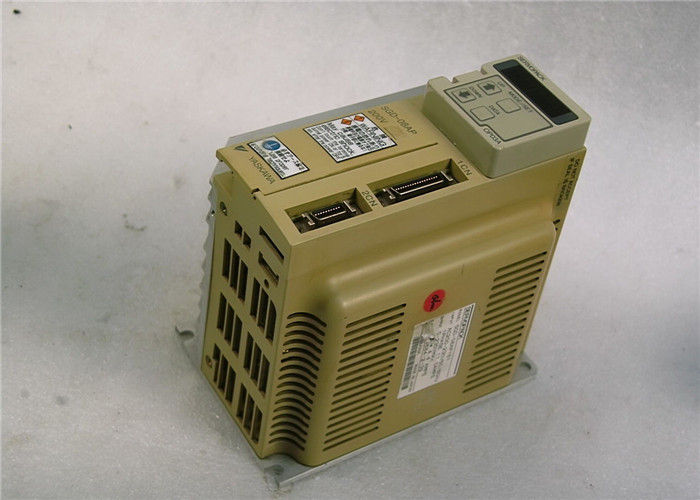

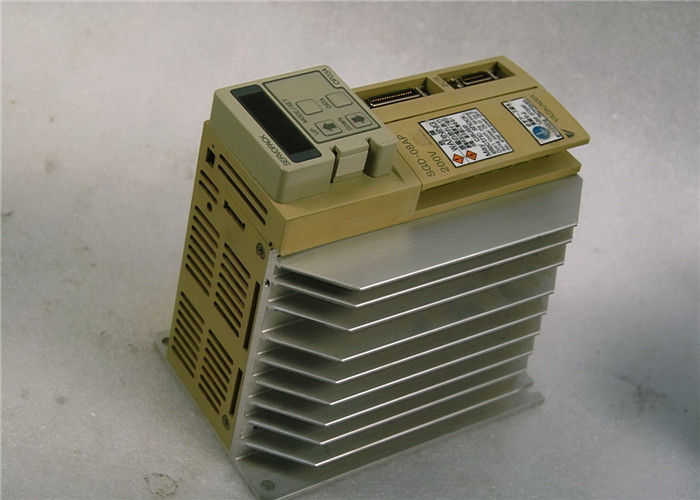

Electric Industrial 750W YASKAWA SERVOPACK Input 200-230V DRIVER MOTOR SGD-08APY61

Electric Industrial 750W YASKAWA SERVOPACK Input 200-230V DRIVER MOTOR SGD-08APY61

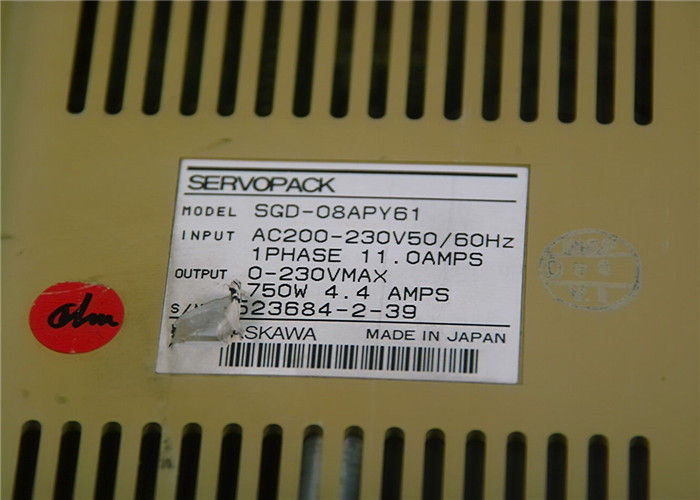

SEPCIFICATIONS

Brand Name:Yaskawa
Model Number:SGD-08APY61
Input Voltage:200-230V
Input Frequency:50/60HZ
Input PH : 1
Input AMPS:11.0
Series : Sigma 2 (Σ-II Series)
Output Power : 750W
Output Voltage: 0-200V
Output AMPS:4.4
Temperture: 0-55℃
Place of Origin:Japan
Efficiency:IE 1

Safety Information

The following conventions are used to indicate precautions in this manual. Failure toheed precautions provided in this manual can result in serious or possibly even fatalinjury or damage to the products or to related equipment and systems.WARNINGCAUTIONPROHIBITEDMANDATORYIndicates precautions that, if not heeded, couldpossibly result in loss of life or serious injury.Indicates precautions that, if not heeded, could resultin relatively serious or minor injury, damage to theproduct, or faulty operation.In some situations, the precautions indicated couldhave serious consequences if not heeded.Indicates prohibited actions that must not beperformed. For example, this symbol would be used toindicate that fire is prohibited as follows:Indicates compulsory actions that must be performed.For example, this symbol would be used as follows toindicate that grounding is compulsory:

Coupling + Ball Screw

When the power transmission ratio is 1 : 1, a coupling is useful because it has no play. This drive system is widely used for machining tools. Timing Belt + Trapezoidal Screw Thread A timing belt is a coupling device that allows the power transmission ratio to be set freely and that has no play.

A trapezoidal screw thread does not provide excellent positioning accuracy, so can be treated as a minor coupling device.

To develop an excellent servo system, it is important to select a rigid drive system that has no play.

Configure the controlled system by using an appropriate drive system for the control purpose.

Drive system

Also called a drive mechanism.

A drive system connects an actuator (such as a servomotor) to a controlled system and serves as a mechanical control component that transmits torque to the controlled system, orientates the controlled system, and converts motion from rotation to linear motion and vice versa.
