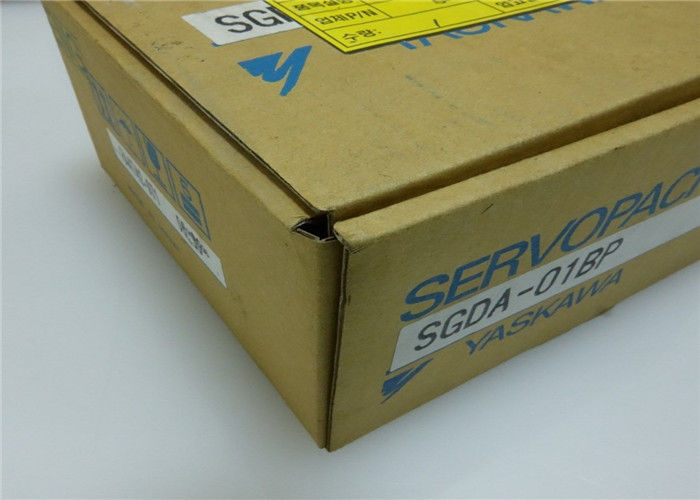

YASKAWANew surplus Input 100-115V 100W DRV-I-785=3L44 SERVOPACK SGDA-01BP

YASKAWANew surplus Input 100-115V 100W DRV-I-785=3L44 SERVOPACK SGDA-01BP

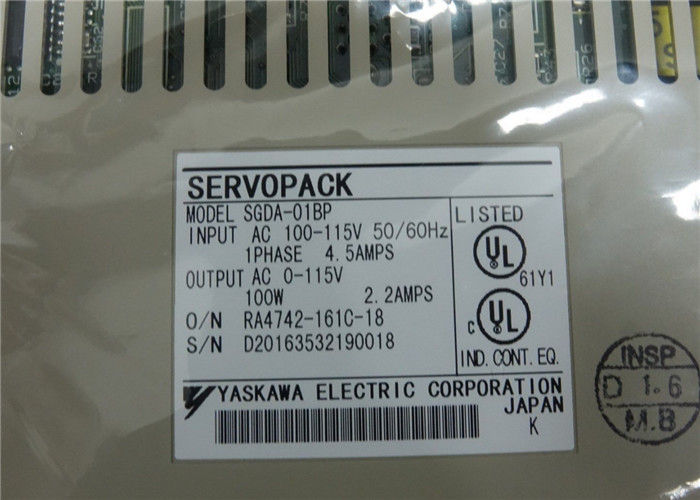

SEPCIFICATIONS
SGDA-01BP
• 100 W (0.13HP) Rated Capacity
• 100-115 V AC Input
• 115 V Max Output
• Position Control (Digital Input)


Features
Compact Design
Easy Operation
Simple Wiring
Improved Environmental Resistance

Description
The Yaskawa SGDA Servopack features superior functions and performance. Its compact design allows a volume ratio approximately 1/4 that of the conventional servo amplifier model. The SGDA features an auto-tuning function, JOG operation, various monitoring functions, and a PC monitoring function. It is also compatible with incremental encoders or absolute encoder feedback. The servo amplifier circuit board has been coated with varnish to improve environmental resistance.





SGDA-02BP

SGDA-02BS

SGDA-02VP

SGDA-03BP

SGDA-03BP+SGMP-03B312

SGDA-03BPY122

SGDA-03SP

SGDA-04AH

SGDA-04AP

SGDA-04APP

SGDA-04AS

SGDA-04AS+SGM-04A3NT12

SGDA-04ASP

SGDA-04BS

SGDA-04VP

SGDA-04VP

SGDA-04VS

SGDA-05ADG+SGMG-05A2A

SGDA-08AP

SGDA-08APP

SGDA-08APPY128

SGDA-08AS

SGDA-08ASP

SGDA-08ASP SGDA-08AS

SGDA-08VP

SGD-A3AN

SGD-A5AN

SGD-A5BH

SGDA-A3AP

SGDA-A3BPM

SGDA-A3BS

SGDA-A3BS

SGDA-A3CPY14

SGDA-A3VP

SGDA-A3VS

SGDA-A5AP

SGDA-A5AS

SGDA-A5ASY109

SGDA-A5BP

SGDA-A5BS

SGDA-A5VP

SGDA-A5VPY197








Servomotor

(a) DC Servomotor and AC Servomotor

Servomotors are divided into two types: DC servomotors and AC servomotors.

DC servomotors are driven by direct current (DC). They have a long history. Up until the 1980s, the term “servomotor” used to imply a DC servomotor.

From 1984, AC servomotors were emerging as a result of rapid progress in microprocessor technology. Driven by alternating current (AC), AC servomotors are now widely used because of the following
advantages:

• Easy maintenance: No brush

• High speed: No limitation in rectification rate


Note however that servomotors and Servopacks use some parts that are subject to mechanical wear or aging. For preventive maintenance, inspect and replace parts at regular intervals. For details, refer to Chapter 6 Inspection, Maintenance, and Troubleshooting.



(b) AC Servomotor

AC servomotors are divided into two types: synchronous type and induction type. The synchronous type is more commonly used.

For a synchronous type servomotor, motor speed is controlled by changing the frequency of alternating current.

A synchronoustype servomotor provides strong holding torque when stopped, so this type is ideal when precise positioning is required. Use this type for a servo mechanism for position control. The following figure illustrates the structure of a synchronous type servomotor:
