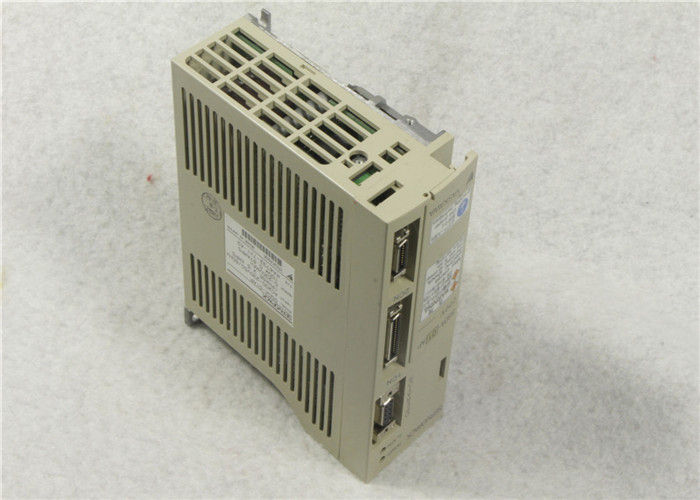

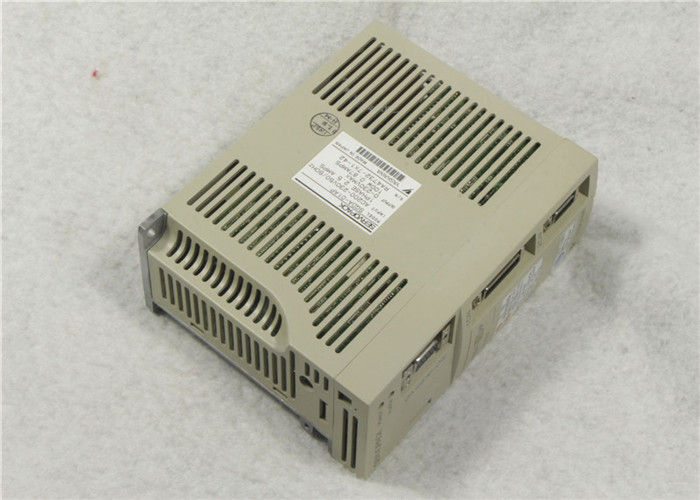

Industrial Servo Drives Input 2.5AMPS Yaskawa Servopack 100W SGDA-01VP
Quick Details
SGDA-01VP
• 100 W (0.13HP) Rated Capacity
• 200-230 V AC Input
• 230 V Max Output
• Position Control (Digital Input)
Features
Compact Design
Easy Operation
Simple Wiring
Improved Environmental Resistance
Description
The Yaskawa SGDA Servopack features superior functions and performance. Its compact design allows a volume ratio approximately 1/4 that of the conventional servo amplifier model. The SGDA features an auto-tuning function, JOG operation, various monitoring functions, and a PC monitoring function. It is also compatible with incremental encoders or absolute encoder feedback. The servo amplifier circuit board has been coated with varnish to improve environmental resistance.
Similar Products
SGDA-02VP
SGDA-03BP
SGDA-03BP+SGMP-03B312
SGDA-03BPY122
SGDA-03SP
SGDA-04AH
SGDA-04AP
SGDA-04APP
SGDA-04AS
SGDA-04AS+SGM-04A3NT12
SGDA-04ASP
SGDA-04BS
SGDA-04VP
SGDA-04VP
SGDA-04VS
SGDA-05ADG+SGMG-05A2A
SGDA-08AP
SGDA-08APP
SGDA-08APPY128
SGDA-08AS
SGDA-08ASP
SGDA-08ASP SGDA-08AS
SGDA-08VP
SGD-A3AN
SGD-A5AN
SGD-A5BH
SGDA-A3AP
SGDA-A3BPM
SGDA-A3BS
SGDA-A3BS
SGDA-A3CPY14
SGDA-A3VP
SGDA-A3VS
SGDA-A5AP
SGDA-A5AS
SGDA-A5ASY109
SGDA-A5BP
SGDA-A5BS
SGDA-A5VP
SGDA-A5VPY197
Warning
• Never touch any rotating motor parts while the motor is running. Failure to observe this warning may result in injury.
• Before starting operation with a machine connected, make sure that an emergency stop can be applied at any time. Failure to observe this warning may result in injury.
• Never touch the inside of the SERVOPACKs. Failure to observe this warning may result in electric shock.
• Do not touch terminals for five minutes after the power is turned OFF. Residual voltage may cause electric shock.
• Do not touch terminals for five minutes after voltage resistance test. Residual voltage may cause electric shock.
• Follow the procedures and instructions for trial operation precisely as described in this manual. Malfunctions that occur after the servomotor is connected to the equipment not only damage the equipment, but may also cause an accident resulting in death or injury.
• The multiturn limit value must be changed only for special applications. Changing it inappropriately or unintentionally can be dangerous.
• If the Multiturn Limit Disagreement alarm (A.CC) occurs, check the setting of parameter Pn205 in the SERVOPACK to be sure that it is correct. If Fn013 is executed when an incorrect value is set in Pn205, an incorrect value will be set in the encoder. The alarm will disappear even if an incorrect value is set, but incorrect positions will be detected, resulting in a dangerous situation where the machine will move to unexpected positions.
• Do not remove the front cover, cables, connectors, or optional items while the power is ON. Failure to observe this warning may result in electric shock.
• Do not damage, press, exert excessive force or place heavy objects on the cables. Failure to observe this warning may result in electric shock, stopping operation of the product, or burning.
• Provide an appropriate stopping device on the machine side to ensure safety. A holding brake for a servomotor with brake is not a stopping device for ensuring safety. Failure to observe this warning may result in injury.
• Do not come close to the machine immediately after resetting momentary power loss to avoid an unexpected restart. Take appropriate measures to ensure safety against an unexpected restart. Failure to observe this warning may result in injury.
• Connect the ground terminal to electrical codes (ground resistance: 100 Ω or less). Improper grounding may result in electric shock or fire.
Standard support for four different types
MECHATROLINK- communications reference
MECHATROLINK- communications reference
Analog voltage and pulse train reference
Command option attachable type
Easy use with applications for semiconductors and LCD manufacturing equipment
Note: SEMI F47 Standards: Specification for Semiconductor Processing Equipment Voltage Sag Immunity
Compliant with SEMI F47 standards for three-phase, 200-VAC SERVOPACKs
Extensive variety of motors to match any machine
Medium-inertia servomotors Improved control stability
Low-inertia servomotors High-speed acceleration and deceleration
OptionModule
Motor line-up to handle a wide range of markets and applications
Selection of servo actuators
Support for direct drive servomotors,linear servomotors, and linear sliders
