MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives 3000 RPM 50W

Name: MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives 3000 RPM 50W
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MBDHT2510E
Price: 10000 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MBDHT2510E

Detail Information

Place of Origin:

Japan

Brand Name:

Panasonic

Certification:

Model Number:

MBDHT2510E

Brand:

Panasonic

Model Number:

MBDHT2510E

Country Of Origin:

Japan

Type:

Servo Motor

Power - Rated:

50W

Voltage - Rated:

100, 200VAC

RPM:

3000 RPM

Weight:

0.705 Lb (319.78g)

Highlight:

High Light

Highlight:

electric servo drive

ac servo drive

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

NEW AND ORIGINAL

Delivery Time:

3-5DAYS

Payment Terms:

T/T, Western Unionm,PAYPAL

Supply Ability:

1000

Product Description

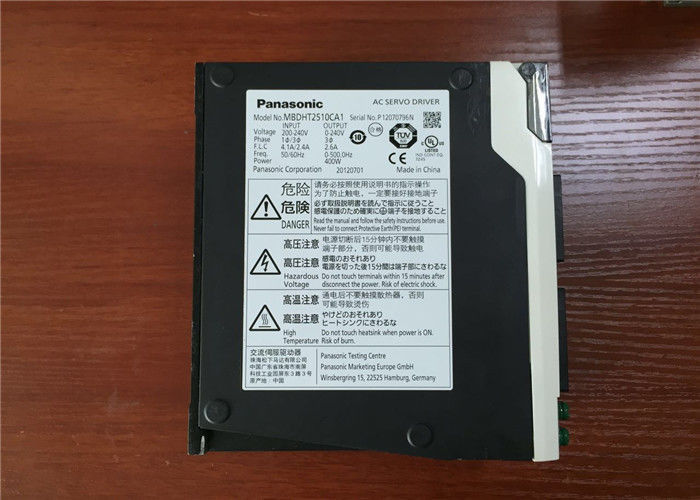

MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives

MBDHT2510E Description

The Panasonic MBDHT2510E is a 400W AC servo drive belonging to the MINAS A5E series (B‑frame, pulse‑train only, no safety function). It is a compact, high‑performance servo amplifier designed for precise motion control in industrial automation. This drive is engineered to drive Panasonic MINAS A5 series servo motors (e.g., MHMD042G1U) and supports position, internal speed, and mixed control modes. It features a USB port for PC‑based parameter setup and monitoring, making it ideal for small‑to‑medium automation machinery requiring accurate positioning and smooth motion.

MBDHT2510E Key Features

High‑precision control: 2.3 kHz frequency response and 20‑bit incremental encoder feedback (1,048,576 pulses/rev) for ultra‑accurate positioning.
Flexible control modes: Supports position control, internal velocity command, and position/internal velocity switching.
Compact design: B‑frame dimensions (55×150×130 mm) and 1.0 kg weight for easy cabinet integration.
User‑friendly setup: USB communication interface for PC parameter configuration and real‑time status monitoring.
Robust I/O: 10 general‑purpose inputs, 6 general‑purpose outputs, 2 analog monitor outputs, and pulse I/O for system connectivity.
Industrial reliability: Designed for continuous operation in harsh factory environments with strong anti‑interference performance.
No built‑in regenerative resistor: Requires external resistor for regenerative braking applications.
Wide power compatibility: Accepts single/three‑phase 200–240 VAC (±10%/–15%) 50/60 Hz input.

MBDHT2510E Materials & Applications

Materials

Housing: High‑strength, flame‑retardant engineering plastic with metal mounting brackets for durability and heat dissipation.
Internal components: Industrial‑grade printed circuit boards (PCBs), high‑reliability IGBT power modules, optocouplers, and connectors.
Surface treatment: Anti‑static, dust‑resistant, and oxidation‑resistant finishes for long‑term industrial use.

Typical Applications

CNC machinery: Small CNC milling machines, engravers, and lathes.
Packaging equipment: Labeling machines, filling machines, and sealing machines.
Semiconductor/electronic manufacturing: Bonding machines, wire cutters, and assembly robots.
Printing & textile machinery: High‑precision feeding and positioning systems.
Automation lines: Conveyors, pick‑and‑place units, and precision positioning stages.

MBDHT2510E Important Parameters

Parameter	Specification
Part Number	MBDHT2510E
Series	MINAS A5E
Rated Output Power	400 W
Frame Size	B‑Frame
Control Modes	Position control / Internal velocity command / Position/Internal velocity switching
Input Power (Main Circuit)	Single/Three‑phase 200–240 VAC, ±10%/–15%, 50/60 Hz
Input Power (Control Circuit)	Single‑phase 200–240 VAC, ±10%/–15%, 50/60 Hz
Max. Output Current	15 A
Current Detector Rating	10 A
Frequency Response	2.3 kHz
Encoder Feedback	20‑bit incremental (1,048,576 resolution), 5‑wire serial
Communication Interface	USB (for PC parameter setting/monitoring)
I/O Configuration	10×general inputs, 6×general outputs, 2×analog outputs, pulse I/O
Regeneration	No built‑in regenerative resistor (external only)
Dimensions (W×H×D)	55 × 150 × 130 mm
Weight	1.0 kg
Safety Function	Not equipped
Operating Temperature	0–45 °C (non‑condensing)
Protection Level	IP20 (enclosure‑mounted)
