Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 220（V） | Speed Response Frequency: | 10（KHz） |
|---|---|---|---|
| Power: | 2（KW） | Part Number: | MR-J2S-40A-PY091 |
| Brand: | Mitsubishi | Model: | MR-J2S-40A-PY091 |
| High Light: | servo drive amplifier,linear servo amplifier |
||

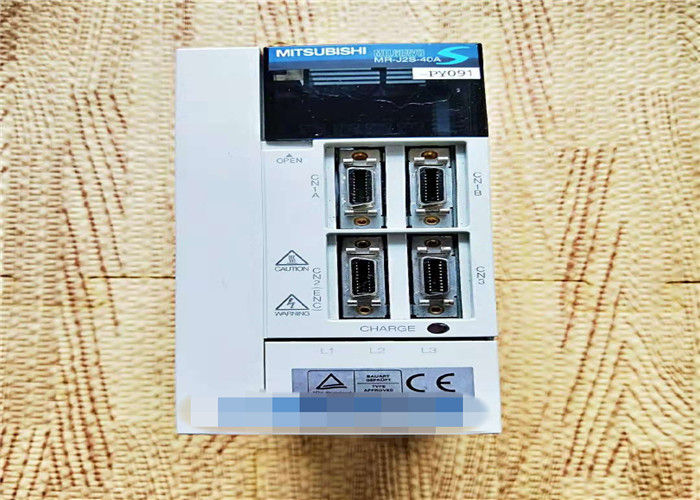

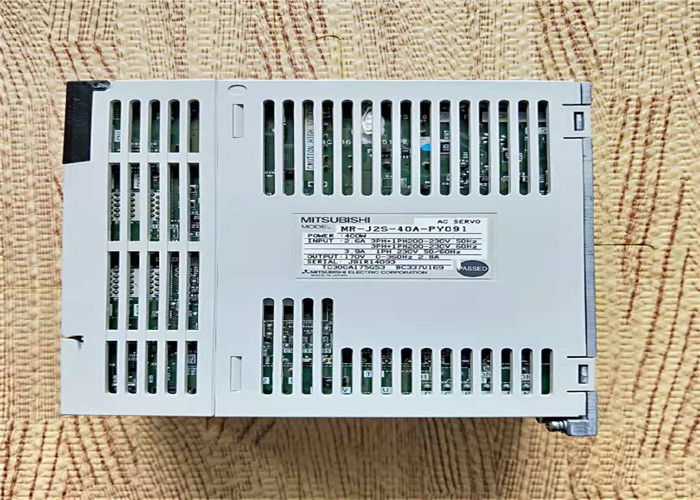

Mitsubishi DRIVE AC Servo Amplifier J2-Super Series MR-J2S-40A-PY091
| Converter unit model | — | |||||||
| Servo amplifier | Voltage/frequency | 1-phase 200 to 230VAC 50/60Hz | ||||||
| Permissible voltage fluctuation | 1-phase 170 to 253VAC | |||||||
| Control circuit power supply | Permissible frequency fluctuation | ±5% maximum | ||||||
| Power consumption (W) | 50 | |||||||
| 3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz (Note 2) | ||||||||
| Main circuit power supply | Voltage/frequency (Note 1) | |||||||
| Permissible voltage fluctuation | 3-phase 200 to 230VAC: 170 to 253VAC 1-phase 230VAC: 207 to 253VAC | |||||||
| Permissible frequency fluctuation | ±5% maximum | |||||||
| Control system | Sine-wave PWM control/current control system | |||||||
| Dynamic brake | Built-in (Note 3) | |||||||
| Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection | ||||||||
| Safety features | ||||||||
| Maximum input pulse frequency | 500kpps (when using differential receiver), 200 kpps (when using open collector) | |||||||
| Positioning feedback pulse | Resolution per encoder/servo motor rotation: 131072 p/rev | |||||||
| Command pulse multiple | Electronic gear A/B multiple, A: 1 to 65535 or 131072, B: 1 to 65535 1/50 < A/B < 500 | |||||||
| Position control mode | Positioning complete width setting | 0 to ±10000 pulses (command pulse unit) | ||||||
| Excess error | ±2.5 rotations | |||||||
| Torque limit | Set by parameters or external analog input (0 to +10VDC/maximum torque) | |||||||
| Speed control range | Analog speed command 1:2000, internal speed command 1:5000 | |||||||
| Analog speed command input | 0 to ±10VDC/rated speed (Note 4) | |||||||
| Speed control mode | ±0.01% maximum (load fluctuation 0 to 100%) 0% (power fluctuation ±10%) | |||||||
| Speed fluctuation rate | ±0.2% maximum (ambient temperature 25°C±10°C [77°F±50°F]), when using analog speed command | |||||||
| Torque limit | Set by parameters or external analog input (0 to +10VDC/maximum torque) | |||||||
| Torque control mode | Analog torque command input | 0 to ±8VDC/maximum torque (input impedance 10 to 12kW) | ||||||
| Speed limit | Set by parameters or external analog input (0 to ±10VDC/rated speed) | |||||||
| Structure | Self-cooling open (IP00) | |||||||
| Ambient temperature | 0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing) | |||||||
| Ambient humidity | 90% RH maximum (non condensing), storage: 90% RH maximum (non condensing) | |||||||
| Environ- ment | Atmosphere | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust | ||||||
| Elevation | 1000m (3280ft) or less above sea level | |||||||
| Vibration | 5.9m/s2 maximum | |||||||
| 0.7 | 0.7 | 1.1 | 1.1 | 1.7 | 1.7 | |||
| Mass (kg [lb]) | -1.5 | -1.5 | -2.4 | -2.4 | -3.7 | -3.7 | ||
Packaging Details
Unit Type: piece
Package Weight: 0.5kg (1.10lb.)
Package Size: 50cm x 30cm x 20cm (19.69in x 11.81in x 7.87in)
Packaging Details
Unit Type: piece
Package Weight: 4.0kg (8.82lb.)
Package Size: 15cm x 15cm x 15cm (5.91in x 5.91in x 5.91in)
