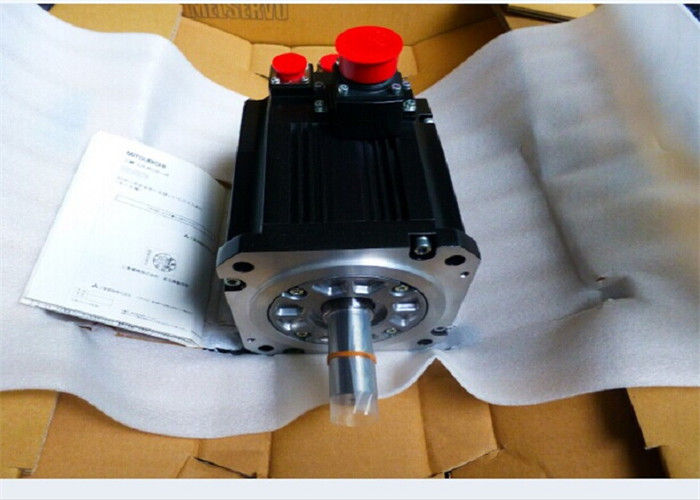

HC-SF53B 0.5KW Mitsubishi Industrial Servo Motor HC SERIES 200-230VAC 3-Phase

HC-SF53B 0.5KW Mitsubishi Industrial Servo Motor HC SERIES

HC-SF53B Description

HC-SF53B Features

• •
  Low Inertia for High Responsiveness:The low rotor inertia allows for extremely high torque-to-inertia ratio, enabling very rapid acceleration and deceleration. This minimizes cycle times in repetitive motion applications.
• •
  High-Resolution Encoder:Features a 24-bit absolute encoder (16,777,216 pulses/revolution), providing ultra-precise feedback for exceptional positioning accuracy, smooth rotation at very low speeds, and eliminating the need for a battery for absolute position backup.
• •
  Advanced Vibration Suppression:Incorporates advanced servo tuning technology that automatically suppresses mechanical vibration, leading to shorter settling times and improved machining or positioning quality.
• •
  High Efficiency Design:Constructed with high-quality materials and an optimized electromagnetic design to minimize losses, resulting in high efficiency, lower heat generation, and improved energy savings.
• •
  Robust Environmental Protection:Boasts an IP65 protection rating (dust-tight and protected against water jets from any direction), making it suitable for use in harsh environments where exposure to dust, chips, or coolants is a concern.
• •
  Keyed Shaft Design:The output shaft includes a keyway for a positive-lock connection to the load, ensuring reliable torque transmission without slippage.

HC-SF53B Material & Applications

• •
  Material:The motor housing is typically a high-strength aluminum alloy. Internal components include high-grade silicon steel laminations, copper windings, and precision bearings. The shaft is made of hardened steel for durability.
• •
  Primary Applications:
  • •
    Industrial Robots and Automated Guided Vehicles (AGVs)
  • •
    CNC Machine Tools (e.g., small machining centers, lathes)
  • •
    Precision Packaging Machinery
  • •
    Semiconductor and Electronic Component Manufacturing Equipment
  • •
    Automated Assembly and Pick-and-Place Systems
  • •
    Printing and Converting Machinery

HC-SF53B Important Parameters
