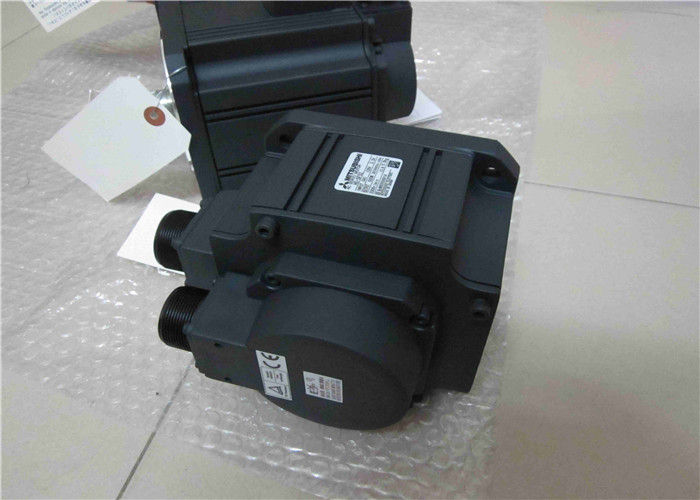

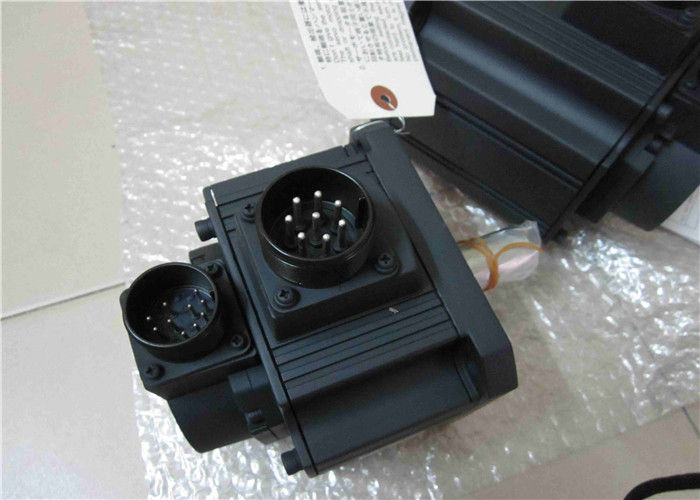

HC-PQ43NBK-UE Mitsubishi Industrial Servo Motor HC SERIES 400W 200-230VAC 3-Phase

Name: HC-PQ43NBK-UE Mitsubishi Industrial Servo Motor HC SERIES 400W 200-230VAC 3-Phase
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: HC-PQ43NBK-UE
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	HC-PQ43NBK-UE

Detail Information

Place of Origin:

Japan

Brand Name:

Mitsubishi

Certification:

Model Number:

HC-PQ43NBK-UE

Rated Output::

400W

Power Supply Specification:

200-230VAC 3-phase

Brand:

Mitsubishi Industrial Servo Motor

Model Item:

HC-PQ43NBK-UE

Plan Of Original:

Japan

Rated Current:

1.9-1000 A

Current Rating:

15.9 A

Output Speed:

3000 Rpm

Off State Voltage:

20VAC

Rated Voltage:

230-690 V

Highlight:

High Light

Highlight:

ewing machine servo motor

ac servo motor

Trading Information

Minimum Order Quantity:

Price:

negotiation

Packaging Details:

New Original Package

Delivery Time:

5-8DAYS

Payment Terms:

T/T, PAYPAL

Supply Ability:

100

Product Description

Mitsubishi Industrial Servo Motor HC SERIES HC-PQ43NBK-UE 400W

HC-PQ43NBK-UE Description

The Mitsubishi HC-PQ43NBK-UE is a high-performance, low-inertia AC servo motor designed for precision motion control. This 400W model is part of the high-performance "N" series within Mitsubishi's MR-J4 servo system lineup. Its key distinction is the integration of a 24-bit high-resolution absolute encoder, providing exceptional positional accuracy and ultra-smooth low-speed operation. The "UE" suffix indicates it is a specific regional model variant, often matching the specifications of the standard Japanese model. It is engineered for applications demanding the highest levels of speed, responsiveness, and precision, making it ideal for advanced automation equipment.

HC-PQ43NBK-UE Features

•
Ultra-High Resolution Encoder:The 24-bit absolute encoder (16,777,216 pulses/revolution) offers superior positioning accuracy and minimal cogging for incredibly smooth rotation, even at very low speeds.
•
Optimized Low Inertia:Features a specially designed rotor with low inertia, enabling extremely high responsiveness for rapid acceleration and deceleration. This reduces settling time and increases the cycle rate of machinery.
•
High Torque Density:Provides high torque relative to its frame size, ensuring powerful performance in a compact and lightweight package.
•
Vibration Suppression Control:Advanced servo algorithms in the compatible amplifier (MR-J4) can automatically suppress mechanical vibrations, leading to higher accuracy and reduced wear.
•
Robust Construction:Built with high-quality materials for reliable operation in harsh industrial environments. The IP67 rating ensures protection against dust and water immersion.
•
Integrated Electromagnetic Brake (NBK):This model includes a built-in electromagnetic brake for safety, used for holding a load in position during power-off conditions or for emergency stopping.

HC-PQ43NBK-UE Material & Primary Applications

•
Material:The motor housing is constructed from durable aluminum alloy for efficient heat dissipation. Internal components include high-grade electromagnetic steel laminations, precision copper windings, and industrial-grade bearings. The shaft is typically hardened steel.
•
Primary Applications:
- •
  High-Speed Industrial Robots (Articulated, SCARA)
- •
  Precision Semiconductor and Electronic Component Manufacturing Equipment
- •
  High-speed Packaging Machinery
- •
  Precision CNC Machinery
- •
  Automated Inspection and Testing Equipment
- •
  Material Handling and Pick-and-Place Systems

HC-PQ43NBK-UE Important Parameters

The key specifications for the Mitsubishi HC-PQ43NBK-UE servo motor are summarized in the table below.

Parameter	Specification	Notes
Model	HC-PQ43NBK-UE	"N" series, with Brake (NBK)
Rated Output	400 W	Power output under continuous duty.
Rated Torque	1.3 N·m	Torque available for continuous operation.
Maximum Torque	3.8 N·m	The peak torque available instantaneously.
Rated Speed	3000 min⁻¹ (rpm)	Speed at which rated torque/power is delivered.
Maximum Speed	5000 min⁻¹ (rpm)	The absolute maximum allowable rotational speed.
Rated Current	2.4 A	-
Maximum Current	7.2 A	-
Rotor Inertia (J)	0.85 × 10⁻⁴ kg·m²	Low inertia value for high dynamic response.
Power Rate	5.5 kW/s	(Rated Torque)² / Rotor Inertia.
Encoder	24-bitAbsolute (16,777,216 p/rev)	Provides ultra-high resolution feedback.
Brake	Integrated(Electromagnetic Brake)	For holding and safety.
Protection Class	IP67	Dust-tight and protected against immersion in water.
Insulation Class	Class B (130°C)	Standard industrial thermal rating.
Shaft	Keyway Shaft	-
Weight	Approx. 2.2 kg	Weigh
