Mitsubishi HC-PQ43BK-S1 Industrial Servo Motor HC SERIES 200-230VAC 3-Phase

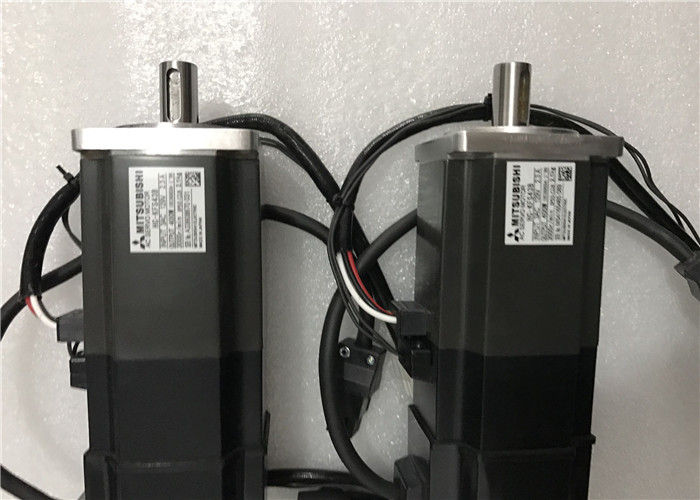

Mitsubishi HC-PQ43BK-S1 Industrial Servo Motor HC SERIES 400W BRK

HC-PQ43BK-S1 Description

HC-PQ43BK-S1 Features

• •
  High Resolution Encoder:Features a 23-bit absolute encoder (8,388,608 pulses/rev), providing exceptional positioning accuracy and stability.
• •
  Low Inertia:The low rotor inertia allows for extremely high responsiveness, enabling quick acceleration and deceleration, which is critical for high-cycle applications.
• •
  High Torque at Low Speeds:Delivers high torque even at low speeds, ensuring stable operation and precise control during slow movements.
• •
  Smooth Rotation:Advanced control technology minimizes torque ripple, resulting in very smooth rotation even at ultra-low speeds.
• •
  High Reliability:Built with high-quality materials and designed for robust performance in demanding industrial environments, ensuring long service life.
• •
  Comprehensive Safety Features:Includes built-in functions for overcurrent, overload, and overvoltage protection, safeguarding both the motor and the machinery.
• •
  Easy Installation & Maintenance:The absolute encoder system eliminates the need for battery-less absolute position backup, simplifying homing procedures after a power loss.

HC-PQ43BK-S1 Material & Primary Applications

• •
  Material:The motor housing is typically made of high-strength aluminum alloy for effective heat dissipation and lightweight construction. Internal components include high-grade electromagnetic steel, copper windings, and precision bearings.
• •
  Primary Applications:
  • •
    Industrial Robots (Articulated, SCARA, Delta)
  • •
    CNC Machinery (Lathes, Milling Machines)
  • •
    Semiconductor Manufacturing Equipment
  • •
    Packaging Machinery
  • •
    Printing Machinery
  • •
    Automated Assembly Lines
  • •
    Material Handling Systems

HC-PQ43BK-S1 Important Parameters
