Industrial Control System Industrial Servo Motor Panasonic MSMA012S1B 0.1KW

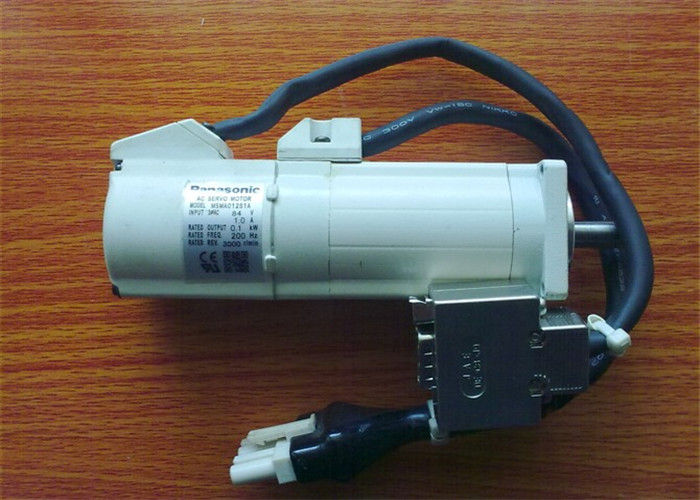

: Large Image : Industrial Control System Industrial Servo Motor Panasonic MSMA012S1B 0.1KW

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MSMA012S1B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact
Packaging Details:	NEW AND ORIGINAL
Delivery Time:	3-5DAYS
Payment Terms:	T/T, Western Unionm,PAYPAL
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Panasonic	Model Number:	MSMA012S1B
Country Of Origin:	Japan	Type:	Servo Motor
Delivery Time:	2-3days	Rated Power:	0.1kw
Supply Voltage:	220 V	Frequency::	50/60Hz
Output (W):	0.18KW-315KW
High Light:	ewing machine servo motor , ac servo motor

Industrial Control System Industrial Servo Motor Panasonic MSMA012S1B 0.1KW

Specification:

Output	0.1 KW
Rotor inertia	0.003 kg.cm²
Weight	0.56 Kg
Static friction torque(N.m)	0.29 or more

Specifications:

Item				Specifications
Input power	100 V	Main circuit		Single phase 100 V ＋10 ％－15 ％　～120 V ＋10 ％－15 ％　50 Hz / 60 Hz
	100 V	Control circuit		Single phase 100 V ＋10 ％－15 ％　～120 V ＋10 ％－15 ％　50 Hz / 60 Hz
	200 V	Main circuit	A-frame to D-frame	Single/3-phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
		Main circuit	E-frame, F-frame	Single/3-phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
		Control circuit	A-frame to D-frame	Single phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
		Control circuit	E-frame, F-frame	Single phase　200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
Environment		temperature		Ambient temperature: 0 ˚C to 55 ˚C (free from freezing) Storage temperature: –20 ˚C to 65 ˚C (Max.temperature guarantee: 80 ˚C for 72 hours free from condensation^*1)
		humidity		Both operating and storage : 20 % to 85 %RH (free from condensation^*1)
		Altitude		Lower than 1000 m
		Vibration		5.88 m/s² or less, 10 Hz to 60 Hz
Control method				IGBT PWM Sinusoidal wave drive
Encoder feedback				23-bit (8388608 resolution) absolute encoder, 7-wire serial * When using the product as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. Instead, set the parameter Pr0.15 to [1] (default).
External scale feedback				A/B phase, initialization signal defferential input. Manufacturers that support serial communication scale: Fagor Automation S.Coop., Magnescale Co., Ltd., Mitutoyo Corporation Nidec Sankyo Corporation, Renishaw plc
Parallel I/O connector	Control signal		Input	General purpose 10 inputs The function of general-purpose input is selected by parameters.
	Control signal		Output	General purpose 6 outputs The function of general-purpose output is selected by parameters.
	Analog signal		Input	3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs)
	Analog signal		Output	2 outputs (Analog monitor: 2 output)
	Pulse signal		Input	2 inputs (Photo-coupler input, Line receiver input) Both open collector and line driver interface can be connected. High speed line driver interface can be connected.
	Pulse signal		Output	4 outputs ( Line driver: 3 output, open collector: 1 output) Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal.
Communication function		USB		USB interface to connect to computers for parameter setting or status monitoring.
		RS232		1:1 communication
		RS485		1: n communication (max 31)
Safety function				A dedicated connector is provided for Functional Safety.
Front panel				(1) 5 keys (2) LED (6-digit)
Regeneration				A-frame, B,-frame: no built-in regenerative resistor (external resistor only) C-frame to F-frame: Built-in regenerative resistor (external resistor is also enabled.)
Dynamic brake				A-frame to F-frame: Built-in
Control mode				Switching among the following 7 mode is enabled, (1) Position control (2) Speed control (3) Toque control (4) Position/Speed control (5) Position/Torque control (6) Speed/Torque control (7) Full-closed control

Item			Specifications
Control input			(1) servo-ON input (2) Alarm clear input (3) Gain switch input (4) Positive direction drive inhibit input (5) Negative direction drive inhibit input (6) Forced alarm input (7) Inertia ratio switch input
Control output			(1) Servo-alarm output (2) Servo-ready output (3) External brake off output (4) At-speed output (5) Torque in-limit output (6) Zero speed detection output (7) Warning output (8) Alarm clear attribute output (9) Servo on status output
Position control	Control input		(1) Deviation counter clear input (2) Command pulse inhibit input (3) Command division/multiplication switch input (4) Anti-vibration switch input (5) Torque limit switch input (6) Control mode switch input
	Control output		(1) In-position output (2) Position command ON/OFF output
	Pulse input	Max. command pulse frequency	500 kpps (Optocoupler interface), 8 Mpps (When using line receiver input multiplied by 4)
		Input pulse signal format	Differential input. Selectable by parameter. ([1]Positive/Negative pulse [2]A/B quadrature [3]Pulse/Direction)
		Electronic gear (Division/Multiplication of command pulse)	Applicable scaling ratio: 1/1000 times to 8000 times Any value of 1 - 2³⁰ can be set for both numerator (which corresponds to encoder resolution) and denominator (which corresponds to command pulse resolution per motor revolution), but the combination has to be within the range shown above.
		Smoothing filter	Primary delay filter or FIR type filter is adaptable to the command input
	Analog input	Torque limit command input	Individual torque limit for both positive and negative direction is enabled.
	Analog input	Torque feed forward input	Analog voltage can be used as torque feed forward input.
	Two-degree-of-freedom control		Available
	Anti-vibration control		Available
	Load variation suppression function		Available
Speed control	Control input		(1) Internal command velocity selection input (2) Speed zero clamp input (3) Velocity command sign input (4) Control mode switch input
	Control output		(1) Speed coincidence output (2) Velocity command ON/OFF output
	Analog input	Velocity command input	Velocity command input with analog voltage is possible. Scale setting and command polarity vary depending on parameters. (6 V/Rated rotational speed: Default)
		Torque limit command input	Individual torque limit for both positive and negative direction is enabled.
		Torque feed forward input	Analog voltage can be used as torque feed forward input.
	Internal velocity command		Switching the internal 8 speed is enabled by command input.
	Soft-start/down function		Individual setup of acceleration and deceleration is enabled, with 0 s to 10 s/ 1000 r/min. Sigmoid acceleration/deceleration is also enabled.
	Speed zero clamp		Internal velocity command can be clamped to 0 with speed zero clamp input.
	Two-degree-of-freedom control		Available
Torque control	Control input		Speed zero clamp input, torque command sign input, control mode switch input.
	Control output		(1) Speed coincidence output (2) Speed in-limit output
	Analog input	Torque command input	Torque command input with analog voltage is possible. Scale setting and command polarity vary depending on parameters. (3 V/rated torque Default)
	Speed limit function		Speed limit value with parameter is enabled.
Full-closed control	Control input		(1) Deviation counter clear input (2) Command pulse inhibit input (3) Command division/multiplication switch input (4) Anti-vibration switch input (5) Torque limit switch input
	Control output		(1) In-position output (2) Position command ON/OFF output
	Pulse input	Max. command pulse frequency	500 kpps (Optocoupler interface), 8 Mpps (When using line receiver input multiplied by 4)
		Input pulse signal format	Differential input. Selectable by parameter. ([1]Positive/Negative pulse [2]A/B quadrature [3]Pulse/Direction)
		Electronic gear (Division/Multiplication of command pulse)	Applicable scaling ratio: 1/1000 times to 8000 times Any value of 1 - 2 ³⁰ can be set for both numerator (which corresponds to encoder resolution) and denominator (which corresponds to command pulse resolution per motor revolution), but the combination has to be within the range shown above.
		Smoothing filter	Primary delay filter or FIR type filter is adaptable to the command input
	Analog input	Torque limit command input	Individual torque limit for both positive and negative direction is enabled.
	Analog input	Torque feed forward input	Analog voltage can be used as torque feed forward input.
	Setting range of external scale division/multiplication		1/40 times to 1280 times Although ratio of the encoder pulse (numerator) and external scale pulse (denominator) can be arbitrarily set in the range of 1 to 2 ²³ for the numerator and in the range of 1 to 2 ²³ for the denominator, this product should be used within the aforementioned range.
	Two-degree-of-freedom control		Available
	Anti-vibration control		Available
Common	Auto tuning		The load inertia is identified in real time by the driving state of the motor operating according to the command given by the controlling device and set up support software “PANATERM”. The gain is set automatically in accordance with the rigidity setting.
	Division of encoder feedback pulse		Set up of any value is enabled (encoder pulses count is the max.).
	Protective function	Hard error	Over-voltage, under-voltage, over-speed, over-load, over-heat, over-current and encoder error etc.
	Protective function	Soft error	Excess position deviation, command pulse division error, EEPROM error etc.
	Alarm data trace back		Tracing back of alarm data is available

High performance (same as MINAS A5 standard drives) sMultifunctional sAttractive price-performance ratio sDesigned exclusively for positioning control s20 bits/revolution; 1.04 million pulses per revolution sMax. speed: 6000rpm sLow cogging torque sNew design; innovative core; high-precision encoder sIP67 degree of protection for all MSME-type motors M

Contact person:Suki

Email:wtl2502keji@163.com

Skype:wtl2502

Tel:+86-13268302140

The following are some of the drive models, both new and used are stocked:

MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E

Our main product:Mitsubishi,Yaskawa,Rosemount,Siemens,Emerson/Delta V,Honeywell,AB,ABB,GE/Fanuc,Yokogawa Pressure Transmitter
